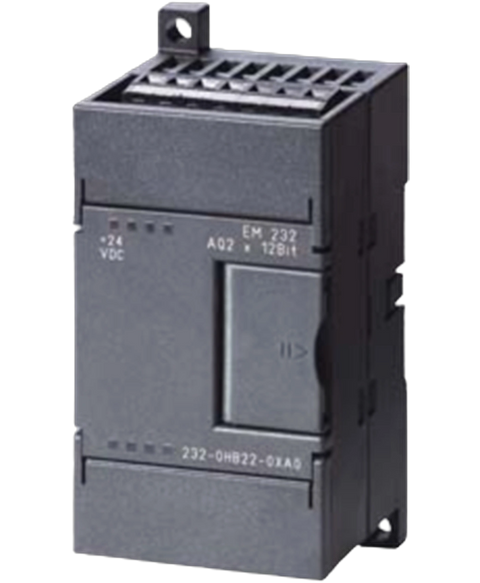

Siemens 6ES7232-0HB22-0XA0
The Siemens 6ES7232-0HB22-0XA0 is designed as an analog output module within the SIMATIC series. This model supports a considerable current output up to 20 mA and has a voltage output range from -10V to 10V.
This Siemens 6ES7232-0HB22-0XA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26801718735.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Analog Output Module |
| Product Line | SIMATIC |
| Part Number | 6ES7232-0HB22-0XA0 |
| Weight | 0.06 lbs (0.03 kg) |
| Number Of Analog Outputs | 200% |
| Minimum Output Current | 4 mA |
| Maximum Output Current | 20 mA |
| Power Loss | 2 W |
| Plug-in I/O Terminals Connection | Not Available |
| Minimum Output Voltage | -10V |
| Maximum Output Voltage | 10V |
| Displayable Conversion Value Range For Bipolar Signals | -32,000 to +32,000 |
| Displayable Conversion Value Range For Unipolar Signals | 0 to 32,000 |
| Settling Time For Voltage Output | 100 µs |
| Settling Time For Current Output | 2 ms |
| Potential Separation Analog Outputs | Not Available |
| Load Impedance with Voltage Outputs | Minimum 5 kΩ |
| Load Impedance with Current Outputs | Maximum 0.5 kΩ |
| Brand | Siemens |
