Siemens 6ES7223-1PH22-0XA0

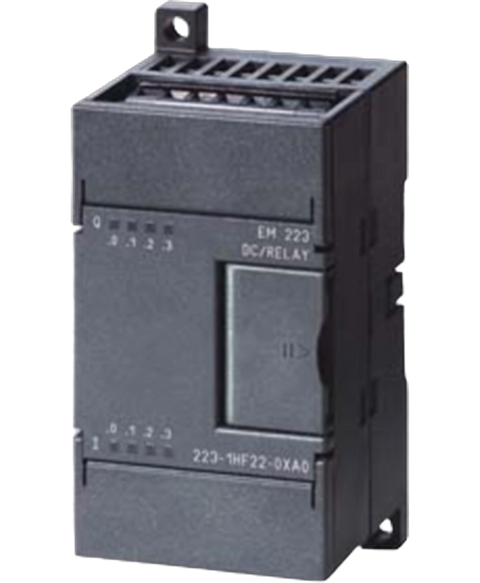

Siemens 6ES7223-1PH22-0XA0 expansion module, digital I,O.
This Siemens 6ES7223-1PH22-0XA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26801449704.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 5 V |
| permissible range, upper limit (DC) | 30 V |
| Rated value (AC) | 230 V; 24V AC to 230V AC |
| permissible range, lower limit (AC) | 5 V |
| permissible range, upper limit (AC) | 250 V |
| from external supply (24 V DC), max. | 72 mA |
| from backplane bus 5 V DC, max. | 80 mA |
| from coil current, max. | 9 mA; for each output on signal "1" |
| Power loss, typ. | 3 W |
| Number of digital inputs | 8 |
| Type of input voltage | DC |
| for signal "0" | 0 to 5 V |
| for signal "1" | 15 V DC to 30 V DC |
| for signal "1", typ. | 4 mA |
| — at "0" to "1", max. | 4.5 ms |
| Number of digital outputs | 8; Relays |
| Short-circuit protection | No |
| for signal "0", max. | 0.1 V; with 10 kOhm load |
| for signal "1", min. | L+/L1 |
| for signal "1" rated value | 2 000 mA |
| — Current per conductor/group, max. | 8 A |
| Number of operating cycles, max. | 10 000 000; mechanically 10 million, at rated load voltage 100 000 |
| — with inductive load, max. | 0.75 A; each output |
| — on lamp load, max. | 200 W; 30 W with DC, 200 W with AC |
| — with resistive load, max. | 0.75 A; each output |
| shielded, max. | 500 m |
| unshielded, max. | 150 m |
| 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 1 mA |
| Potential separation digital inputs | Yes; Optocoupler |
| between the channels, in groups of | 4 |
| Potential separation digital outputs | Yes; Relays |
| Isolation tested with | 500 V AC |
| Plug-in I/O terminals | Yes |
| Width | 71.2 mm |
| Height | 80 mm |
| Depth | 62 mm |
| Weight, approx. | 300 g |
