Siemens 6ES7223-1BH32-0XB0

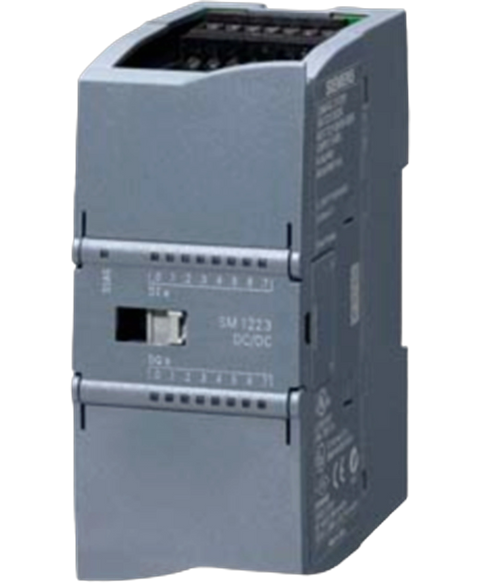

The 6ES7223-1BH32-0XB0 model is a digital input,output module from Siemens' SIMATIC series, designed for various automation tasks. It accommodates digital input and output channels, with each category supporting eight connections.
This Siemens 6ES7223-1BH32-0XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL27050638173.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | SM 1223, DI 8x24 V DC, DQ 8x24 V DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| from backplane bus 5 V DC, max. | 145 mA |
| from load voltage L+ (without load), max. | 4 mA; per channel |
| present | Yes |
| Power loss, typ. | 2.5 W |
| Number of digital inputs | 8 |
| in groups of | 21 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| — up to 40 °C, max. | 8 |
| — up to 50 °C, max. | 84 A; Current per mass |
| Type of input voltage | DC |
| for signal "0" | 5 V DC at 1 mA |
| for signal "1" | 15 V DC at 2.5 mA |
| for signal "0", max. (permissible quiescent current) | 1 mA |
| for signal "1", min. | 2.5 mA20 V DC |
| for signal "1", typ. | 4 mA |
| — parameterizable | Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of fourYes |
| shielded, max. | 500 m |
| unshielded, max. | 300 m150 m |
| Number of digital outputs | 8 |
| Short-circuit protection | No; to be provided externally |
| Limitation of inductive shutdown voltage to | L+ (-48 V) |
| with resistive load, max. | 0.5 A |
| on lamp load, max. | 5 W |
| for signal "0", max. | 0.1 V; with 10 kOhm load |
| for signal "1" rated value | 0.5 A |
| for signal "1" permissible range, max. | 0.5 A |
| for signal "0" residual current, max. | 10 µA |
| "0" to "1", max. | 50 µs |
| "1" to "0", max. | 200 µs |
| Diagnostic alarm | Yes |
| for status of the inputs | Yes |
| for status of the outputs | Yes |
| between the channels, in groups of | 21 |
| between the channels and backplane bus | 500 V AC |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 123 kg |
| — global warming potential, (during production) [CO2 eq] | 12.1 kg |
| — global warming potential, (during operation) [CO2 eq] | 111 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.434 kg |
| Fall height, max. | 0.3 m; five times, in product package |
| min. | -20 °C-40 °C |
| max. | 60 °C70 °C |
| horizontal installation, min. | -20 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -20 °C |
| vertical installation, max. | 50 °C |
| permissible temperature change | 5°C to 55°C, 3°C / minute |
| Storage/transport, min. | 660 hPa |
| Storage/transport, max. | 1 080 hPa |
| Operation at 25 ℃ without condensation, max. | 95 % |
| required front connector | Yes |
| Plastic | Yes |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 210 g |
