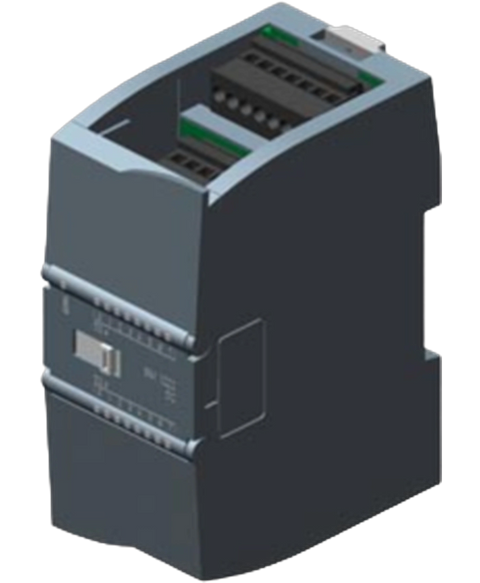

Siemens 6ES7222-1BH32-0XB0 S7-1200 digital output module, 16DO, 24VDC.
This Siemens 6ES7222-1BH32-0XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26801734104.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | SM 1222, DQ 16x24 V DC/0.5 A |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| from backplane bus 5 V DC, max. | 140 mA |
| Power loss, typ. | 2.5 W |
| Number of digital outputs | 16 |
| in groups of | 1 |
| Short-circuit protection | No; to be provided externally |
| Limitation of inductive shutdown voltage to | typ. (L+) -48 V |
| with resistive load, max. | 0.5 A |
| on lamp load, max. | 5 W |
| Rated value (DC) | 24 V |
| for signal "0", max. | 0.1 V; with 10 kOhm load |
| for signal "1", min. | 20 V DC |
| for signal "1" rated value | 0.5 A |
| for signal "0" residual current, max. | 10 µA |
| "0" to "1", max. | 50 µs |
| "1" to "0", max. | 200 µs |
| — up to 50 °C, max. | 8 A; Current per mass |
| shielded, max. | 500 m |
| unshielded, max. | 150 m |
| Diagnostic alarm | Yes |
| for status of the outputs | Yes |
| between the channels, in groups of | 1 |
| between the channels and backplane bus | 500 V AC |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 68.6 kg |
| — global warming potential, (during production) [CO2 eq] | 8.16 kg |
| — global warming potential, (during operation) [CO2 eq] | 60.7 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.334 kg |
| Fall height, max. | 0.3 m; five times, in product package |
| min. | -20 °C-40 °C |
| max. | 60 °C70 °C |
| horizontal installation, min. | -20 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -20 °C |
| vertical installation, max. | 50 °C |
| permissible temperature change | 5°C to 55°C, 3°C / minute |
| Storage/transport, min. | 660 hPa |
| Storage/transport, max. | 1 080 hPa |
| Operation at 25 ℃ without condensation, max. | 95 % |
| required front connector | Yes |
| Plastic | Yes |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 220 g |
