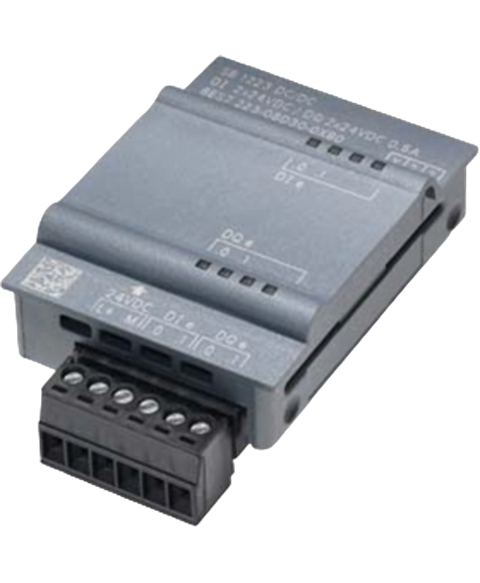

Siemens 6ES72213AD300XB0
SIMATIC S7-1200, Digital input SB 1221, 4 DI, 5V DC 200kHz, Sourcing input
This Siemens 6ES72213AD300XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL27100492099.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | SB 1221, DI 4x5 V DC 200 kHz |
| from backplane bus 5 V DC, typ. | 40 mA |
| Power loss, typ. | 1 W |
| Number of digital inputs | 4; Current-sourcing |
| in groups of | 4 |
| Rated value (DC) | 5 V |
| for signal "0" | (L+ minus 1.0 V DC) ... L+ (2.2 ... 0 mA) |
| for signal "1" | 0 V ... (L+ minus 2.0 V DC (20 ... 5.1 mA)) |
| for signal "0", max. (permissible quiescent current) | 2.2 mA |
| for signal "1", min. | 5.1 mA |
| for signal "1", typ. | 15 mA |
| — parameterizable | Yes; 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 msYes |
| shielded, max. | 50 m; shielded, twisted pair |
| for status of the inputs | Yes |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| Fall height, max. | 0.3 m; five times, in product package |
| min. | -20 °C-40 °C |
| max. | 60 °C70 °C |
| horizontal installation, min. | -20 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -20 °C |
| vertical installation, max. | 50 °C |
| Storage/transport, min. | 660 hPa |
| Storage/transport, max. | 1 080 hPa |
| Operation at 25 ℃ without condensation, max. | 95 % |
| Plastic | Yes |
| Width | 38 mm |
| Height | 62 mm |
| Depth | 21 mm |
| Weight, approx. | 35 g |
