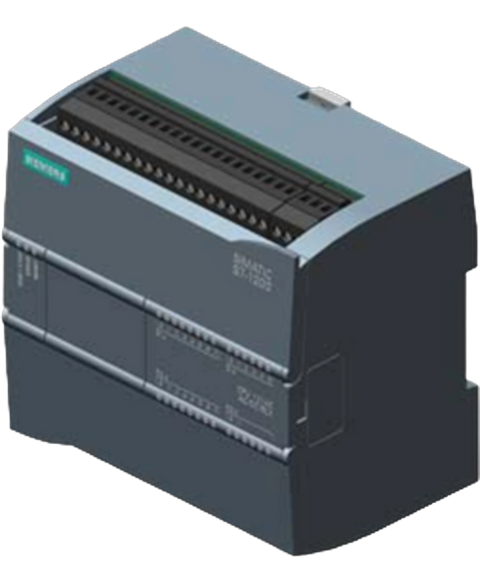

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES7214-1BG31-0XB0
Siemens 6ES7214-1BG31-0XB0 S7-1200 CPU 1214C PLC, AC,DC,relay.
This Siemens 6ES7214-1BG31-0XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL27100466917.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$619.11
(inc. GST)
In Stock
| Product type designation | CPU 1214C AC/DC/relay |
| Programming package | STEP 7 V11 SP2 or higher |
| 120 V AC | Yes |
| 230 V AC | Yes |
| permissible range, lower limit (AC) | 85 V |
| permissible range, upper limit (AC) | 264 V |
| permissible range, lower limit | 47 Hz |
| permissible range, upper limit | 63 Hz |
| Current consumption (rated value) | 100 mA at 120 V AC; 50 mA at 240 V AC |
| Inrush current, max. | 20 A; at 264 V |
| for backplane bus (5 V DC), max. | 1 600 mA; Max. 5 V DC for SM and CM |
| 24 V | Permissible range: 20.4V to 28.8V |
| Power loss, typ. | 14 W |
| integrated | 75 kbyte4 Mbyte |
| present | Yes; maintenance-freeYes |
| without battery | Yes |
| for bit operations, typ. | 0.085 µs; / instruction |
| for word operations, typ. | 1.7 µs; / instruction |
| for floating point arithmetic, typ. | 2.5 µs; / instruction |
| Number of blocks (total) | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used |
| Number, max. | Limited only by RAM for code |
| Retentive data area (incl. timers, counters, flags), max. | 10 kbyte |
| Size, max. | 8 kbyte; Size of bit memory address area |
| Inputs | 1 024 byte |
| Outputs | 1 024 byte |
| Inputs, adjustable | 1 kbyte |
| Outputs, adjustable | 1 kbyte |
| Number of modules per system, max. | 3 comm. modules, 1 signal board, 8 signal modules |
| number of expansion boards (SB, CB, BB) | 1 |
| number of signal modules (SM) | 8 |
| number of communications modules (CM) | 3 |
| Hardware clock (real-time) | Yes |
| Backup time | 480 h; Typical |
| Deviation per day, max. | 60 s/month at 25 °C |
| Number of digital inputs | 14; Integrated |
| of which inputs usable for technological functions | 6; HSC (High Speed Counting) |
| Sourcing/sinking input | Yes |
| — up to 40 °C, max. | 14 |
| Rated value (DC) | 24 V |
| for signal "0" | 5 V DC at 1 mA |
| for signal "1" | 15 V DC at 2.5 mA |
| for signal "1", typ. | 1 mA |
| — parameterizable | 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of fourYesYes; Single phase : 3 at 100 kHz & 3 at 30 kHz, differential: 3 at 80 kHz & 3 at 30 kHz |
| — at "0" to "1", min. | 0.2 ms |
| — at "0" to "1", max. | 12.8 ms |
| shielded, max. | 500 m; 50 m for technological functions500 m100 m; twisted and shielded |
| unshielded, max. | 300 m; for technological functions: No150 m |
| Number of digital outputs | 10; Relays |
| Short-circuit protection | No; to be provided externally |
| with resistive load, max. | 2 A |
| on lamp load, max. | 30 W with DC, 200 W with AC |
| "0" to "1", max. | 10 ms; max. |
| "1" to "0", max. | 10 ms; max. |
| of the pulse outputs, with resistive load, max. | 1 Hz |
| Number of relay outputs | 10 |
| Number of operating cycles, max. | mechanically 10 million, at rated load voltage 100 000 |
| Number of analog inputs | 2 |
| Voltage | Yes |
| 0 to +10 V | Yes |
| — Input resistance (0 to 10 V) | ≥100k ohms |
| Number of analog outputs | 0 |
| Resolution with overrange (bit including sign), max. | 10 bit |
| Integration time, parameterizable | Yes |
| Conversion time (per channel) | 625 µs |
| 2-wire sensor | Yes |
| Interface type | PROFINET |
| Isolated | Yes |
| automatic detection of transmission rate | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| RJ 45 (Ethernet) | Yes |
| PROFINET IO Controller | Yes |
| Supports protocol for PROFINET IO | Yes |
| PROFIsafe | No |
| PROFIBUS | Yes |
| AS-Interface | Yes |
| TCP/IP | Yes |
| ISO-on-TCP (RFC1006) | Yes |
| UDP | Yes |
| supported | Yes |
| User-defined websites | Yes |
| MODBUS | Yes |
| as server | Yes |
| as client | Yes |
| Status/control variable | Yes |
| Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| Forcing | Yes |
| Number of counters | 6 |
| Counting frequency, max. | 100 kHz |
| Frequency measurement | Yes |
| controlled positioning | Yes |
| PID controller | Yes |
| Number of alarm inputs | 4 |
| Potential separation digital inputs | 500 V AC for 1 minute |
| between the channels, in groups of | 12 |
| Potential separation digital outputs | Relays |
| between the channels | No |
| between different circuits | 500 V DC between 24 V DC and 5 V DC |
| Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 | Yes |
| — Test voltage at air discharge | 8 kV |
| — Test voltage at contact discharge | 6 kV |
| Interference immunity on supply lines acc. to IEC 61000-4-4 | Yes |
| Interference immunity on signal cables acc. to IEC 61000-4-4 | Yes |
| Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes |
| Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 | Yes |
| Limit class A, for use in industrial areas | Yes; Group 1 |
| Limit class B, for use in residential areas | Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011 |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| Marine approval | Yes |
| Fall height, max. | 0.3 m; five times, in product package |
| min. | -20 °C-40 °C |
| max. | 60 °C70 °C |
| horizontal installation, min. | -20 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -20 °C |
| vertical installation, max. | 50 °C |
| Operation, min. | 795 hPa |
| Operation, max. | 1 080 hPa95 %; no condensation |
| Storage/transport, min. | 660 hPa |
| Storage/transport, max. | 1 080 hPa |
| Installation altitude, min. | -1 000 m |
| Installation altitude, max. | 2 000 m |
| Vibration resistance during operation acc. to IEC 60068-2-6 | 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail |
| Operation, tested according to IEC 60068-2-6 | Yes |
| tested according to IEC 60068-2-27 | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms |
| SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
| — LAD | Yes |
| — FBD | Yes |
| — SCL | Yes |
| adjustable | Yes |
| Width | 110 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 455 g |
