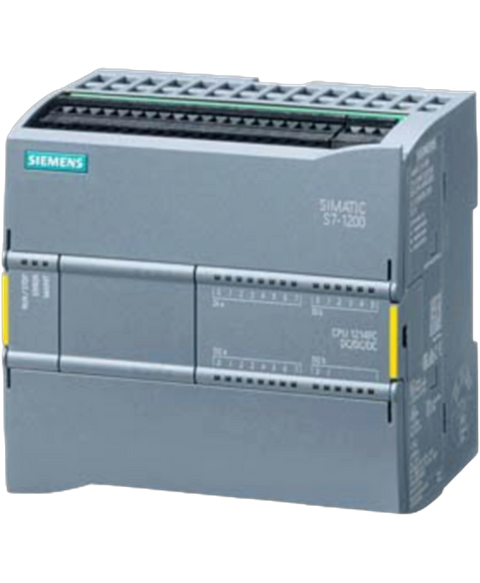

Siemens 6ES7214-1AF40-0XB0
Siemens 6ES72141AF400XB0 CPU module, 125KB, S7-1200F.
This Siemens 6ES7214-1AF40-0XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26805611809.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,069.25
(inc. GST)
In Stock
| Product type designation | CPU 1214FC DC/DC/DC |
| Firmware version | V4.7 |
| Programming package | STEP 7 V20 or higher |
| 24 V DC | Yes |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Rated value (DC) | 24 V |
| Current consumption (rated value) | 500 mA; CPU only |
| Current consumption, max. | 1 500 mA; CPU with all expansion modules |
| Inrush current, max. | 12 A; at 28.8 V |
| I²t | 0.5 A²·s |
| for backplane bus (5 V DC), max. | 1 600 mA; Max. 5 V DC for SM and CM |
| 24 V | L+ minus 4 V DC min. |
| Power loss, typ. | 12 W |
| integrated | 200 kbyte4 Mbyte |
| Plug-in (SIMATIC Memory Card), max. | with SIMATIC memory card |
| present | Yes |
| maintenance-free | Yes |
| without battery | Yes |
| for bit operations, typ. | 0.08 µs; / instruction |
| for word operations, typ. | 1.7 µs; / instruction |
| for floating point arithmetic, typ. | 2.3 µs; / instruction |
| Number of blocks (total) | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used |
| Number, max. | Limited only by RAM for code |
| Retentive data area (incl. timers, counters, flags), max. | 14 kbyte |
| Size, max. | 8 kbyte; Size of bit memory address area |
| per priority class, max. | 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB |
| Inputs, adjustable | 1 kbyte |
| Outputs, adjustable | 1 kbyte |
| Number of modules per system, max. | 3 comm. modules, 1 signal board, 8 signal modules |
| number of expansion boards (SB, CB, BB) | 1 |
| number of signal modules (SM) | 8 |
| number of communications modules (CM) | 3 |
| Hardware clock (real-time) | Yes |
| Backup time | 480 h; Typical |
| Deviation per day, max. | ±60 s/month at 25 °C |
| Number of digital inputs | 14; Integrated |
| of which inputs usable for technological functions | 6; HSC (High Speed Counting) |
| Sourcing/sinking input | Yes |
| — up to 40 °C, max. | 14 |
| for signal "0" | 5 V DC at 1 mA |
| for signal "1" | 15 V DC at 2.5 mA |
| — parameterizable | 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 msYesSingle phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz |
| — at "0" to "1", min. | 0.2 ms |
| — at "0" to "1", max. | 12.8 ms |
| shielded, max. | 500 m; 50 m for technological functions500 m100 m; twisted and shielded |
| unshielded, max. | 300 m; for technological functions: No150 m |
| Number of digital outputs | 10 |
| of which high-speed outputs | 4; 100 kHz Pulse Train Output |
| Limitation of inductive shutdown voltage to | L+ (-48 V) |
| with resistive load, max. | 0.5 A |
| on lamp load, max. | 5 W |
| for signal "0", max. | 0.1 V; with 10 kOhm load |
| for signal "1", min. | 20 V |
| for signal "1" rated value | 0.5 A |
| for signal "0" residual current, max. | 0.1 mA |
| "0" to "1", max. | 1 µs |
| "1" to "0", max. | 5 µs |
| of the pulse outputs, with resistive load, max. | 100 kHz |
| Number of relay outputs | 0 |
| Number of analog inputs | 2 |
| Voltage | Yes |
| 0 to +10 V | Yes |
| — Input resistance (0 to 10 V) | ≥100k ohms |
| Number of analog outputs | 0 |
| Resolution with overrange (bit including sign), max. | 10 bit |
| Integration time, parameterizable | Yes |
| Conversion time (per channel) | 625 µs |
| 2-wire sensor | Yes |
| Interface type | PROFINET |
| Isolated | Yes |
| automatic detection of transmission rate | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| RJ 45 (Ethernet) | Yes |
| Number of ports | 1 |
| integrated switch | No |
| PROFINET IO Controller | Yes |
| PROFINET IO Device | Yes |
| SIMATIC communication | Yes |
| Open IE communication | Yes; Optionally also encrypted |
| Web server | Yes |
| Media redundancy | No |
| Transmission rate, max. | 100 Mbit/s |
| — PG/OP communication | Yes; encryption with TLS V1.3 pre-selected |
| — Isochronous mode | No |
| — IRT | No |
| — PROFIenergy | NoYes |
| — Prioritized startup | Yes |
| — Number of IO devices with prioritized startup, max. | 16 |
| — Number of connectable IO Devices, max. | 16 |
| — Number of connectable IO Devices for RT, max. | 16 |
| — of which in line, max. | 16 |
| — Activation/deactivation of IO Devices | Yes |
| — Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 |
| — Updating time | The minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data. |
| — Shared device | Yes |
| — Number of IO Controllers with shared device, max. | 2 |
| Supports protocol for PROFINET IO | Yes |
| PROFIsafe | Yes |
| PROFIBUS | Yes; CM 1243-5 (master) or CM 1242-5 (slave) required |
| OPC UA | Yes; OPC UA Server |
| AS-Interface | Yes; CM 1243-2 required |
| TCP/IP | Yes |
| DHCP | No |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| — MRP | No |
| — MRPD | No |
| S7 routing | Yes |
| — Data length, max. | 8 kbyte1 472 byte |
| ISO-on-TCP (RFC1006) | Yes |
| UDP | Yes |
| supported | Yes |
| User-defined websites | Yes |
| Runtime license required | Yes; "Basic" license required |
| OPC UA Server | Yes; data access (read, write, subscribe), method call, runtime license required |
| — Application authentication | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| — User authentication | "anonymous" or by user name & password |
| — Number of sessions, max. | 10 |
| — Number of subscriptions per session, max. | 5 |
| — Sampling interval, min. | 100 ms |
| — Publishing interval, min. | 200 ms |
| — Number of server methods, max. | 20 |
| — Number of monitored items, recommended max. | 1 000 |
| — Number of server interfaces, max. | 2 |
| — Number of nodes for user-defined server interfaces, max. | 2 000 |
| MODBUS | Yes |
| as server | Yes |
| as client | Yes |
| User data per job, max. | See online help (S7 communication, user data size) |
| overall | PG Connections: 4 reserved / 4 max; HMI Connections: 12 reserved / 18 max; S7 Connections: 8 reserved / 14 max; Open User Connections: 8 reserved / 14 max; Web Connections: 2 reserved / 30 max; OPC UA Connections: 0 reserved / 10 max; Total Connections: 34 reserved / 68 max |
| Status/control variable | Yes |
| Variables | inputs/outputs, bit memories, DBs, peripheral I/Os (without fail-safe), times, counters |
| Forcing | Yes; peripheral inputs/outputs (without fail-safe) |
| Number of configurable Traces | 2 |
| Memory size per trace, max. | 512 kbyte |
| RUN/STOP LED | Yes |
| ERROR LED | Yes |
| MAINT LED | Yes |
| Number of counters | 6 |
| Counting frequency, max. | 100 kHz |
| Frequency measurement | Yes |
| controlled positioning | Yes |
| Number of position-controlled positioning axes, max. | 8 |
| Number of positioning axes via pulse-direction interface | 4; With integrated outputs |
| PID controller | Yes |
| Number of alarm inputs | 4 |
| Number of pulse outputs | 4 |
| Limit frequency (pulse) | 100 kHz |
| Potential separation digital inputs | No |
| between the channels, in groups of | 1 |
| Potential separation digital outputs | Yes |
| between the channels | No |
| Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 | Yes |
| — Test voltage at air discharge | 8 kV |
| — Test voltage at contact discharge | 6 kV |
| Interference immunity on supply lines acc. to IEC 61000-4-4 | Yes |
| Interference immunity on signal cables acc. to IEC 61000-4-4 | Yes |
| Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes |
| Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 | Yes |
| Limit class A, for use in industrial areas | Yes; Group 1 |
| Limit class B, for use in residential areas | Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011 |
| IP degree of protection | IP20 |
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| CE mark | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| environmental product declaration | Yes; type II acc. to ISO 14021 |
| — global warming potential, (total) [CO2 eq] | 111 kg |
| — global warming potential, (during production) [CO2 eq] | 20.1 kg |
| — global warming potential, (during operation) [CO2 eq] | 91.5 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.9 kg |
| Performance level according to ISO 13849-1 | PLe |
| SIL acc. to IEC 61508 | SIL 3 |
| Fall height, max. | 0.3 m; five times, in product package |
| min. | 0 °C-40 °C |
| max. | 55 °C; Number of simultaneously activated inputs or outputs 4 or 3 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 8 or 6 at 55 °C horizontal or 45 °C vertical70 °C |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 55 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 45 °C |
| Operation, min. | 795 hPa |
| Operation, max. | 1 080 hPa95 %; no condensation |
| Storage/transport, min. | 660 hPa |
| Storage/transport, max. | 1 080 hPa |
| Installation altitude, min. | -1 000 m |
| Installation altitude, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Vibration resistance during operation acc. to IEC 60068-2-6 | 2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail |
| Operation, tested according to IEC 60068-2-6 | Yes |
| tested according to IEC 60068-2-27 | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms |
| SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
| — LAD | Yes; incl. failsafe |
| — FBD | Yes; incl. failsafe |
| — SCL | Yes |
| User program protection/password protection | Yes |
| Copy protection | Yes |
| Block protection | Yes |
| protection of confidential configuration data | Yes |
| Protection level: Write protection | Yes |
| Protection level: Read/write protection | Yes |
| Protection level: Complete protection | Yes |
| User administration | Yes; device-wide |
| Number of users | 42 |
| Number of groups | 14 |
| Number of roles | 20 |
| adjustable | Yes |
| Width | 110 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 415 g |
