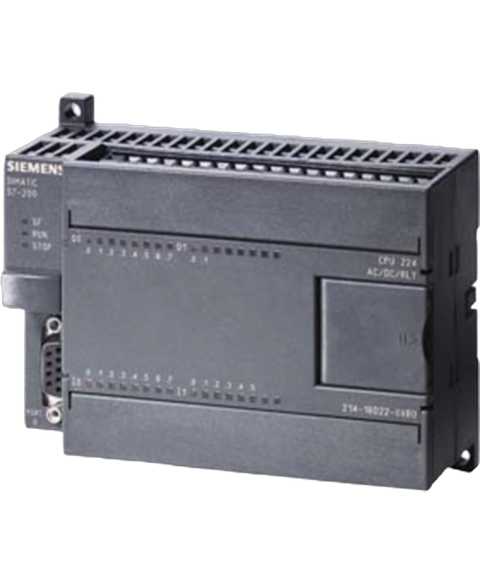

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES7214-1AD23-0XB0
The Siemens 6ES7214-1AD23-0XB0 is a PLC processor module, delivering operational efficiency with a rated voltage of 24 V DC. This device features a processing time of just 0.22 microseconds, allowing for quick responses in automation tasks.
This Siemens 6ES7214-1AD23-0XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Compact plcs range and is referenced internally as PartLogic SKU PL26801430928.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$238.55
(inc. GST)
In Stock
| 24 V DC | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Inrush current, max. | 12 A; at 28.8 V |
| from supply voltage L+, max. | 700 mA; 110 mA to 700 mA, output current for expansion modules (5 V DC) 660 mA |
| 24 V | Yes; permissible range: 15.4 to 28.8 V |
| Short-circuit protection | Yes; electronic at 280 mANo; to be provided externally |
| Output current, max. | 280 mA |
| Power loss, typ. | 7 W |
| Number of memory modules (optional) | 1; pluggable memory module, content identical with integral EEPROM; can additionally store recipes, data logs and other files |
| integrated (for program) | 12 kbyte; 8 KB with active run-time edit |
| integrated (for data) | 8 kbyte |
| present | Yes; Program: Entire program maintenance-free on integral EEPROM, programmable via CPU; data: Entire DB 1 loaded from PG/PC maintenance-free on integral EEPROM, current values of DB 1 in RAM, retentive memory bits, timers, counters, etc. maintenance-free via high-performance capacitor; optional battery for long-term buffering |
| Backup time, max. | 100 h; (min. 70 h at 40 °C); 200 days (typ.) with optional battery module |
| for bit operations, max. | 0.22 µs |
| Number | 256 |
| — adjustable | Yes; via high-performance capacitor or battery |
| — lower limit | 01 ms |
| — upper limit | 32 76754 min; 4 timers: 1 ms to 30 s; 16 timers: 10 ms to 5 min; 236 timers: 100 ms to 54 min |
| Size, max. | 32 byte |
| Retentivity available | Yes; M 0.0 to M 31.7 |
| of which retentive with battery | 0 to 255, via high-performance capacitor or battery, adjustable |
| of which retentive without battery | 0 to 112 in EEPROM, adjustable |
| Number of expansion units, max. | 7; Only expansion modules of the S7-22x series can be used. Due to the limited output current, the use of expansion modules may be limited. |
| connectable programming devices/PCs | SIMATIC PG/PC, standard PC |
| Analog inputs/outputs, max. | 35; max. 28 inputs and 7 outputs (EM) or max. 0 inputs and 14 outputs (EM) |
| Digital inputs/outputs, max. | 168; max. 94 inputs and 74 outputs (CPU + EM) |
| AS-Interface inputs/outputs, max. | 62; AS-Interface A/B slaves (CP 243-2) |
| Number of digital inputs | 14 |
| Sourcing/sinking input | Yes; optionally, per group |
| for signal "0" | 0 to 5 V |
| for signal "1" | min. 15 V |
| for signal "1", typ. | 2.5 mA |
| — parameterizable | Yes; allYes; I 0.0 to I 0.3Yes; (E 0.0 to E 1.5) 30 kHz |
| — at "0" to "1", min. | 0.2 ms |
| — at "0" to "1", max. | 12.8 ms |
| shielded, max. | 500 m; Standard input: 500 m, high-speed counters: 50 m500 m |
| unshielded, max. | 300 m; not for high-speed signals150 m |
| Number of digital outputs | 10; Transistor |
| Limitation of inductive shutdown voltage to | 1 W |
| with resistive load, max. | 0.75 A |
| on lamp load, max. | 5 W |
| for signal "1", min. | 20 V DC |
| for signal "1" rated value | 750 mA |
| for signal "0" residual current, max. | 10 µA |
| "0" to "1", max. | 15 µs; of the standard outputs, max. (Q 0.2 to Q 1.1) 2 µs; of the pulse outputs, max. (Q 0.0 to Q 0.1) 2 µs |
| "1" to "0", max. | 130 µs; of the standard outputs, max. (Q 0.2 to Q 1.1) 10 µs; of the pulse outputs, max. (Q 0.0 to Q 0.1) 10 µs |
| for uprating | Yes |
| of the pulse outputs, with resistive load, max. | 20 kHz; Q0.0 to Q0.1 |
| — up to 40 °C, max. | 6 A |
| — up to 55 °C, max. | 6 A |
| Number of relay outputs | 0 |
| Number of analog potentiometers | 2; Analog potentiometer; resolution 8 bit |
| 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 1 mA |
| Interface type | Integrated RS 485 interface |
| MPI | Yes; As MPI slave for data exchange with MPI masters (S7-300/S7-400 CPUs, OPs, TDs, Push Button Panels); S7-200-internal CPU/CPU communication is possible in the MPI network with restrictions; transmission rates: 19.2/187.5 kbit/s |
| PPI | Yes; with PPI protocol for program functions, HMI functions (TD 200, OP), S7-200-internal CPU/CPU communication ; transmission rates 9.6/19.2/187.5 kbit/s |
| serial data exchange | Yes; As freely programmable interface with interrupt facility for serial data exchange with third-party devices with ASCII protocol transfer rates: 1.2 / 2.4 / 4.8 / 9.6 / 19.2 / 38.4 / 57.6 / 115.2 kbps; the PC/PPI cable can also be used as RS 232/RS 485 converter |
| Transmission rate, min. | 19.2 kbit/s |
| Transmission rate, max. | 187.5 kbit/s |
| Number of counters | 6; High-speed counters (30 kHz each), 32 bit (incl. sign), can be used as up/down counters or for connecting 2 incremental encoders with 2 pulse trains offset by 90° (max. 20 kHz (A/B counters)); parameterizable enable and reset input; interrupt facilities (incl. call of subroutine with any content) when the setpoint is reached; reversal in counting direction, etc. |
| Counting frequency, max. | 30 kHz |
| Number of alarm inputs | 4; 4 rising edges and/or 4 falling edges |
| Number of pulse outputs | 2; High-speed outputs, 20 kHz, with interrupt option; pulse-width and frequency modulation option |
| Limit frequency (pulse) | 20 kHz |
| between the channels | YesYes; Optocoupler |
| between the channels, in groups of | 6 and 85 |
| between different circuits | 500 V DC between 24 V DC and 5 V DC |
| IP degree of protection | IP20 |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 55 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 45 °C |
| permissible range, lower limit | 860 hPa |
| permissible range, upper limit | 1 080 hPa |
| Operation, min. | 5 % |
| Operation, max. | 95 %; RH class 2 in accordance with IEC 1131-2 |
| Command set | Bit logic instructions, compare instructions, timer instructions, counter instructions, clock instructions, transmissions instructions, table instructions, logic instructions, shift and rotate instructions, conversion instructions, program control instructions, interrupt and communications instructions, logic stack instructions, integer maths, floating-point math instructions, numerical functions |
| Program processing | free cycle (OB 1), interrupt-controller, time-controlled (1 to 255 ms) |
| Program organization | 1 OB, 1 DB, 1 SDB subroutines with/without parameter transfer |
| Number of subroutines, max. | 64 |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| User program protection/password protection | Yes; 3-stage password protection |
| Plug-in I/O terminals | Yes |
| Width | 120.5 mm |
| Height | 80 mm |
| Depth | 62 mm |
| Weight, approx. | 360 g |
