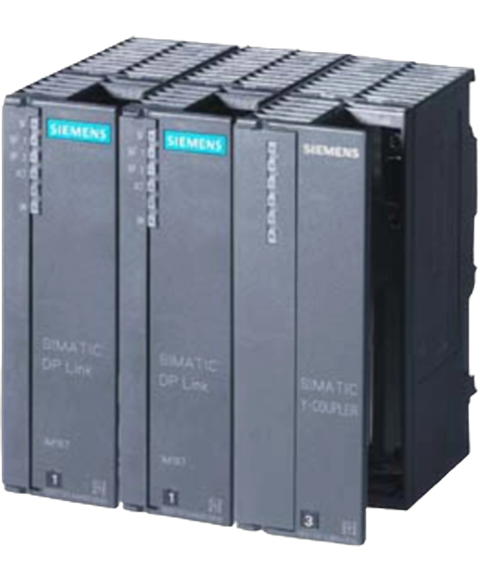

Siemens 6ES7197-1LB00-0XA0
Siemens 6ES7197-1LB00-0XA0 SIMATIC S7 Y-coupler module for redundant controllers.
This Siemens 6ES7197-1LB00-0XA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Accessories range and is referenced internally as PartLogic SKU PL26805600313.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Design of the power supply | via bus module |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption, max. | 300 mA |
| Power loss, typ. | 1 W |
| — Transmission rate, max. | 12 Mbit/s; 45.45 kbit/s to 12 Mbit/s |
| — Termination of lower-level DP master system | active terminating resistor (Bus Terminator) |
| — Use of OLM/OBT | Yes |
| — Use of RS 485 repeaters, max. | 9 |
| — max. number of DP devices | 31; 64 when using RS 485 repeaters or OLM/OBT |
| — Length of parameter assignment telegram | 244 byte |
| PROFIBUS DP | Yes |
| AS-Interface | No |
| Status indicator | No |
| Alarms | No |
| Diagnostics function | Yes |
| to lower-level DP master system | Yes |
| IP degree of protection | IP20 |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight, approx. | 200 g |
