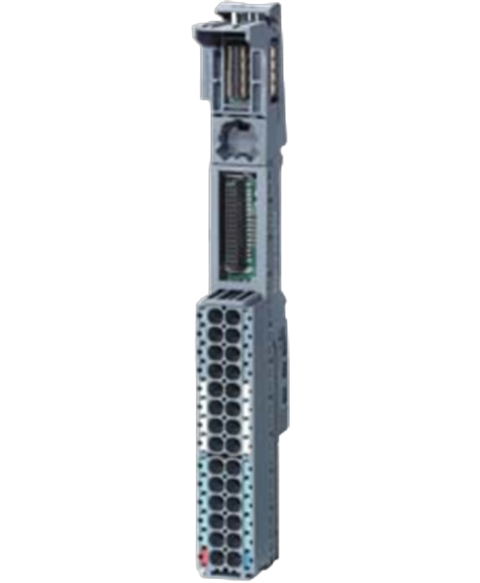

Siemens 6ES7193-6BP20-0BA0
Siemens ET 200SP Base Unit, Type A0, Push-In with 10 AUX Terminals (6ES7193-6BP20-0BA0)
This Siemens 6ES7193-6BP20-0BA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Accessories range and is referenced internally as PartLogic SKU PL26801731796.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | BU type A0 |
| HW functional status | From FS06 |
| Rated value (DC) | 24 V |
| external protection for power supply lines | Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic |
| For P1 and P2 bus, max. | 10 A |
| For AUX bus, max. | 10 A |
| For process terminals, max. | 2 A |
| New potential group | No |
| Potential group continued from the left | Yes |
| Number of slots | 1; Type A0 |
| Isolation tested with | 707 V DC (type test) |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 1.09 kg |
| — global warming potential, (during production) [CO2 eq] | 1.08 kg |
| — global warming potential, (during operation) [CO2 eq] | 0 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.0045 kg |
| horizontal installation, min. | -30 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| for process terminals | CC00 to CC09 |
| for AUX terminals | CC71 to CC73 |
| for add-on terminals | does not exist |
| Terminal type | Push-in terminal |
| system-integrated shield connection | Yes; Optional |
| Conductor cross-section, min. | 0.14 mm²; AWG 26 |
| Conductor cross-section, max. | 2.5 mm²; AWG 14 |
| Number of process terminals to I/O module | 16 |
| Number of terminals to AUX bus | 10 |
| Number of add-on terminals | 0 |
| Number of terminals with connection to P1 and P2 bus | 2 |
| Width | 15 mm |
| Height | 141 mm |
| Depth | 35 mm |
| Weight, approx. | 50 g |
