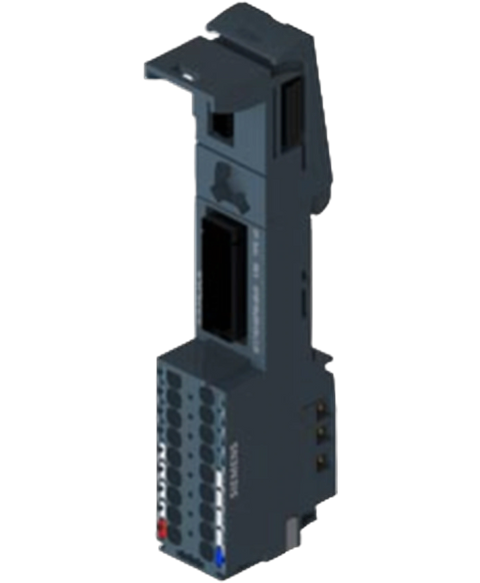

Siemens 6ES7193-6BP00-0BU0
Siemens ET 200SP Base Unit, Type U0, BU20-P16+A0+2B (6ES7193-6BP00-0BU0)
This Siemens 6ES7193-6BP00-0BU0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Accessories range and is referenced internally as PartLogic SKU PL26842799312.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | BU type U0 |
| HW functional status | from FS11 |
| Rated value (DC) | See manual |
| For P1 and P2 bus | 120 V277 V |
| For AUX bus | 120 V; Equal potential group to P1/P2 bus or PE277 V; Equal potential group to P1/P2 bus or PE |
| for process terminals | 120 V277 V; 480 V (L1 - L2 - L3); 277 V (L, N) |
| Rated value (AC) | See manual |
| integrated | No |
| up to 60 °C, max. | 10 A |
| For P1 and P2 bus, max. | 10 A |
| For AUX bus, max. | 10 A |
| For process terminals, max. | 10 A; Point of contact, derating depends on the module |
| Automatic encoding | Yes |
| New potential group | No |
| Potential group continued from the left | Yes |
| Number of slots | 1 |
| between backplane bus and supply voltage | Yes |
| between process terminals and supply voltage | Yes; Not applicable for process terminals 15 and 16 |
| between power bus and supply voltage | No |
| Isolation tested with | 3 100 V DC |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 0.873 kg |
| — global warming potential, (during production) [CO2 eq] | 0.866 kg |
| — global warming potential, (during operation) [CO2 eq] | 0 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.0011 kg |
| horizontal installation, min. | -30 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 3 000 m |
| Terminal type | Push-in terminal |
| system-integrated shield connection | Yes; Optional |
| Conductor cross-section, min. | 0.14 mm²; 0.2 mm² without wire end ferrule |
| Conductor cross-section, max. | 2.5 mm²; 1.5 mm² with wire end ferrule |
| Number of process terminals to I/O module | 16 |
| Number of terminals to AUX bus | 0 |
| Number of add-on terminals | 0 |
| Number of terminals with connection to P1 and P2 bus | 2 |
| Width | 20 mm |
| Height | 117 mm |
| Depth | 35 mm |
| Weight, approx. | 50 g |
