Siemens 6ES71583AD100XA0

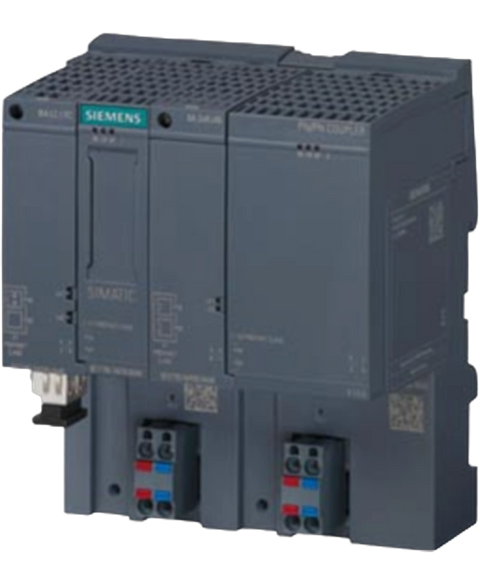

SIMATIC PN,PN Coupler for deterministic data exchange between max.4 PN-Controller per subnet, also from subnet to subnet, PROFIsafe data exchange, I,O-, MSI-, MSO- and data record communication, redundant power supply, PN-connection via SIMATIC BusAdapter (BA), delivery w,o BusAdapter
This Siemens 6ES71583AD100XA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27100138466.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | PN/PN coupler |
| Firmware version | V6.0 |
| FW update possible | Yes |
| Vendor identification (VendorID) | 002AH |
| Device identifier (DeviceID) | 0604H |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | Yes; 500 µs |
| Tool changer | Yes; Docking station and docking unit |
| Local coupling, IO data | Yes |
| — Number of coupling modules | 16; in non-isochronous mode, otherwise 316 |
| — Number of coupling submodules per module | 4; 1x write, 3x read in non-isochronous mode, otherwise see description in the manual4; 1x write, 3x read |
| Local coupling, data records | Yes; in non-isochronous mode |
| — Record length, max. | 4 096 byte |
| — FIFO depth in storage mode | 8 |
| STEP 7 TIA Portal configurable/integrated from version | V20 or higher |
| STEP 7 configurable/integrated from version | V5.7 SP3 |
| PROFINET from GSD version/GSD revision | GSDML V2.4.x |
| Mounting | Mounting rail 7.5 mm and 15 mm |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains/voltage failure stored energy time | 10 ms |
| Current consumption, max. | 360 mA; For 19.2 V input voltage at the right-hand supply terminal, including 2 plugged BA 2x LC |
| Inrush current, max. | 1.6 A |
| I²t | 0.031 A²·s |
| from supply voltage 1L+, max. | 320 mA; For 19.2 V input voltage at the left-hand supply terminal, including 2 plugged BA 2x LC |
| Power loss, typ. | 4 W; For 24 V input voltage and 2 plugged BA 2x RJ45 If BusAdapters with an optical interface are plugged, there is an additional 750 mW per optical interface (3 W with 2 plugged BA 2x LC) |
| Address space per module, max. | 254 byte; max. 254 bytes of input data and 253 bytes of output data |
| Address space per station, max. | 1 440 byte; per input / output |
| Number of submodules per station, max. | 116 |
| Number of PROFINET interfaces | 2; via BusAdapter |
| Optical interface | Yes; Via SIMATIC BusAdapter |
| Transmission rate, max. | 100 Mbit/s |
| Number of ports | 2; via BusAdapter |
| integrated switch | Yes |
| BusAdapter (PROFINET) | Yes; Compatible BusAdapter: BA 2x RJ45, BA 2x FC, BA 2x SCRJ, BA SCRJ / RJ45, BA SCRJ / FC, BA 2x LC, BA LC / RJ45, BA LC / FC |
| PROFINET IO Device | Yes |
| Open IE communication | Yes |
| Media redundancy | Yes; As MRP or MRPD client; max. 50 or 30 devices in the ring |
| Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| 10 Mbps | No |
| 100 Mbps | Yes; PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Supports protocol for PROFINET IO | Yes |
| TCP/IP | Yes |
| SNMP | Yes |
| LLDP | Yes |
| ping | Yes |
| ARP | Yes |
| — IRT | Yes |
| — PROFIenergy | No |
| — Prioritized startup | Yes; in non-isochronous mode |
| — Shared device | Yes; in non-isochronous mode |
| — Number of IO Controllers with shared device, max. | 4; per line side |
| PROFINET system redundancy (S2) | Yes; NAP S2 acc. to IEC, only in non-isochronous mode |
| H-Sync forwarding | Yes |
| — MRP | Yes |
| — MRPD | Yes |
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes; Parameterizable |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| MAINT LED | Yes; Yellow LED |
| LINK LED | Yes; 2x green link LEDs on BusAdapter |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Monitoring 24 V voltage supply ON (green) | Yes; for each side |
| between supply voltage and electronics | Yes; to power input 2 |
| between Ethernet and electronics | Yes |
| Isolation tested with | 707 V DC (type test) |
| Network loading class | 3 |
| min. | -30 °C; From FS05 |
| max. | 60 °C; = Tmax for horizontal installation; for vertical installation Tmax = 50 °C |
| Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see section "Climatic and mechanical environmental conditions" |
| Strain relief | Yes; Optional, for RJ45 and FC BusAdapter only |
| Width | 100 mm; Minimized with good handling |
| Height | 117 mm |
| Depth | 74 mm; with mounting rail |
| Weight, approx. | 200 g; without BusAdapter |
