Siemens 6ES71556AU000BN0

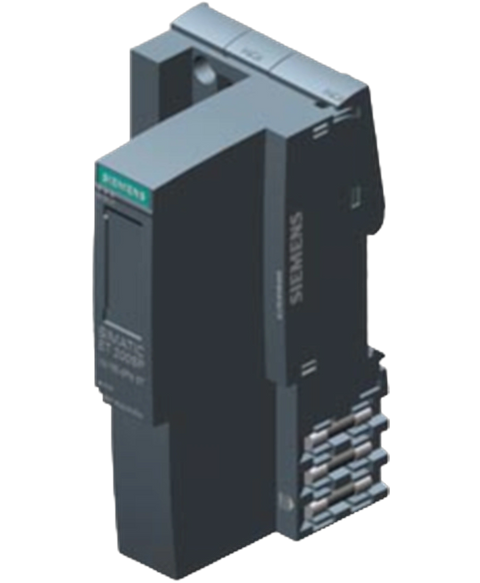

SIMATIC ET 200SP, PROFINET INTERFACE MODULE IM155-6PN STANDARD, MAX. 32 PERIPHERY MODULES, INCL. SERVER MODULE
This Siemens 6ES71556AU000BN0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27100105879.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | IM 155-6 PN ST |
| Firmware version | V3.3 |
| I&M data | Yes; I&M0 to I&M3 |
| Module swapping during operation (hot swapping) | Yes; Single hot swapping |
| Isochronous mode | No |
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 |
| STEP 7 configurable/integrated from version | V5.5 SP4 and higher |
| PROFINET from GSD version/GSD revision | V2.3 / - |
| via dataset | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains/voltage failure stored energy time | 5 ms |
| Current consumption, max. | 450 mA |
| Inrush current, max. | 3.7 A |
| I²t | 0.09 A²·s |
| Power loss, typ. | 1.9 W |
| Address space per module, max. | 256 byte; per input / output |
| Address space per station, max. | 512 byte; Dependent on configuration |
| Modules per rack, max. | 32; + 16 ET 200AL modules |
| Number of submodules per station, max. | 256 |
| Number of PROFINET interfaces | 1; 2 ports (switch) |
| Number of ports | 2 |
| integrated switch | Yes |
| BusAdapter (PROFINET) | Yes; Applicable BusAdapter: BA 2x RJ45, BA 2x FC |
| PROFINET IO Device | Yes |
| Open IE communication | Yes |
| Media redundancy | Yes; PROFINET MRP |
| — IRT | Yes; with send cycles of between 250 µs and 4 ms in increments of 125 µs |
| — PROFIenergy | Yes |
| — Prioritized startup | Yes |
| — Shared device | Yes |
| — Number of IO Controllers with shared device, max. | 2 |
| Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| 10 Mbps | No |
| 100 Mbps | Yes; PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| PROFINET system redundancy (S2) | No |
| — MRP | Yes |
| — MRPD | No |
| TCP/IP | Yes |
| SNMP | Yes |
| LLDP | Yes |
| Equidistance | No |
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| MAINT LED | Yes; Yellow LED |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter |
| between backplane bus and electronics | No |
| between PROFINET and all other circuits | Yes |
| between supply and all other circuits | Yes |
| Isolation tested with | 707 V DC between supply voltage and electronics; 1 500 V AC between Ethernet and electronics |
| Network loading class | 2 |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 50 °C |
| via BU/BA Send | Yes; + 16 ET 200AL modules |
| Width | 50 mm |
| Height | 117 mm |
| Depth | 74 mm |
| Weight, approx. | 147 g; without BusAdapter |
