Siemens 6ES71556AA020BN0

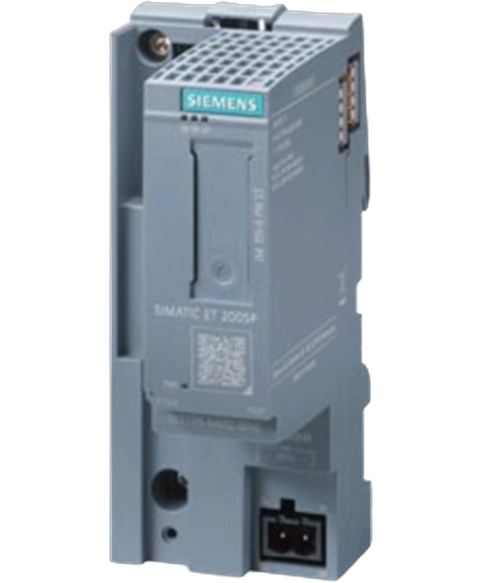

SIMATIC ET 200SP, bundle PROFINET interface module IM 155-6 PN ST, max. 32 I,O modules, and 16 ET 200AL modules, multi hot swap, optional PN strain relief, PN security class 1, bundle consists of: interface module (6ES7155-6AU02-0BN0), server module (6ES7193-6PA00-0AA0), SIMATIC bus adapter BA 2x RJ45 (6ES7193-6AR00-0AA0)
This Siemens 6ES71556AA020BN0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27100097386.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | IM 155-6 PN ST incl. BA 2x RJ45 and server module |
| Firmware version | V6.4.0 |
| FW update possible | Yes |
| Vendor identification (VendorID) | 002AH |
| Device identifier (DeviceID) | 0313H |
| Manufacturer ID according to ODVA (VendorID) | 04E3H |
| Device ID according to ODVA (Product code) | 0FA2H |
| I&M data | Yes; I&M0 to I&M4 |
| Module swapping during operation (hot swapping) | Yes; Multi-hot swapping |
| Isochronous mode | Yes |
| IRT | Yes |
| Local coupling, IO data | Yes |
| — Number of coupling modules | 6; 1x output + max. 5x input |
| STEP 7 TIA Portal configurable/integrated from version | V20 |
| STEP 7 configurable/integrated from version | V5.7 SP3 |
| PROFINET from GSD version/GSD revision | GSDML V2.45 |
| via dataset | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains/voltage failure stored energy time | 10 ms |
| Current consumption (rated value) | 350 mA |
| Current consumption, max. | 450 mA |
| Inrush current, max. | 1 A |
| I²t | 0.05 A²·s |
| Power loss, typ. | 1.8 W |
| Address space per module, max. | 288 byte; For input and output data respectively |
| Address space per station, max. | 1 440 byte |
| Quantity of operable ET 200SP modules, max. | 32 |
| Quantity of operable ET 200AL modules, max. | 16 |
| Number of submodules per station, max. | 256 |
| Number of PROFINET interfaces | 1; 2 ports (switch) |
| RJ 45 (Ethernet) | Yes; with BusAdapter |
| Number of ports | 2; with BusAdapter |
| integrated switch | Yes |
| BusAdapter (PROFINET) | Yes; BA 2x RJ45, BA 2x FC, BA 2x M12 |
| PROFINET IO Device | Yes |
| Open IE communication | Yes |
| Media redundancy | Yes; PROFINET MRP client |
| — IRT | Yes; 1 ms to 4 ms at an interval of 125 µs |
| — Dynamic Frame Packing (DFP) | Yes |
| — Fast Forwarding | Yes |
| — Fragmentation | Yes |
| — PROFIenergy | Yes |
| — Prioritized startup | Yes |
| — Shared device | Yes |
| — Number of IO Controllers with shared device, max. | 4 |
| Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| 100 Mbps | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Supports protocol for PROFINET IO | Yes |
| PROFIsafe | Yes |
| PROFIBUS | No |
| EtherNet/IP | No |
| Modbus TCP | No |
| PROFINET system redundancy (S2) | No |
| — MRP | Yes |
| — MRPD | Yes |
| TCP/IP | Yes |
| UDP | Yes |
| SNMP | Yes |
| LLDP | Yes |
| ARP | Yes |
| IGMP | Yes |
| Multicast | Yes |
| Broadcast | Yes |
| IPv4 | Yes |
| IPv6 | No |
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| MAINT LED | Yes; Yellow LED |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter |
| between backplane bus and electronics | No |
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) |
| between supply and all other circuits | No |
| between different circuits | Safety extra low voltage SELV |
| Isolation tested with | 707 V DC (type test) |
| Network loading class | 3 |
| PROFINET Security Class | 1 |
| signed firmware update | Yes |
| Secure Boot | No |
| safely removing data | Yes |
| data integrity | Yes |
| horizontal installation, min. | -30 °C; No condensation |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; No condensation |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
| dew point, min. | -60 °C; suitable for dry room applications |
| via BU/BA Send | Yes; + 16 ET 200AL modules |
| Strain relief | Yes; Optional |
| Width | 50 mm |
| Height | 117 mm |
| Depth | 74 mm |
| Weight, approx. | 120 g; without BusAdapter |
