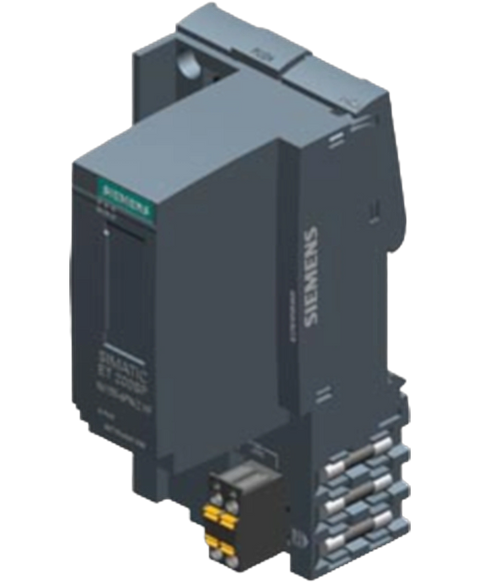

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES7155-6AU01-0CN0
Siemens 6ES7155-6AU01-0CN0 Profinet interface module.
This Siemens 6ES7155-6AU01-0CN0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801718669.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$550.95
(inc. GST)
In Stock
| Product type designation | IM 155-6 PN/2 HF |
| HW functional status | From FS02 |
| Firmware version | V4.2 |
| FW update possible | Yes |
| I&M data | Yes; I&M0 to I&M3 |
| Module swapping during operation (hot swapping) | Yes; Multi-hot swapping |
| Isochronous mode | Yes |
| Tool changer | Yes; Docking station and docking unit |
| STEP 7 TIA Portal configurable/integrated from version | V15.1 |
| STEP 7 configurable/integrated from version | use GSD file |
| PROFINET from GSD version/GSD revision | GSDML V2.34 |
| via dataset | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains/voltage failure stored energy time | 10 ms |
| Current consumption, max. | 700 mA |
| Inrush current, max. | 4.5 A |
| I²t | 0.25 A²·s |
| Power loss, typ. | 2.4 W |
| Address space per module, max. | 288 byte; For input and output data respectively |
| Address space per station, max. | 1 440 byte |
| Quantity of operable ET 200SP modules, max. | 64 |
| Quantity of operable ET 200AL modules, max. | 16 |
| Number of submodules per station, max. | 256 |
| Number of PROFINET interfaces | 1; 2 ports (switch) |
| RJ 45 (Ethernet) | Yes; with BusAdapter |
| Number of ports | 2; with BusAdapter |
| integrated switch | Yes |
| BusAdapter (PROFINET) | Yes; BA 2x RJ45, BA 2x FC, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2x LC, BA LC/RJ45, BA LC/FC |
| PROFINET IO Device | Yes |
| Open IE communication | Yes |
| Media redundancy | Yes; PROFINET MRP client |
| — IRT | Yes; 250 µs to 4 ms in 125 µs frame |
| — PROFIenergy | Yes |
| — Prioritized startup | Yes |
| — Shared device | Yes |
| — Number of IO Controllers with shared device, max. | 4 |
| Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| 100 Mbps | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Supports protocol for PROFINET IO | Yes |
| PROFIsafe | Yes |
| PROFIBUS | No |
| EtherNet/IP | No |
| Modbus TCP | No |
| Number of MtM communication relationships/connections, max. | 16 |
| PROFINET system redundancy (S2) | Yes; NAP S2 |
| H-Sync forwarding | Yes |
| — MRP | Yes |
| — MRPD | No |
| TCP/IP | Yes |
| SNMP | Yes |
| LLDP | Yes |
| Equidistance | Yes |
| shortest clock pulse | 250 µs |
| max. cycle | 4 ms |
| Bus cycle time (TDP), min. | 250 µs |
| Jitter, max. | 1 µs |
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| MAINT LED | Yes; Yellow LED |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter |
| between backplane bus and electronics | No |
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) |
| between supply and all other circuits | No |
| between different circuits | Safety extra low voltage SELV |
| Isolation tested with | 707 V DC (type test) |
| Network loading class | 3 |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 105 kg |
| — global warming potential, (during production) [CO2 eq] | 13.7 kg |
| — global warming potential, (during operation) [CO2 eq] | 91.9 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.617 kg |
| horizontal installation, min. | -30 °C; No condensation |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; No condensation |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| via BU/BA Send | Yes; + 16 ET 200AL modules |
| Strain relief | Yes; Optional |
| Width | 50 mm |
| Height | 117 mm |
| Depth | 74 mm |
| Weight, approx. | 120 g; without BusAdapter |
