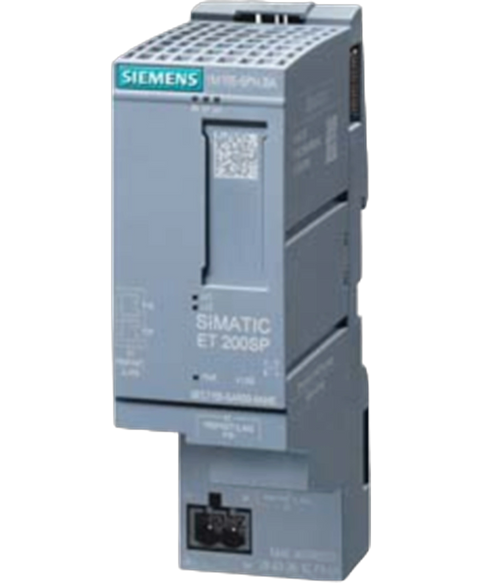

Siemens 6ES7155-6AR00-0AN0
Siemens 6ES7155-6AR00-0AN0 Profinet interface module.
This Siemens 6ES7155-6AR00-0AN0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805548121.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | IM 155-6 PN BA |
| HW functional status | from FS04 |
| FW update possible | Yes |
| I&M data | Yes; I&M0 to I&M3 |
| Module swapping during operation (hot swapping) | Yes; Single hot swapping |
| Isochronous mode | No |
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 |
| STEP 7 configurable/integrated from version | V5.5 SP4 |
| PROFINET from GSD version/GSD revision | GSDML V2.31 |
| via dataset | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains/voltage failure stored energy time | 5 ms |
| Current consumption, max. | 300 mA |
| I²t | 0.09 A²·s |
| Power loss, typ. | 1.8 W |
| Address space per module, max. | 32 byte; For input and output data respectively |
| Address space per station, max. | 32 byte |
| Quantity of operable ET 200SP modules, max. | 12 |
| Quantity of operable ET 200AL modules, max. | 0 |
| Number of PROFINET interfaces | 1; 2 ports (switch) |
| RJ 45 (Ethernet) | Yes; 2 integrated RJ45 ports |
| Number of ports | 2; integrated RJ45 ports |
| integrated switch | Yes |
| BusAdapter (PROFINET) | No |
| PROFINET IO Device | Yes |
| Open IE communication | Yes |
| Media redundancy | Yes; PROFINET MRP client |
| — IRT | No |
| — PROFIenergy | No |
| — Prioritized startup | No |
| — Shared device | No |
| Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| 100 Mbps | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Supports protocol for PROFINET IO | Yes |
| PROFIsafe | No |
| PROFIBUS | No |
| EtherNet/IP | No |
| Modbus TCP | No |
| PROFINET system redundancy (S2) | No |
| — MRP | Yes |
| — MRPD | No |
| TCP/IP | Yes |
| SNMP | Yes |
| LLDP | Yes |
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| MAINT LED | Yes; Yellow LED |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter |
| between backplane bus and electronics | No |
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) |
| between supply and all other circuits | No |
| between different circuits | Safety extra low voltage SELV |
| Isolation tested with | 707 V DC (type test) |
| Network loading class | 2 |
| horizontal installation, min. | -30 °C; No condensation |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; No condensation |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| via BU/BA Send | No |
| Width | 35 mm |
| Height | 117 mm |
| Depth | 74 mm |
| Weight, approx. | 125 g |
