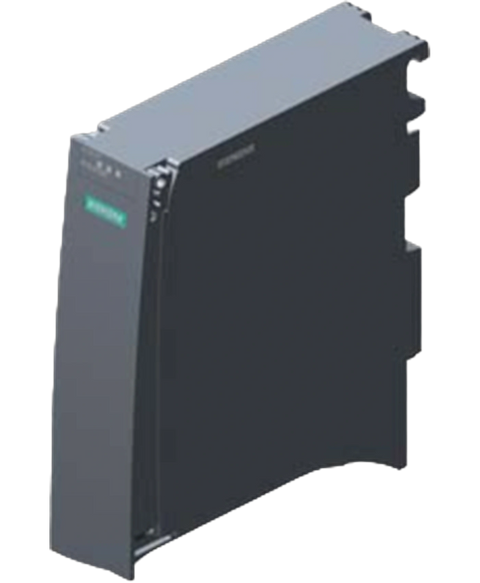

Siemens 6ES7155-5BA00-0AB0
Siemens 6ES7155-5BA00-0AB0 ET200MP interface module IM155-5 DP ST.
This Siemens 6ES7155-5BA00-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801458171.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | IM 155-5 DP ST |
| HW functional status | from FS01 |
| Firmware version | V2.0.0 |
| FW update possible | Yes |
| Vendor identification (VendorID) | 81AAh |
| I&M data | Yes; I&M0 to I&M3 |
| Module swapping during operation (hot swapping) | No |
| Isochronous mode | No |
| IRT | No |
| Tool changer | No |
| Local coupling, IO data | No |
| STEP 7 TIA Portal configurable/integrated from version | V13 |
| STEP 7 configurable/integrated from version | use GSD file |
| PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 |
| via dataset | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains/voltage failure stored energy time | 5 ms |
| Current consumption (rated value) | 0.2 A; at 24 V DC and without load |
| Current consumption, max. | 1.2 A; at 20.4 V DC and max. load |
| Inrush current, max. | 4 A |
| I²t | 0.09 A²·s |
| from interface 5 V DC, max. | 80 mA |
| Infeed power to the backplane bus | 14 W |
| Power loss, typ. | 4 W |
| Address space per module, max. | 64 byte; For input and output data respectively |
| Address space per station, max. | 244 byte; For input and output data respectively |
| Integrated power supply | Yes; 14 W |
| System power supply can be plugged in to left of IM | No |
| Number of permissible power segments | 1; incl. interface module |
| Modules per rack, max. | 12; I/O modules |
| Number of PROFIBUS interfaces | 1; 1 port |
| RS 485 | Yes |
| Number of ports | 1 |
| integrated switch | No |
| BusAdapter (PROFINET) | No |
| PROFIBUS DP device | Yes |
| — IRT | No |
| Transmission rate, max. | 12 Mbit/s |
| Supports protocol for PROFINET IO | No |
| PROFIsafe | Yes |
| PROFIBUS | Yes |
| EtherNet/IP | No |
| Modbus TCP | No |
| — SYNC capability | Yes |
| — FREEZE capability | Yes |
| — DPV1 | Yes |
| Status indicator | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| MAINT LED | Yes; Yellow LED |
| Connection display DP | Yes; green LED |
| between backplane bus and electronics | No |
| between PROFIBUS DP and all other circuit components | Yes |
| between supply and all other circuits | No |
| between different circuits | Safety extra low voltage SELV |
| Isolation tested with | 707 V DC (type test) |
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 64.1 kg |
| — global warming potential, (during production) [CO2 eq] | 11.1 kg |
| — global warming potential, (during operation) [CO2 eq] | 53.6 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.669 kg |
| horizontal installation, min. | -25 °C; from FS04 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -25 °C; from FS04 |
| vertical installation, max. | 40 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| via BU/BA Send | No |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 360 g |
