Siemens 6ES7153-2BA02-0XB0

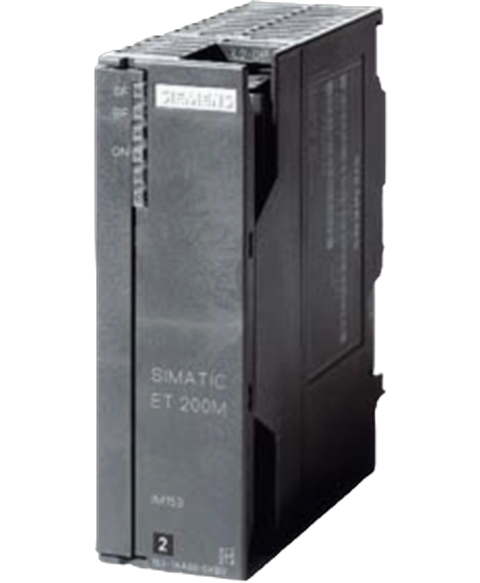

The Siemens 6ES7153-2BA02-0XB0 is a high feature interface module designed to facilitate connections in automation environments. It operates with a rated supply voltage of 24 V DC and handles a rated current of 650 mA, with an inrush current of 3.0 A during startup.
This Siemens 6ES7153-2BA02-0XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805655739.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | IM 153-2 DP HF |
| Vendor identification (VendorID) | 801Eh |
| Rated value (DC) | 24 V5 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| external protection for power supply lines (recommendation) | 2,5 A |
| Mains/voltage failure stored energy time | 5 ms |
| Current consumption, max. | 600 mA |
| Inrush current, typ. | 3 A |
| I²t | 0.1 A²·s |
| for backplane bus (5 V DC), max. | 1.5 A |
| Power loss, typ. | 5.5 W |
| Inputs | 244 byte |
| Outputs | 244 byte |
| Number of modules per DP slave interface, max. | 12 |
| Accuracy | 1 ms; 1 ms at up to 8 modules; 10 ms at up to 12 modules |
| Number of message buffers | 15 |
| Messages per message buffer | 20 |
| Number of stampable digital inputs, max. | 128; Max. 128 signals/station; max. 32 signals/slot |
| Time format | RFC 1119 |
| Time resolution | 0.466 ns |
| Time interval for transmitting the message buffer if a message is present | 1 000 ms |
| Time stamp on signal change | rising / falling edge as signal entering or exiting |
| Transmission procedure | RS 485 |
| Transmission rate, max. | 12 Mbit/s |
| automatic detection of transmission rate | Yes |
| Output current of the interface, max. | 70 mA |
| Design of the connection | 9-pin sub D socket |
| GSD file | SI04801.GSG |
| automatic baud rate search | Yes |
| Bus protocol/transmission protocol | PROFIBUS DP to EN 50170 |
| TCP/IP | No |
| Number of node addresses, max. | 1 to 125 permitted |
| — SYNC capability | Yes |
| — FREEZE capability | Yes |
| — Direct data exchange (slave-to-slave communication) | Yes; Sender |
| Potential separation exists | Yes |
| Isolation tested with | Isolation voltage 500 V |
| IP degree of protection | IP20 |
| min. | 0 °C |
| max. | 60 °C |
| Installation altitude above sea level, max. | 3 000 m |
| STEP 7 | Yes; STEP 7 / COM PROFIBUS / non-Siemens tools via GSD file |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
| Weight, approx. | 360 g |
