Siemens 6ES7153-1AA03-0XB0

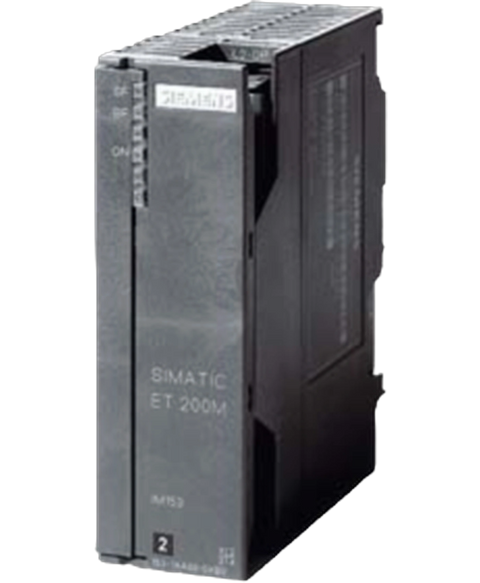

The Siemens 6ES7153-1AA03-0XB0 is an interface module designed to facilitate communication between systems. Operating within a voltage range of 20.4V to 28.8V DC, this module efficiently manages up to 350 mA of current.
This Siemens 6ES7153-1AA03-0XB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801458120.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | IM 153-1 DP ST |
| Vendor identification (VendorID) | 801Dh |
| Rated value (DC) | 24 V5 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| external protection for power supply lines (recommendation) | not necessary |
| Mains/voltage failure stored energy time | 5 ms |
| Current consumption, max. | 350 mA; At 24 V DC |
| Inrush current, typ. | 2.5 A |
| I²t | 0.1 A²·s |
| for backplane bus (5 V DC), max. | 1 A |
| Power loss, typ. | 3 W |
| Inputs | 128 byte |
| Outputs | 128 byte |
| number of modules per DP device interface, max. | 8 |
| Transmission procedure | RS 485 |
| Transmission rate, max. | 12 Mbit/s |
| automatic detection of transmission rate | Yes |
| Output current of the interface, max. | 90 mA |
| Design of the connection | 9-pin sub D socket |
| GSD file | (for DPV1) SIEM801D.GSD; SI01801D.GSG |
| automatic baud rate search | Yes |
| Bus protocol/transmission protocol | PROFIBUS DP to EN 50170 |
| TCP/IP | No |
| Number of node addresses, max. | 1 to 125 permitted |
| — SYNC capability | Yes |
| — FREEZE capability | Yes |
| — Direct data exchange (slave-to-slave communication) | Yes; Sender |
| Potential separation exists | Yes |
| Isolation tested with | Isolation voltage 500 V |
| IP degree of protection | IP20 |
| min. | 0 °C |
| max. | 60 °C |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 40 °C |
| Installation altitude above sea level, max. | 3 000 m |
| STEP 7 | STEP 7 / COM PROFIBUS / non-Siemens tools via GSD file |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 117 mm |
| Weight, approx. | 360 g |
