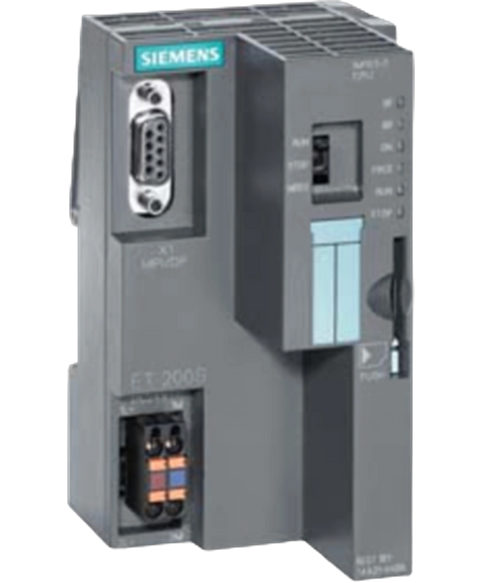

Siemens 6ES71517AA210AB0
SIMATIC DP, IM151-7 CPU FOR ET200S, 128 KB WORKING MEMORY INTEGR. PROFIBUS DP INTERFACE (9 PIN SUB-D, FEMALE) AS DP SLAVE, W,O BATTERY SIMATIC MMC REQUIRED
This Siemens 6ES71517AA210AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27100056710.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,789.19
(inc. GST)
In Stock
| HW functional status | 01 |
| Firmware version | V3.3 |
| Isochronous mode | No |
| Programming package | as of STEP 7 V5.5 + SP1 or as of V5.2 + SP1 + HSP 219 or as of STEP 7 TIA Portal V11 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes; against destruction |
| external protection for power supply lines (recommendation) | 2 A min. |
| Mains/voltage failure stored energy time | 5 ms |
| Inrush current, typ. | 1.8 A |
| I²t | 0.09 A²·s |
| from supply voltage 1L+, max. | 320 mA; 410 mA with DP master module |
| for backplane bus (5 V DC), max. | 700 mA |
| Power loss, typ. | 4.2 W |
| integrated | 128 kbyte |
| expandable | No |
| Plug-in (MMC) | Yes |
| Plug-in (MMC), max. | 8 Mbyte |
| Data management on MMC (after last programming), min. | 10 a |
| present | Yes; Ensured by SIMATIC Micro Memory Card (maintenance-free)Yes |
| for bit operations, typ. | 0.06 µs |
| for word operations, typ. | 0.12 µs |
| for fixed point arithmetic, typ. | 0.16 µs |
| for floating point arithmetic, typ. | 0.59 µs |
| Number of blocks (total) | 1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used. |
| Number, max. | 1 024; Number range: 1 to 160001 024; Number range: 0 to 7999See S7-300 operation list |
| Size, max. | 64 kbyte256 byte |
| Number of free cycle OBs | 1; OB 1 |
| Number of time alarm OBs | 1; OB 10 |
| Number of delay alarm OBs | 2; OB 20, 21 |
| Number of cyclic interrupt OBs | 4; OB 32, 33, 34, 35 |
| Number of process alarm OBs | 1; OB 40 |
| Number of DPV1 alarm OBs | 3; OB 55, 56, 57 |
| Number of startup OBs | 1; OB 100 |
| Number of asynchronous error OBs | 6; OB 80, 82, 83 (for centralized I/O only, not for distributed I/O), 85, 86, 87 |
| Number of synchronous error OBs | 2; OB 121, 122 |
| per priority class | 16 |
| additional within an error OB | 4 |
| Number | 256Unlimited (limited only by RAM capacity)1 |
| — adjustable | YesNoYes; From 10 to 499 |
| — preset | Z 0 to Z 7No retentivity10 |
| — lower limit | 010 ms |
| — upper limit | 9999 990 s |
| Type | SFB |
| Retentive data area (incl. timers, counters, flags), max. | 64 kbyte |
| Retentivity available | Yes; MB 0 to MB 255 |
| Retentivity preset | MB 0 to MB 15Yes |
| Number of clock memories | 8; 1 memory byte |
| Retentivity adjustable | Yes; via non-retain property on DB |
| per priority class, max. | 32 kbyte; Max. 2048 bytes per block |
| Inputs | 2 048 byte16 3361 021 |
| Outputs | 2 048 byte16 3361 021 |
| — Inputs | 2 048 byte244 byte |
| — Outputs | 2 048 byte244 byte |
| Inputs, adjustable | 2 048 byte |
| Outputs, adjustable | 2 048 byte |
| Inputs, default | 128 byte |
| Outputs, default | 128 byte |
| — of which central | 496124 |
| Number of modules per system, max. | 63; Centralized |
| Number of mounting rails that can be used | 1 |
| Length of mounting rail, max. | Station width: ≤ 1 m or < 2 m |
| Hardware clock (real-time) | Yes |
| retentive and synchronizable | Yes |
| Backup time | 6 wk; At 40 °C ambient temperature, typically |
| Deviation per day, max. | 10 s; Typ.: 2 s |
| Behavior of the clock following POWER-ON | Clock continues running after POWER OFF |
| Behavior of the clock following expiry of backup period | the clock continues at the time of day it had when power was switched off |
| Number/Number range | 0 |
| Range of values | 0 to 2^31 hours (when using SFC 101) |
| Granularity | 1 h |
| retentive | Yes; Must be restarted at each restart |
| supported | Yes |
| to MPI, master | Yes |
| on MPI, device | Yes |
| to DP, master | Yes; With DP slave only slave clock |
| on DP, device | Yes |
| in AS, master | No |
| in AS, device | No |
| Interfaces/bus type | 1 x MPI/PROFIBUS DP |
| Interface type | Integrated RS 485 interfaceExternal interface via master module 6ES7138-4HA00-0AB0 |
| Isolated | Yes |
| RS 485 | Yes |
| Output current of the interface, max. | 80 mANo |
| MPI | YesNo |
| PROFIBUS DP master | NoYes |
| PROFIBUS DP device | Yes; active / passiveNo |
| Point-to-point connection | No |
| Transmission rate, max. | 12 Mbit/s |
| — PG/OP communication | Yes |
| — Routing | Yes; With master moduleYes; Only with active, integrated DP slave interface and inserted DP master module in DP master modeYes |
| — Global data communication | YesNo |
| — S7 basic communication | YesNoYes; I blocks only |
| — S7 communication | Yes; Only server, configured on one side |
| — S7 communication, as client | No |
| — S7 communication, as server | Yes |
| GSD file | The latest GSD file is available on the Internet (http://www.siemens.com/profibus-gsd) |
| automatic baud rate search | Yes; only with passive interface |
| Address area, max. | 32 |
| User data per address area, max. | 32 byte; Up to max. size of the transfer memory |
| — Direct data exchange (slave-to-slave communication) | Yes |
| — DPV1 | NoYes |
| max. number of DP devices | 32; Per station |
| — Equidistance | Yes |
| — Isochronous mode | No |
| — SYNC/FREEZE | Yes |
| — activation/deactivation of DP devices | Yes |
| — max. number of DP devices that can be activated/deactivated at the same time | 8 |
| — Inputs, max. | 2 kbyte244 byte |
| — Outputs, max. | 2 kbyte244 byte |
| TCP/IP | No |
| PG/OP communication | Yes |
| Data record routing | Yes; With DP master module |
| Number of GD loops, max. | 8 |
| Number of GD packets, max. | 8 |
| Number of GD packets, transmitter, max. | 8 |
| Number of GD packets, receiver, max. | 8 |
| Size of GD packets, max. | 22 byte |
| Size of GD packet (of which consistent), max. | 22 byte |
| User data per job, max. | 76 byteSee online help of STEP 7 (shared parameters of the SFBs/FBs and of the SFCs/FCs of S7 Communication) |
| User data per job (of which consistent), max. | 76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server)See online help of STEP 7 (shared parameters of the SFBs/FBs and of the SFCs/FCs of S7 Communication) |
| as server | Yes |
| as client | No |
| overall | 12 |
| usable for PG communication | 11 |
| — reserved for PG communication | 1 |
| — adjustable for PG communication, min. | 1 |
| — adjustable for PG communication, max. | 11 |
| usable for OP communication | 11 |
| — reserved for OP communication | 1 |
| — adjustable for OP communication, min. | 1 |
| — adjustable for OP communication, max. | 11 |
| usable for S7 basic communication | 10 |
| — reserved for S7 basic communication | 0 |
| — adjustable for S7 basic communication, min. | 0 |
| — adjustable for S7 basic communication, max. | 10 |
| usable for routing | 4; As slave only with active interface, with IM 151-7 CPU as DP master |
| Number of login stations for message functions, max. | 12; Depending on the configured connections for PG/OP and S7 basic communication |
| Process diagnostic messages | Yes; ALARM_S, ALARM_SC, ALARM_SQ, ALARM_D, ALARM_DQ |
| simultaneously active Alarm_S blocks, max. | 300 |
| Status block | Yes; Up to 2 simultaneously |
| Single step | Yes |
| Number of breakpoints | 4 |
| Status/control variable | Yes |
| Variables | Inputs, outputs, memory bits, DB, times, counters |
| Number of variables, max. | 3010 |
| — of which status variables, max. | 30 |
| — of which control variables, max. | 14 |
| Forcing | Yes |
| Forcing, variables | Inputs, outputs |
| Number of entries, max. | 500 |
| — of which powerfail-proof | 100; Only the last 100 entries are retained |
| Number of entries readable in RUN, max. | 499 |
| can be read out | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| Group error SF (red) | Yes |
| Monitoring 24 V voltage supply ON (green) | Yes |
| between PROFIBUS DP and all other circuit components | Yes |
| Isolation tested with | 500 V DC |
| IP degree of protection | IP20 |
| Configuration rules | max. 63 peripheral modules per station; station width < 1 m or < 2 m; max. 10 A per load group (power module); master interface module on right next to IM 151-7 CPU (X2 interface) |
| STEP 7 Lite | No |
| Command set | see instruction list |
| Nesting levels | 8 |
| System functions (SFC) | see instruction list |
| System function blocks (SFB) | see instruction list |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes; Optional |
| — CFC | Yes; Optional |
| — GRAPH | Yes; Optional |
| — HiGraph® | Yes; Optional |
| User program protection/password protection | Yes |
| Block encryption | Yes; With S7 block Privacy |
| lower limit | 1 ms |
| upper limit | 6 000 ms |
| adjustable | Yes |
| preset | 150 ms |
| Width | 60 mm; DP master module: 35 mm |
| Height | 119.5 mm |
| Depth | 75 mm |
| Weight, approx. | 200 g; DP master module: Approx. 100 g |
