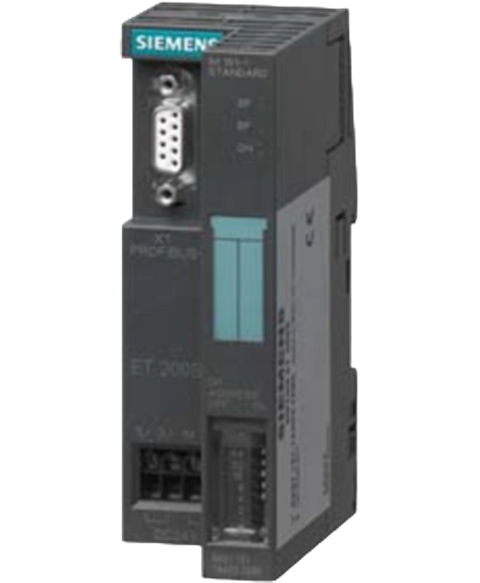

Siemens 6ES71511AA060AB0
SIMATIC DP, Interface module IM 151-1 Standard for ET 200S; incl. termination module Data volume of 244 bytes each for inputs and outputs; max. 63 I,O modules PROFIBUS DP V0 and V1 up to 2 m width can be connected; Bus connection via 9-pin D-sub
This Siemens 6ES71511AA060AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27100004926.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | IM 151-1 ST |
| Vendor identification (VendorID) | 806Ah |
| Isochronous mode | No |
| Mains/voltage failure stored energy time | 20 ms |
| from supply voltage 1L+, max. | 200 mA |
| Power loss, typ. | 3.3 W |
| Inputs | 244 byte |
| Outputs | 244 byte |
| Transmission procedure | RS 485 |
| Transmission rate, max. | 12 Mbit/s; 9,6 / 19,2 / 45,45 / 93,75 / 187,5 / 500 kbit/s; 1,5 / 3 / 6 / 12 Mbit/s |
| Cable length, max. | 1 200 m |
| RS 485 | Yes |
| Output current of the interface, max. | 80 mA |
| Design of the connection | 9-pin sub D socket |
| Supports protocol for PROFINET IO | No |
| PROFIBUS DP | Yes |
| — SYNC capability | Yes |
| — FREEZE capability | Yes |
| — Direct data exchange (slave-to-slave communication) | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| Bus fault BF (red) | Yes |
| Group error SF (red) | Yes |
| Monitoring 24 V voltage supply ON (green) | Yes |
| between backplane bus and electronics | No |
| between electronic block and PROFIBUS DP | Yes |
| between supply voltage and electronics | No |
| Isolation tested with | 500 V DC |
| CE mark | Yes |
| UL approval | Yes |
| min. | 0 °C |
| max. | 60 °C |
| Width | 45 mm |
| Height | 119.5 mm |
| Depth | 75 mm |
| Weight, approx. | 150 g |
