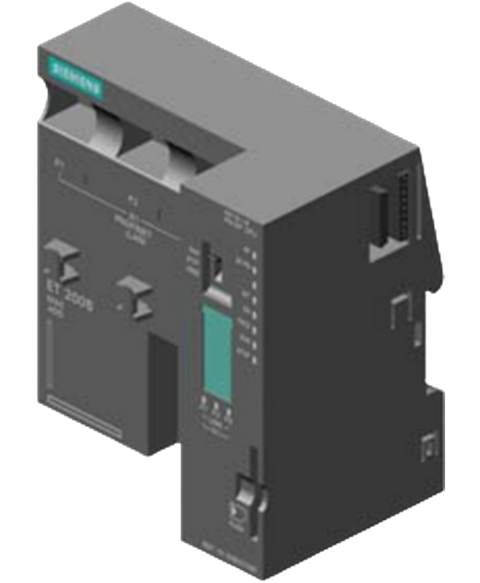

Siemens 6ES7151-8AB01-0AB0
The SIMATIC 6ES7151-8AB01-0AB0 is presented as an interface module designed for communication in industrial settings. This model offers substantial work memory of 192 KB and retentive memory of 64 KB.
This Siemens 6ES7151-8AB01-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801435706.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,512.29
(inc. GST)
In Stock
| HW functional status | 01 |
| Firmware version | V3.2 |
| Isochronous mode | No |
| Programming package | as of STEP 7 V5.5 or as of STEP 7 TIA Portal V11 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes; against destruction |
| external protection for power supply lines (recommendation) | 2 A min. |
| Mains/voltage failure stored energy time | 5 ms |
| Inrush current, typ. | 1.8 A |
| I²t | 0.13 A²·s |
| from supply voltage 1L+, max. | 352 mA; 426 mA with DP master module |
| for backplane bus (5 V DC), max. | 700 mA |
| Power loss, typ. | 5.5 W |
| integrated | 192 kbyte |
| expandable | No |
| Plug-in (MMC) | Yes |
| Plug-in (MMC), max. | 8 Mbyte |
| Data management on MMC (after last programming), min. | 10 a |
| present | Yes; Ensured by SIMATIC Micro Memory Card (maintenance-free)Yes |
| for bit operations, typ. | 0.06 µs |
| for word operations, typ. | 0.12 µs |
| for fixed point arithmetic, typ. | 0.16 µs |
| for floating point arithmetic, typ. | 0.59 µs |
| Number of blocks (total) | 1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used. |
| Number, max. | 1 024; Number range: 1 to 160001 024; Number range: 0 to 7999See S7-300 operation list |
| Size, max. | 64 kbyte256 byte |
| Number of free cycle OBs | 1; OB 1 |
| Number of time alarm OBs | 1; OB 10 |
| Number of delay alarm OBs | 2; OB 20, 21 |
| Number of cyclic interrupt OBs | 4; OB 32, 33, 34, 35 |
| Number of process alarm OBs | 1; OB 40 |
| Number of DPV1 alarm OBs | 3; OB 55, 56, 57 |
| Number of isochronous mode OBs | 1; OB 61; only for PROFINET |
| Number of startup OBs | 1; OB 100 |
| Number of asynchronous error OBs | 6; OB 80, 82, 83, 85, 86, 87 (OB83 only for centralized I/O and PROFINET IO) |
| Number of synchronous error OBs | 2; OB 121, 122 |
| per priority class | 16 |
| additional within an error OB | 4 |
| Number | 256Unlimited (limited only by RAM capacity)1 |
| — adjustable | YesNo |
| — preset | Z 0 to Z 7No retentivity |
| — lower limit | 010 ms |
| — upper limit | 9999 990 s |
| Type | SFB |
| Retentive data area (incl. timers, counters, flags), max. | 64 kbyte |
| Retentivity available | Yes |
| Retentivity preset | MB 0 to MB 15Yes |
| Number of clock memories | 8; 1 memory byte |
| Retentivity adjustable | Yes; via non-retain property on DB |
| per priority class, max. | 32 768 byte; Max. 2048 bytes per block |
| Inputs | 2 048 byte16 3361 021 |
| Outputs | 2 048 byte16 3361 021 |
| — Inputs | 2 048 byte |
| — Outputs | 2 048 byte |
| Inputs, adjustable | 2 048 byte |
| Outputs, adjustable | 2 048 byte |
| Inputs, default | 128 byte |
| Outputs, default | 128 byte |
| Number of subprocess images, max. | 1; With PROFINET IO, the length of the user data is limited to 1600 bytes |
| — of which central | 496124 |
| Number of modules per system, max. | 63; Centralized |
| Number of mounting rails that can be used | 1 |
| Length of mounting rail, max. | Station width: ≤ 1 m or < 2 m |
| Hardware clock (real-time) | Yes |
| retentive and synchronizable | Yes |
| Backup time | 6 wk; At 40 °C ambient temperature, typically |
| Deviation per day, max. | 10 s; Typ.: 2 s |
| Behavior of the clock following POWER-ON | Clock continues running after POWER OFF |
| Behavior of the clock following expiry of backup period | the clock continues at the time of day it had when power was switched off |
| Number/Number range | 0 |
| Range of values | 0 to 2^31 hours (when using SFC 101) |
| Granularity | 1 h |
| retentive | Yes; Must be restarted at each restart |
| supported | YesNoYes; I blocks |
| to MPI, master | No |
| on MPI, device | No |
| to DP, master | Yes; With DP master module |
| on DP, device | Yes; With DP master module |
| in AS, master | No |
| in AS, device | No |
| on Ethernet via NTP | Yes; As client |
| Interfaces/bus type | 1x PROFINET (3 RJ45 ports) |
| Interface type | PROFINETExternal interface via master module 6ES7138-4HA00-0AB0 |
| Isolated | Yes |
| automatic detection of transmission rate | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Change of IP address at runtime, supported | Yes |
| RJ 45 (Ethernet) | Yes |
| Number of ports | 3; RJ45 |
| integrated switch | Yes |
| MPI | No |
| PROFINET IO Controller | Yes; Also simultaneously with IO-Device functionalityNo |
| PROFINET IO Device | Yes; Also simultaneously with IO Controller functionalityNo |
| PROFINET CBA | YesNo |
| PROFIBUS DP master | NoYes |
| PROFIBUS DP device | No |
| Open IE communication | Yes; Via TCP/IP, ISO on TCP, and UDPNo |
| Web server | YesNo |
| Point-to-point connection | No |
| Transmission rate, max. | 100 Mbit/s; full duplex12 Mbit/s |
| — PG/OP communication | Yes |
| — Routing | Yes; With DP master moduleYes |
| — S7 communication | Yes; with loadable FBsYes |
| — Isochronous mode | Yes; OB 61; only for PROFINET IONo |
| — IRT | Yes |
| — Shared device | Yes |
| — Prioritized startup | Yes |
| — Number of IO devices with prioritized startup, max. | 32 |
| — Number of connectable IO Devices, max. | 128 |
| — Of which IO devices with IRT, max. | 64 |
| — of which in line, max. | 6461128 |
| — Number of IO Devices with IRT and the option "high flexibility" | 128 |
| — Number of connectable IO Devices for RT, max. | 128 |
| — Activation/deactivation of IO Devices | Yes |
| — Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 |
| — IO Devices changing during operation (partner ports), supported | Yes |
| — Number of IO Devices per tool, max. | 8 |
| — Device replacement without swap medium | Yes |
| — Send cycles | 250 μs, 500 μs,1 ms; 2 ms, 4 ms (not in the case of IRT with "high flexibility" option) |
| — Updating time | Minimum value depends on communication share set for PROFINET I/O, on the number of I/O devices, and on the number of configured user data items. |
| — Updating times | 250 µs to 512 ms (depends on operating mode; for more details, refer to Operating Instructions, "Interface Module IM151-8 PN/DP CPU") |
| — Inputs, max. | 2 kbyte1 440 byte; Per IO Controller with shared device2 048 byte244 byte |
| — Outputs, max. | 2 kbyte1 440 byte; Per IO Controller with shared device2 048 byte244 byte |
| — User data consistency, max. | 1 024 byte; with PROFINET I/O |
| — PROFIenergy | Yes; With SFB 73 / 74 prepared for loadable PROFIenergy standard FB for I-Device |
| — Number of IO Controllers with shared device, max. | 2 |
| — Number, max. | 64 |
| — User data per submodule, max. | 1 024 byte |
| acyclic transmission | Yes |
| cyclic transmission | Yes |
| Number of connections, max. | 8 |
| Local port numbers used at the system end | 0, 20, 21, 23, 25, 80, 102, 135, 161, 443, 8080, 34962, 34963, 34964, 65532, 65533, 65534, 65535 |
| RS 485 | Yes |
| Output current of the interface, max. | No |
| max. number of DP devices | 32; Per station |
| — Global data communication | No |
| — S7 basic communication | Yes; I blocks only |
| — S7 communication, as client | No |
| — S7 communication, as server | Yes |
| — Equidistance | Yes |
| — SYNC/FREEZE | Yes |
| — activation/deactivation of DP devices | Yes |
| — max. number of DP devices that can be activated/deactivated at the same time | 8 |
| — Direct data exchange (slave-to-slave communication) | Yes |
| — DPV1 | Yes |
| — MRP | Yes |
| — Switchover time on line break, typ. | 200 ms; PROFINET MRP |
| — Number of stations in the ring, max. | 50 |
| TCP/IP | Yes; via integrated PROFINET interface and loadable FBs |
| — Number of connections, max. | 8 |
| — Data length for connection type 01H, max. | 1 460 byte |
| — Data length for connection type 11H, max. | 32 768 byte |
| — several passive connections per port, supported | Yes |
| ISO-on-TCP (RFC1006) | Yes; via integrated PROFINET interface and loadable FBs |
| — Data length, max. | 32 768 byte1 472 byte |
| UDP | Yes; via integrated PROFINET interface and loadable FBs |
| User-defined websites | Yes |
| Number of HTTP clients | 5 |
| PG/OP communication | Yes |
| Data record routing | Yes; With DP master module |
| User data per job, max. | 76 byteSee online help of STEP 7 (shared parameters of the SFBs/FBs and of the SFCs/FCs of S7 Communication) |
| User data per job (of which consistent), max. | 76 byte |
| as server | Yes |
| as client | Yes; via integrated PROFINET interface and loadable FBs |
| Setpoint for the CPU communication load | 50 % |
| Number of remote interconnection partners | 32 |
| number of master/device functions | 30 |
| total of all master/device connections | 1 000 |
| data length of all incoming master/device connections, max. | 4 000 byte |
| data length of all outgoing master/device connections, max. | 4 000 byte |
| Number of device-internal and PROFIBUS interconnections | 500 |
| Data length of device-internal und PROFIBUS interconnections, max. | 4 000 byte |
| Data length per connection, max. | 1 400 byte |
| — Transmission frequency: Transmission interval, min. | 1 ms |
| — Number of incoming interconnections | 200 |
| — Number of outgoing interconnections | 200 |
| — Data length of all incoming interconnections, max. | 2 000 byte |
| — Data length of all outgoing interconnections, max. | 2 000 byte |
| — Data length per connection, max. | 450 byte240 byte; Slave-dependent |
| — Number of stations that can log on for HMI variables (PN OPC/iMap) | 3; 2x PN OPC/1x iMap |
| — HMI variable updating | 500 ms |
| — Number of HMI variables | 200 |
| — Data length of all HMI variables, max. | 2 000 byte |
| — supported | Yes |
| — Number of linked PROFIBUS devices | 16 |
| overall | 12 |
| usable for PG communication | 11 |
| — reserved for PG communication | 1 |
| — adjustable for PG communication, min. | 1 |
| — adjustable for PG communication, max. | 11 |
| usable for OP communication | 11 |
| — reserved for OP communication | 1 |
| — adjustable for OP communication, min. | 1 |
| — adjustable for OP communication, max. | 11 |
| usable for S7 basic communication | 10 |
| — reserved for S7 basic communication | 0 |
| — adjustable for S7 basic communication, min. | 0 |
| — adjustable for S7 basic communication, max. | 10 |
| usable for S7 communication | 10; with loadable FBs |
| — adjustable for S7 communication, max. | 10 |
| total number of instances, max. | 32 |
| usable for routing | 4; With DP master module |
| Number of login stations for message functions, max. | 12; Depending on the configured connections for PG/OP and S7 basic communication |
| Process diagnostic messages | Yes; ALARM_S, ALARM_SC, ALARM_SQ, ALARM_D, ALARM_DQ |
| simultaneously active Alarm_S blocks, max. | 300 |
| Status block | Yes; Up to 2 simultaneously |
| Single step | Yes |
| Number of breakpoints | 4 |
| Status/control variable | Yes |
| Variables | Inputs, outputs, memory bits, DB, times, counters |
| Number of variables, max. | 3010 |
| — of which status variables, max. | 30 |
| — of which control variables, max. | 14 |
| Forcing | Yes |
| Forcing, variables | I/O |
| Number of entries, max. | 500 |
| — of which powerfail-proof | 100; Only the last 100 entries are retained |
| Alarms | Yes |
| Diagnostics function | Yes |
| for maintenance | Yes; MT |
| Bus fault BF (red) | Yes; BF-PN |
| Group error SF (red) | Yes |
| Monitoring 24 V voltage supply ON (green) | Yes |
| Bus activity PROFINET (green) | Yes; P1-/P2-/P3-Link |
| between PROFIBUS DP and all other circuit components | Yes |
| Isolation tested with | 500 V DC |
| IP degree of protection | IP20 |
| STEP 7 | Yes; V5.5 or higher |
| Command set | see instruction list |
| Nesting levels | 8 |
| System functions (SFC) | see instruction list |
| System function blocks (SFB) | see instruction list |
| — LAD | Yes |
| — FBD | Yes |
| — STL | Yes |
| — SCL | Yes; Optional |
| — CFC | Yes; Optional |
| — GRAPH | Yes; Optional |
| — HiGraph® | Yes; Optional |
| User program protection/password protection | Yes |
| Block encryption | Yes; With S7 block Privacy |
| lower limit | 1 ms |
| upper limit | 6 000 ms |
| adjustable | Yes |
| preset | 150 ms |
| Width | 120 mm; DP master module: 35 mm |
| Height | 119.5 mm |
| Depth | 75 mm |
| Weight, approx. | 320 g; DP master module: Approx. 100 g |
Struggling to find what you're looking for?
Can’t find what you’re looking for? Get in touch — we can source it for you.
