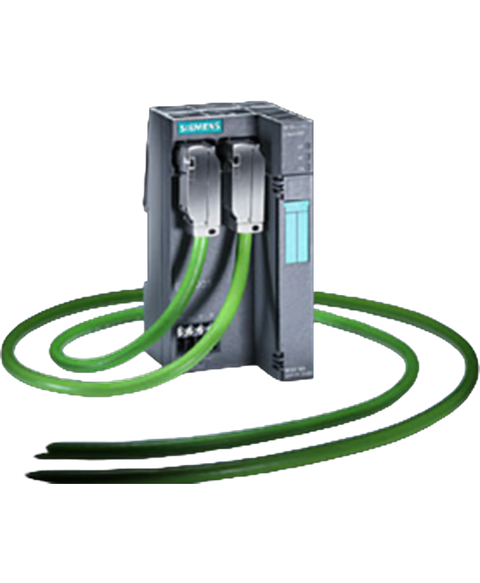

Siemens 6ES7151-3AA23-0AB0
The Siemens 6ES7151-3AA23-0AB0 interface module is designed for efficient connectivity. Operating with an input current of 200 A, it supports high-speed data transfer via the PROFINET communication protocol.
This Siemens 6ES7151-3AA23-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805658529.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | IM 151-3 PN ST |
| via dataset | Yes |
| Mains/voltage failure stored energy time | 20 ms |
| from supply voltage 1L+, max. | 200 mA |
| Power loss, typ. | 3.3 W |
| Inputs | 256 byte |
| Outputs | 256 byte |
| Number of PROFINET interfaces | 1 |
| Transmission rate, max. | 100 Mbit/s |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| RJ 45 (Ethernet) | Yes |
| Number of ports | 2 |
| — IRT | Yes |
| — Prioritized startup | Yes |
| — Shared device | Yes |
| — Number of IO Controllers with shared device, max. | 2 |
| Supports protocol for PROFINET IO | Yes |
| SNMP | Yes |
| LLDP | Yes |
| ping | Yes |
| ARP | Yes |
| — MRP | Yes |
| LINK LED | Yes |
| Bus fault BF (red) | Yes |
| Group error SF (red) | Yes |
| Monitoring 24 V voltage supply ON (green) | Yes |
| between backplane bus and electronics | No |
| between supply voltage and electronics | No |
| between Ethernet and electronics | Yes |
| Isolation tested with | 500 V |
| CE mark | Yes |
| UL approval | Yes |
| min. | 0 °C |
| max. | 60 °C |
| Width | 60 mm |
| Height | 119.5 mm |
| Depth | 75 mm |
| Weight, approx. | 150 g |
