Siemens 6ES7151-1CA00-3BL0

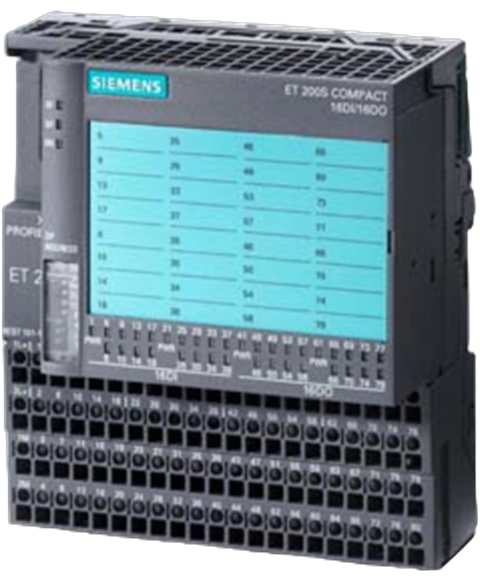

Siemens 6ES7151-1CA00-3BL0 interface module, ET200S, 16DI,16DO.
This Siemens 6ES7151-1CA00-3BL0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26842812490.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Vendor identification (VendorID) | 8200H |
| Isochronous mode | No |
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes |
| from supply voltage 1L+, max. | 100 mA |
| Power loss, typ. | 3 W |
| Inputs | 100 byte |
| Outputs | 100 byte |
| Number of digital inputs | 16 |
| Type of input voltage | DC |
| for signal "0" | -30 to +5 V |
| for signal "1" | 13 to 30V |
| for signal "1", typ. | 3 mA |
| — at "0" to "1", min. | 1.2 ms; typically 3 ms |
| — at "0" to "1", max. | 4.8 ms; typically 3 ms |
| — at "1" to "0", min. | 1.2 ms; typically 3 ms |
| — at "1" to "0", max. | 4.8 ms; typically 3 ms |
| unshielded, max. | 1 000 m |
| Number of digital outputs | 16 |
| Short-circuit protection | Yes |
| Limitation of inductive shutdown voltage to | L+ (-55 to -60 V) |
| Controlling a digital input | Yes |
| on lamp load, max. | 5 W10 Hz |
| for signal "1", min. | L+ (-0.8 V) |
| for signal "1" permissible range, min. | 7 mA |
| for signal "1" permissible range, max. | 0.6 A |
| for signal "0" residual current, max. | 0.5 mA |
| "0" to "1", max. | 0.5 ms |
| "1" to "0", max. | 1.3 ms |
| with resistive load, max. | 100 Hz |
| with inductive load, max. | 2 Hz |
| — up to 60 °C, max. | 2 A |
| 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| RS 485 | Yes |
| Output current of the interface, max. | 80 mA |
| Transmission rate, max. | 12 Mbit/s |
| Cable length, max. | 1 200 m |
| Supports protocol for PROFINET IO | No |
| PROFIBUS DP | Yes |
| TCP/IP | No |
| — Direct data exchange (slave-to-slave communication) | Yes |
| Alarms | No |
| Diagnostics function | Yes |
| Bus fault BF (red) | Yes |
| Group error SF (red) | Yes |
| Status indicator digital input (green) | Yes |
| Status indicator digital output (green) | Yes |
| Monitoring 24 V voltage supply ON (green) | Yes |
| between backplane bus and electronics | No |
| between supply voltage and electronics | No |
| Potential separation digital inputs | No |
| Potential separation digital outputs | Yes |
| Isolation tested with | 500 V DC |
| IP degree of protection | IP20 |
| Design of electrical connection for the inputs and outputs | Screw-type and spring-loaded terminals, permanent wiring; 3 and 4-wire connection |
| Width | 120 mm |
| Height | 81 mm |
| Depth | 58 mm |
| Weight, approx. | 230 g; EB only |
