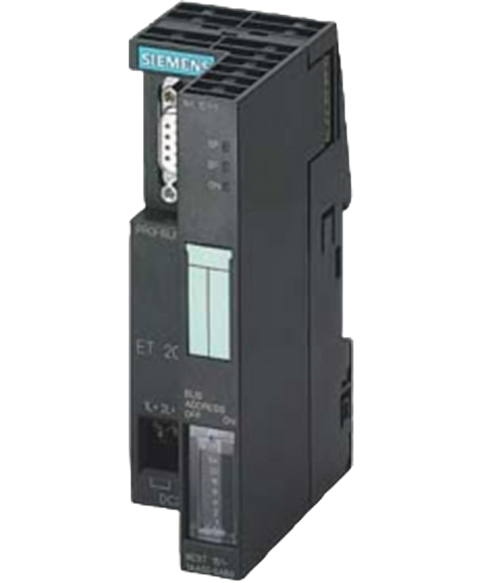

Siemens 6ES7151-1BA02-0AB0
The Siemens 6ES7151-1BA02-0AB0 is an interface module belonging to the SIMATIC series. This module operates in isochronous mode and typically consumes 3.3 Watts of power during operation. It has a maximum input,output capacity of 64 points.
This Siemens 6ES7151-1BA02-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805533837.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | IM 151-1 HF |
| Isochronous mode | Yes |
| Mains/voltage failure stored energy time | 20 ms |
| from supply voltage 1L+, max. | 200 mA |
| Power loss, typ. | 3.3 W |
| Inputs | 244 byte |
| Outputs | 244 byte |
| Transmission procedure | RS 485 |
| Transmission rate, max. | 12 Mbit/s |
| Supports protocol for PROFINET IO | No |
| PROFIBUS DP | Yes |
| — SYNC capability | Yes |
| — FREEZE capability | Yes |
| — Direct data exchange (slave-to-slave communication) | Yes |
| Alarms | Yes |
| Diagnostics function | Yes |
| Bus fault BF (red) | Yes |
| Group error SF (red) | Yes |
| Monitoring 24 V voltage supply ON (green) | Yes |
| between backplane bus and electronics | No |
| between electronic block and PROFIBUS DP | Yes |
| between supply voltage and electronics | No |
| Isolation tested with | 500 V DC |
| CE mark | Yes |
| UL approval | Yes |
| min. | 0 °C |
| max. | 60 °C |
| Width | 45 mm |
| Height | 119.5 mm |
| Depth | 75 mm |
| Weight, approx. | 150 g |
