Siemens 6ES71426BH000AB0

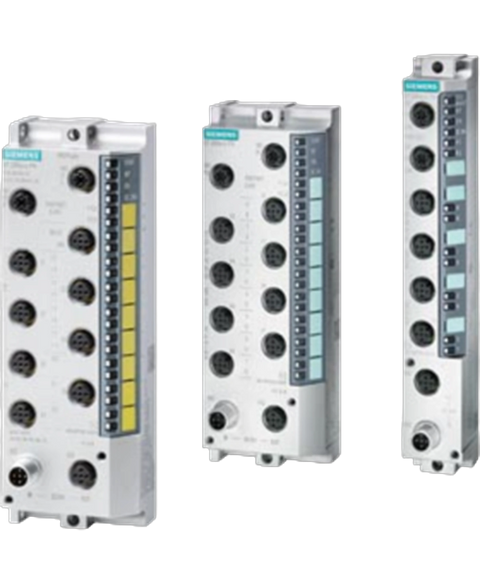

SIMATIC DP, ET 200ECO PN, 16 DO 24V DC,1,3A; 8 X M12, DOUBLE-ASSIGNEMENT DEGREE OF PROTECTION IP67
This Siemens 6ES71426BH000AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27099973464.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Vendor identification (VendorID) | 002AH |
| Device identifier (DeviceID) | 0306H |
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes |
| power supply according to NEC Class 2 required | Yes |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption, typ. | 100 mA |
| from supply voltage 1L+, max. | 4 A |
| from load voltage 1L+ (unswitched voltage) | 4 A |
| from load voltage 2L+, max. | 4 A |
| Power loss, typ. | 5.5 W |
| Number of digital outputs | 16 |
| in groups of | 8 |
| Short-circuit protection | Yes |
| Response threshold, typ. | 1.8 A |
| Limitation of inductive shutdown voltage to | Typ. (L1+, L2+) -47 V |
| Controlling a digital input | Yes |
| on lamp load, max. | 5 W1 Hz |
| for signal "1" rated value | 1.3 A; Maximum |
| for signal "0" residual current, max. | 1.5 mA |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 100 Hz |
| with inductive load, max. | 0.5 Hz |
| — up to 60 °C, max. | 3.9 A |
| unshielded, max. | 30 m |
| Transmission procedure | 100BASE-TX |
| Number of PROFINET interfaces | 1 |
| integrated switch | Yes |
| — IRT with the option "high flexibility" | Yes |
| — Prioritized startup | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Transmission rate, max. | 100 Mbit/s |
| Supports protocol for PROFINET IO | Yes |
| PROFINET CBA | No |
| PROFIsafe | No |
| — MRP | Yes |
| TCP/IP | No |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| ping | Yes |
| ARP | Yes |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Diagnostic information readable | Yes |
| Monitoring the supply voltage | Yes; green "ON" LED |
| Wire-break in actuator cable | Yes |
| Short-circuit | Yes |
| Group error | Yes; Red/yellow "SF/MT" LED |
| between the load voltages | Yes |
| between load voltage and all other switching components | No |
| between Ethernet and electronics | Yes |
| between the channels | No |
| 24 V DC circuits | 707 V DC (type test) |
| Test voltage for interface, rms value [Vrms] | 1 500 V; According to IEEE 802.3 |
| IP degree of protection | IP65/67 |
| Suitable for safety-related tripping of standard modules | Yes |
| Performance level according to ISO 13849-1 | PL d |
| Category according to ISO 13849-1 | Cat. 3 |
| SIL acc. to IEC 62061 | SIL 2 |
| remark on safety-oriented shutdown | https://support.industry.siemens.com/cs/de/en/view/39198632 |
| Explosion protection category for gas | ATEX II 3G Ex nA II T4 |
| Explosion protection category for dust | ATEX II 3D Ex tc IIIC T90°C Dc |
| Design of electrical connection | 4/5-pin M12 circular connectors |
| Width | 60 mm |
| Height | 175 mm |
| Depth | 49 mm |
| Weight, approx. | 910 g |
