Siemens 6ES71423BH000XA0

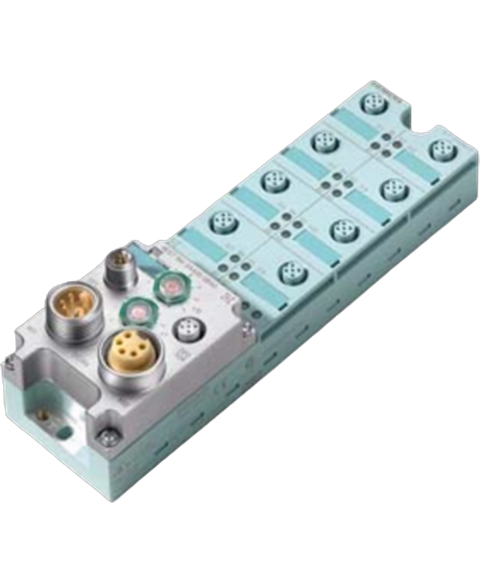

SIMATIC DP, basic module BM 142 ET 200ECO: 16 DO 24 V DC,0.5A, 8xM12, Duplicate assignment, IP65,67, Connection block 6ES7194-3AA00-0.A0 order separately
This Siemens 6ES71423BH000XA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27099963504.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Vendor identification (VendorID) | 80FBh |
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes |
| from supply voltage 1L+, max. | 70 mA; Typical |
| from load voltage 2L+ (without load), max. | 80 mA; Typical |
| Power loss, typ. | 4 W |
| Number of digital outputs | 16 |
| Short-circuit protection | Yes |
| Response threshold, typ. | 1.4 A; Per channel |
| Limitation of inductive shutdown voltage to | 2L+ (-47 V) |
| Controlling a digital input | Yes |
| on lamp load, max. | 5 W1 Hz |
| lower limit | 12 Ω |
| upper limit | 4 kΩ |
| for signal "1", min. | 2L+ (-0,8 V) |
| for signal "1" rated value | 0.5 A |
| for signal "1" permissible range for 0 to 55 °C, min. | 5 mA |
| for signal "1" permissible range for 0 to 55 °C, max. | 1 A |
| for signal "0" residual current, max. | 0.1 mA |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 100 Hz |
| with inductive load, max. | 0.5 Hz; According to IEC 60947-5-1, DC-13 |
| — up to 55 °C, max. | 4 A; Please note the current carrying capacity of the cable! |
| unshielded, max. | 30 m |
| Transmission rate, max. | 12 Mbit/s; 9,6 / 19,2 / 45,45 / 93,75 / 187,5 / 500 kbit/s; 1,5 / 3 / 6 / 12 Mbit/s |
| PROFIBUS DP | Yes |
| Alarms | No |
| Diagnostic information readable | Yes |
| Group error SF (red) | Yes |
| Status indicator digital output (green) | Yes |
| Channel fault indicator F (red) | No |
| between PROFIBUS DP and all other circuit components | Yes |
| between the channels | No |
| between different circuits | 75 V DC/60 V AC |
| Isolation tested with | 500 V DC |
| IP degree of protection | IP65/67 |
| Design of electrical connection | 4/5-pin M12 circular connectors |
| Width | 60 mm |
| Height | 210 mm |
| Depth | 28 mm |
| Weight, approx. | 210 g |
