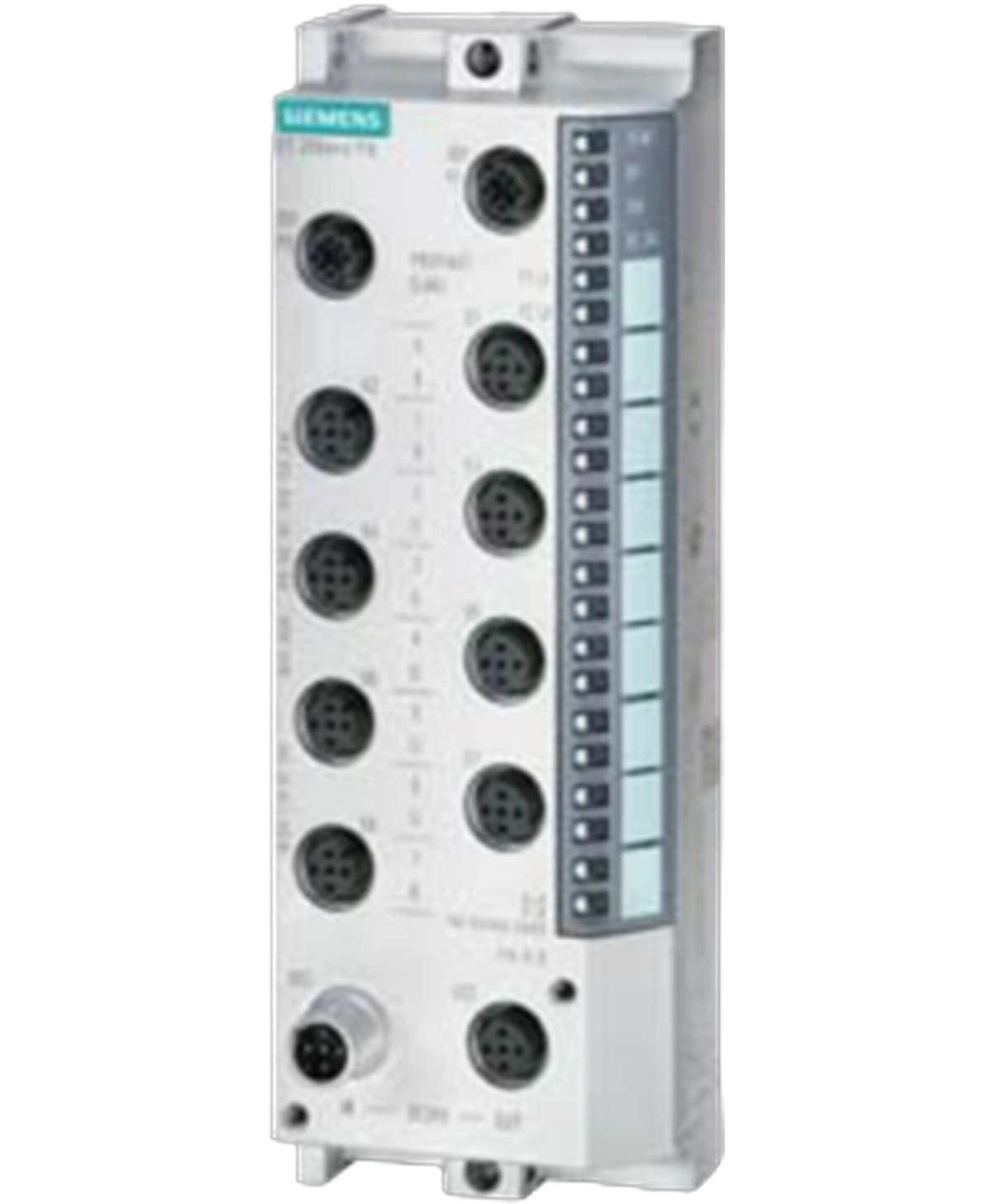

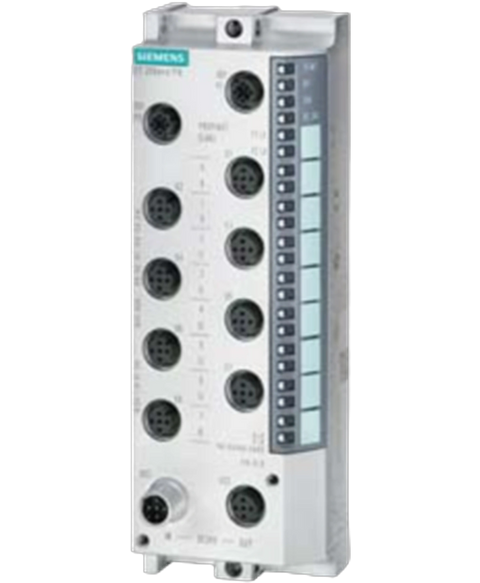

Siemens 6ES7141-6BH00-0AB0
Siemens 6ES71416BH000AB0 ET200eco PN digital input module, 16DI, IP67.
This Siemens 6ES7141-6BH00-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26946839474.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Vendor identification (VendorID) | 002AH |
| Device identifier (DeviceID) | 0306H |
| Rated value (DC) | 24 V |
| Reverse polarity protection | Yes |
| power supply according to NEC Class 2 required | Yes |
| Current consumption, typ. | 100 mA |
| from supply voltage 1L+, max. | 4 A |
| Number of outputs | 8 |
| Short-circuit protection | Yes; Electronic |
| Output current, max. | 100 mA; per output |
| Power loss, typ. | 6.5 W |
| Number of digital inputs | 16 |
| in groups of | 2 |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes |
| — up to 60 °C, max. | 16 |
| for signal "0" | -3 to +5V |
| for signal "1" | +11 to +30V |
| for signal "1", typ. | 7 mA |
| — at "0" to "1", max. | typically 3 ms |
| — at "1" to "0", max. | typically 3 ms |
| unshielded, max. | 30 m |
| 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| Transmission procedure | 100BASE-TX |
| Number of PROFINET interfaces | 1 |
| M12 port | Yes |
| integrated switch | Yes |
| — IRT with the option "high flexibility" | Yes |
| — Prioritized startup | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Transmission rate, max. | 100 Mbit/s |
| Supports protocol for PROFINET IO | Yes |
| PROFINET CBA | No |
| PROFIsafe | No |
| — MRP | Yes |
| TCP/IP | No |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| ping | Yes |
| ARP | Yes |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Diagnostic information readable | Yes |
| Monitoring the supply voltage | Yes; green "ON" LED |
| Wire-break in signal transmitter cable | Yes |
| Short-circuit encoder supply | Yes; Per channel group |
| Group error | Yes; Red/yellow "SF/MT" LED |
| between the load voltages | Yes |
| between load voltage and all other switching components | No |
| between Ethernet and electronics | Yes |
| between the channels | No |
| 24 V DC circuits | 707 V DC (type test) |
| Test voltage for interface, rms value [Vrms] | 1 500 V; According to IEEE 802.3 |
| IP degree of protection | IP65/67 |
| Explosion protection category for gas | ATEX II 3G Ex nA II T4 |
| Explosion protection category for dust | ATEX II 3D Ex tc IIIC T90°C Dc |
| Design of electrical connection | 4/5-pin M12 circular connectors |
| Width | 60 mm |
| Height | 175 mm |
| Depth | 49 mm |
| Weight, approx. | 910 g |
