Siemens 6ES71384DB030AB0

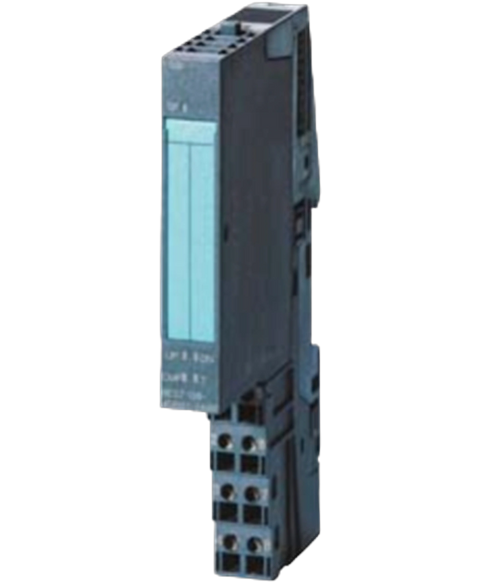

SIMATIC DP, ELECTRONIC MODULE F. ET 200S, 1 SSI 25BIT,1MHZ 15MM WIDE MODULE FOR CONN. OF ABSOLUTE ENCODERS WITH SSI INTERFACE SYNCHRONOUS SERIAL INTERFACE WITH DI AND COMPAR. VALUE WITH CLOCK CYCLIC SYNCHRON. APP
This Siemens 6ES71384DB030AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27095989166.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 40 mA |
| from backplane bus 3.3 V DC, max. | 10 mA |
| 24 V | Yes |
| Short-circuit protection | Yes |
| Output current, max. | 500 mA |
| Absolute encoder (SSI) | Yes |
| Type of output voltage | L+ (-0.8 V) |
| Power loss, typ. | 1 W |
| Module exchange during operation of the IM-DP | Yes |
| Module exchange under process voltage | Yes |
| Number of digital inputs | 1 |
| for signal "0" | -30 to +5 V |
| for signal "1" | +11 to +30V |
| for signal "0", max. (permissible quiescent current) | 2 mA |
| for signal "1", typ. | 9 mA |
| — at "0" to "1", max. | 300 µs |
| — at "1" to "0", max. | 300 µs |
| shielded, max. | 50 m |
| Number of connectable encoders, max. | 1 |
| 2-wire sensor | Yes; Type 2 |
| Input signal | to RS-422 |
| Telegram length, parameterizable | 13, 14, 16, 21, 24 & 25 bit |
| Binary code | Yes |
| Gray code | Yes |
| Cable length, shielded, max. | 320 m; At 125 kHz |
| Monoflop time | 16/32/48/64 µs |
| Group error SF (red) | Yes |
| Status indicator digital input (green) | Yes |
| Status indicator forward counting (green) | Yes |
| Status indicator backward counting (green) | Yes |
| Potential separation digital inputs | No; same potential with L+ and SSI |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | No |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 40 g |
