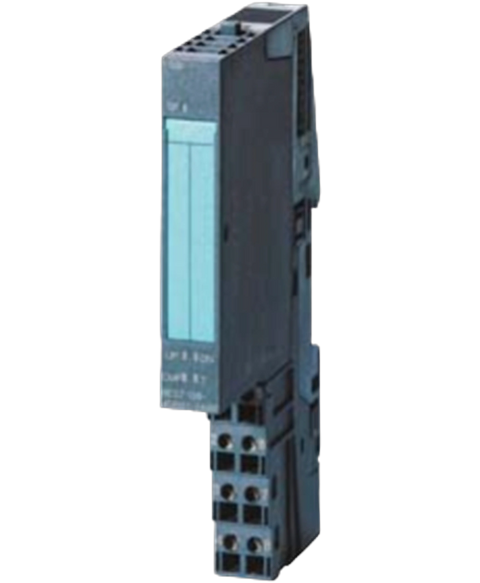

Siemens 6ES71384DA040AB0
SIMATIC DP, Electronics module for ET 200S, 1 count 24 V,100 kHz 15 mm installation width, operating modes: Count, Measure, (cycle duration measurement, high-resolution) with clock synchronization
This Siemens 6ES71384DA040AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27095923697.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 42 mA |
| from backplane bus 3.3 V DC, max. | 10 mA |
| 24 V | Yes; L+ (-0.8 V) |
| Short-circuit protection | Yes |
| Output current, max. | 500 mA |
| Power loss, typ. | 1 W |
| Module exchange during operation of the IM-DP | Yes |
| Module exchange under process voltage | Yes |
| Number of digital inputs | 1 |
| Functions | Gate control, synchronization, latch function |
| Input characteristic curve in accordance with IEC 61131, type 2 | Yes |
| for signal "0" | -30 to +5 V |
| for signal "1" | +11 to +30V |
| for signal "0", max. (permissible quiescent current) | 2 mA |
| for signal "1", typ. | 9 mA |
| — at "0" to "1", max. | 2.5 µs; Filter off: 2.5 µs (200 kHz), filter on: 25 µs (20 kHz) |
| shielded, max. | 100 m; Filter 20 kHz: 100 m, filter 200 kHz: 50 m1 000 m |
| Number of digital outputs | 1 |
| Response threshold, typ. | 2.6 A to 4 A |
| Limitation of inductive shutdown voltage to | L+ (-50 to -60 V) |
| Controlling a digital input | Yes |
| on lamp load, max. | 5 W10 Hz |
| for signal "0", max. | 3 V |
| for signal "1", min. | L+ (-1 V) |
| for signal "1" permissible range for 0 to 40 °C, min. | 5 mA |
| for signal "1" permissible range for 0 to 40 °C, max. | 2 000 mA |
| for signal "1" permissible range for 0 to 60 °C, min. | 5 mA |
| for signal "1" permissible range for 0 to 60 °C, max. | 500 mA; 1 000 mA at 50 °C |
| for signal "0" residual current, max. | 0.5 mA |
| "0" to "1", max. | 100 µs |
| with resistive load, max. | 100 Hz |
| with inductive load, max. | 2 Hz |
| unshielded, max. | 600 m |
| Number of connectable encoders, max. | 1 |
| Incremental encoder (asymmetrical) | Yes |
| 24 V initiator | Yes |
| 2-wire sensor | Yes |
| Diagnostics function | Yes |
| Group error SF (red) | Yes |
| Status indicator digital input (green) | Yes |
| Status indicator digital output (green) | Yes |
| Status indicator forward counting (green) | Yes |
| Status indicator backward counting (green) | Yes |
| — Frequency measurement, min. | 0.1 Hz |
| — Frequency measurement, max. | 100 kHz |
| — Cycle duration measurement, min. | 10 µs |
| — Cycle duration measurement, max. | 120 s |
| — Speed measurement, min. | 1 1/min |
| — Speed measurement, max. | 25 000 1/min |
| Number of counter inputs | 1; 32 bit |
| Minimum pulse width | 2.5 µs; Filter off: 2.5 µs (200 kHz), filter on: 25 µs (20 kHz) |
| Remark | 16 byte |
| Potential separation digital inputs | No; only opposite shielding |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | No |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 40 g |
