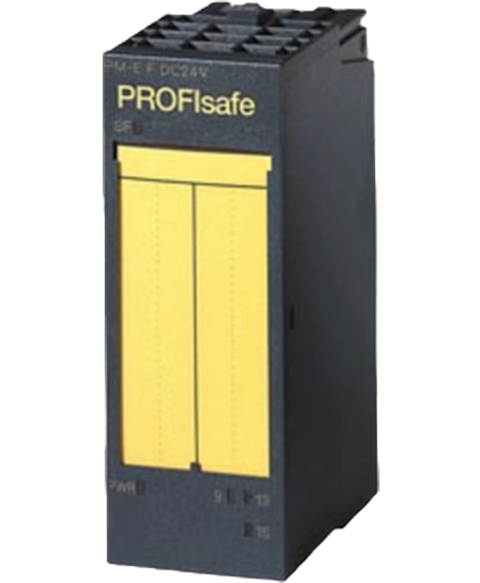

Siemens 6ES71384CF030AB0
SIMATIC DP, POWER MODULE PM-E F PROFISAFE, FOR ET 200S; 24V DC USEABLE FOR INSTALLATIONS WITH UNGROUNDED REFERENCE POTENTIAL RELAIS FOR FAIL-SAFE SWITCHING OF VOLTAGE BUSES P1 AND P2 UP TO CATEGORY 3 (EN954-1), SIL2 (IEC61508),PLD (ISO13849), 2 FAIL-SAFE DIGITAL OUTPUTS UP TO CATEGORY 4 (EN954-1), SIL3 (IEC61508),PLE (ISO13849), ALSO USEABLE IN PROFINET-NETWORKS W. IM151-3 HF
This Siemens 6ES71384CF030AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27095920942.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| Reverse polarity protection | No |
| From load voltage L+ (no load), typ. | 100 mA |
| from backplane bus 24 V DC, max. | 28 mA |
| Power loss, typ. | 4 W |
| Inputs | 5 byte |
| Outputs | 5 byte |
| Number of digital outputs | 2 |
| Short-circuit protection | Yes; Electronic |
| Response threshold, typ. | Response threshold (short-circuit): 5 to 12 A; response threshold (external short-circuit to ground): 5 to 12 A; response threshold (external short-circuit to P potential): 25 to 45 A |
| Limitation of inductive shutdown voltage to | L+ (-2x 47 V) |
| Controlling a digital input | No |
| on lamp load, max. | 10 W10 Hz |
| lower limit | 12 Ω |
| upper limit | 1 kΩ |
| for signal "1", min. | L+ (-2,0 V), current sourcing switch: L+ (-1,5 V), voltage drop on current sinking switch: max. 0.5 V |
| for signal "1" rated value | 2 A |
| for signal "1" permissible range for 0 to 60 °C, min. | 20 mA |
| for signal "1" permissible range for 0 to 60 °C, max. | 2.4 A |
| for signal "0" residual current, max. | 0.5 mA |
| for uprating | No |
| for redundant control of a load | No |
| with resistive load, max. | 30 Hz |
| with inductive load, max. | 0.1 Hz |
| — up to 40 °C, max. | 10 A6 A |
| — up to 55 °C, max. | 7 A |
| — up to 60 °C, max. | 6 A |
| — with resistive load, up to 50 °C, max. | 10 A |
| shielded, max. | 200 m |
| unshielded, max. | 200 m |
| Diagnostics function | Yes |
| Diagnostic information readable | Yes |
| Wire-break | Yes |
| Short-circuit | Yes |
| missing load voltage | Yes |
| Rated load voltage PWR (green) | Yes |
| Group error SF (red) | Yes |
| Status indicator digital output (green) | Yes |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | No |
| Isolation tested with | 500 V DC |
| acc. to EN 954 | 4 |
| Performance level according to ISO 13849-1 | e |
| SIL acc. to IEC 61508 | Up to SIL 3 |
| Width | 30 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 88 g |
