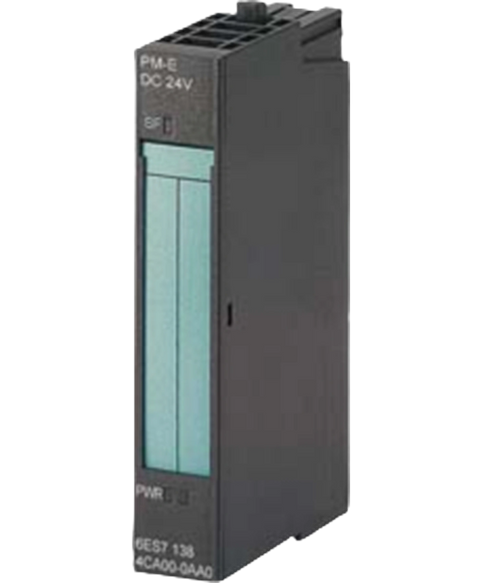

Siemens 6ES71384CA500AB0
SIMATIC DP, POWER MODULE PM-E FOR ET 200S; 24V-48V DC WITH DIAGNOSIS
This Siemens 6ES71384CA500AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27095909117.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 to 48 V DC |
| Short-circuit protection | No; external (e.g. automatic circuit breaker), tripping characteristic B, C |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 12 mA |
| up to 60 °C, max. | 10 A |
| Power loss, typ. | 0.5 W |
| missing load voltage | YesDisable / enable |
| Rated load voltage PWR (green) | Yes |
| Group error SF (red) | Yes |
| Remark | 3 byte |
| primary/secondary | Yes; between rated load voltage and backplane bus, between power modules |
| Isolation tested with | 500 V DC |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 35 g |
