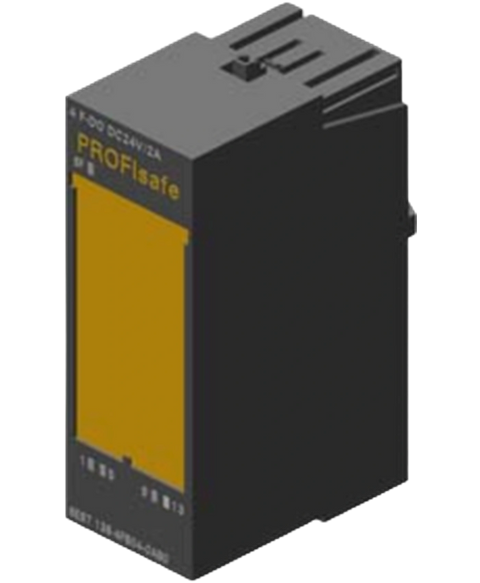

Siemens 6ES7138-4FB04-0AB0
The Siemens 6ES7138-4FB04-0AB0 is an electronics module designed for various automation applications. Operating at a supply voltage of 24 V DC, this module supports multiple digital output configurations with a capacity of 10 W per output.
This Siemens 6ES7138-4FB04-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805424130.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| Reverse polarity protection | No |
| From load voltage L+ (no load), typ. | 100 mA |
| from backplane bus 3.3 V DC, max. | 28 mA |
| Power loss, typ. | 3.5 W |
| Type of digital output | Transistor |
| Number of digital outputs | 4 |
| Short-circuit protection | Yes |
| Limitation of inductive shutdown voltage to | Typ. (2L+) -47 V |
| Controlling a digital input | No |
| on lamp load, max. | 10 W10 Hz; Symmetrical |
| lower limit | 12 Ω |
| upper limit | 1 kΩ |
| for signal "1", min. | L+ (-2,0 V), current sourcing switch: L+ (-1,5 V), voltage drop on current sinking switch: max. 0.5 V |
| for signal "1" rated value | 2 A |
| for signal "1" permissible range, min. | 20 mA |
| for signal "1" permissible range, max. | 2.4 A |
| for signal "0" residual current, max. | 0.5 mA; Current-sourcing and current-sinking switches |
| for uprating | No |
| for redundant control of a load | No |
| with resistive load, max. | 30 Hz; Symmetrical |
| with inductive load, max. | 0.1 Hz; Symmetrical |
| Current per module, max. | 6 A |
| — up to 40 °C, max. | 6 A4 A |
| — up to 55 °C, max. | 5 A |
| — up to 60 °C, max. | 4 A |
| shielded, max. | 500 m |
| unshielded, max. | 500 m |
| Diagnostics function | Yes |
| Wire-break | Yes |
| Short-circuit | Yes |
| Group error SF (red) | Yes |
| Status indicator digital output (green) | Yes |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | No |
| acc. to EN 954 | 4 |
| Performance level according to ISO 13849-1 | PLe |
| SIL acc. to IEC 61508 | SIL 3 |
| Width | 30 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 85 g |
