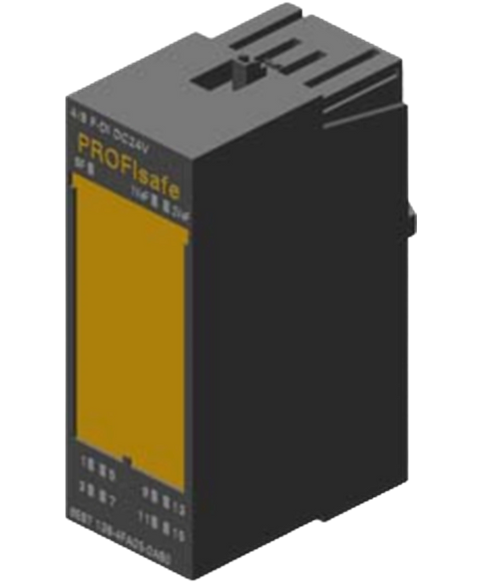

Siemens 6ES7138-4FA05-0AB0
The Siemens 6ES7138-4FA05-0AB0 is an electronic module designed for various industrial applications. With a rated voltage of 24 V DC, it supports two outputs and features eight digital inputs, making it suitable for complex control environments.
This Siemens 6ES7138-4FA05-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801463740.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| Number of outputs | 2 |
| Type of output voltage | min. L+ (-1.5 V) |
| Short-circuit protection | Yes; Electronic (response threshold 0.7 A to 1.8 A) |
| Rated value | 300 mA |
| permissible range, lower limit | 0 mA |
| permissible range, upper limit | 300 mA |
| Power loss, typ. | 4 W |
| Inputs | 6 byte |
| Outputs | 4 byte |
| Number of digital inputs | 8; 8 (one-channel); 4 (two-channel) |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Type of input voltage | DC |
| for signal "1", typ. | 3.7 mA |
| — parameterizable | Yes |
| — at "0" to "1", min. | 0.3 ms |
| — at "0" to "1", max. | 17 ms |
| — at "1" to "0", min. | 0.3 ms |
| — at "1" to "0", max. | 17 ms |
| shielded, max. | 500 m |
| unshielded, max. | 500 m |
| 2-wire sensor | No |
| — permissible quiescent current (2-wire sensor), max. | 0.6 mA; max. |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Diagnostic information readable | Yes |
| Short-circuit | Yes |
| Group error SF (red) | Yes |
| Status indicator digital input (green) | Yes |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | No |
| acc. to EN 954 | 4 |
| Performance level according to ISO 13849-1 | PLe |
| SIL acc. to IEC 61508 | SIL 2 (single-channel), SIL 3 (two-channel) |
| Width | 30 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 78 g |
