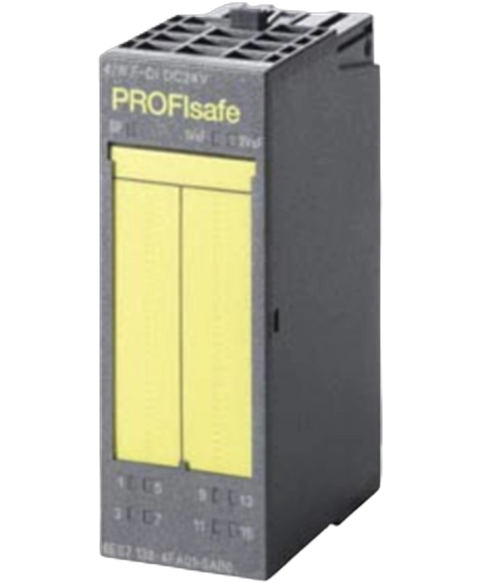

Siemens 6ES7138-4FA04-0AB0
The Siemens 6ES7138-4FA04-0AB0 is an electronics module designed for integration within various systems. It operates at a voltage of 24V DC and has a compact width of 30 mm, making it suitable for tight spaces.
This Siemens 6ES7138-4FA04-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801447330.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| Reverse polarity protection | No |
| Number of outputs | 2 |
| Type of output voltage | min. L+ (-1.5 V) |
| Short-circuit protection | Yes; Electronic (response threshold 0.7 A to 1.8 A) |
| Rated value | 300 mA |
| permissible range, lower limit | 0 mA |
| permissible range, upper limit | 300 mA |
| Power loss, typ. | 4 W |
| Inputs | 6 byte |
| Outputs | 4 byte |
| Number of digital inputs | 8; 8 single channel, 4 two-channel |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Type of input voltage | DC |
| for signal "0" | -30 to +5 V |
| for signal "1" | +15 to +30 V |
| for signal "1", typ. | 3.7 mA |
| — parameterizable | Yes |
| — at "0" to "1", min. | 0.3 ms |
| — at "0" to "1", max. | 17 ms |
| — at "1" to "0", min. | 0.3 ms |
| — at "1" to "0", max. | 17 ms |
| shielded, max. | 200 m |
| unshielded, max. | 200 m |
| 2-wire sensor | No |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Diagnostic information readable | Yes |
| Short-circuit | Yes |
| Group error SF (red) | Yes |
| Status indicator digital input (green) | Yes |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | No |
| Isolation tested with | 500 V DC |
| acc. to EN 954 | 4 |
| Performance level according to ISO 13849-1 | e |
| SIL acc. to IEC 61508 | SIL 2 (single-channel), SIL 3 (two-channel) |
| Width | 30 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 78 g |
