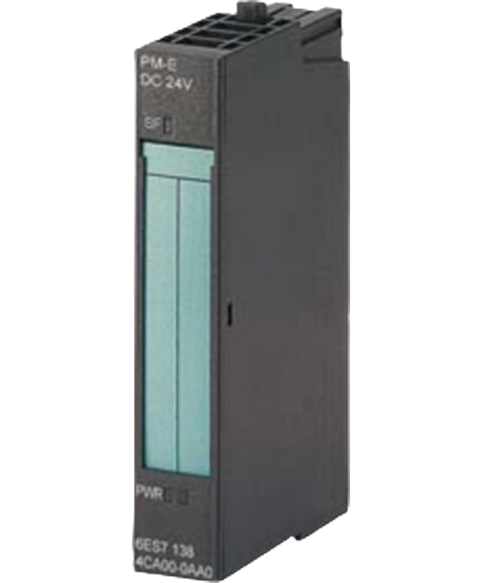

Siemens 6ES7138-4CA01-0AA0
The Siemens 6ES7138-4CA01-0AA0 power module is designed to provide efficient power management in industrial settings. It operates at a DC voltage of 24 volts and features a current-carrying capacity of 10 amps.
This Siemens 6ES7138-4CA01-0AA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801734073.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Rated value (DC) | 24 V |
| Short-circuit protection | No; external (e.g. automatic circuit breaker), tripping characteristic C |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 4 mA |
| up to 60 °C, max. | 10 A |
| Power loss, typ. | 0.1 W |
| missing load voltage | YesDisable / enable |
| Rated load voltage PWR (green) | Yes |
| Group error SF (red) | Yes |
| Remark | 3 byte |
| primary/secondary | Yes; between rated load voltage and backplane bus, between power modules |
| Isolation tested with | 500 V DC |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 35 g |
