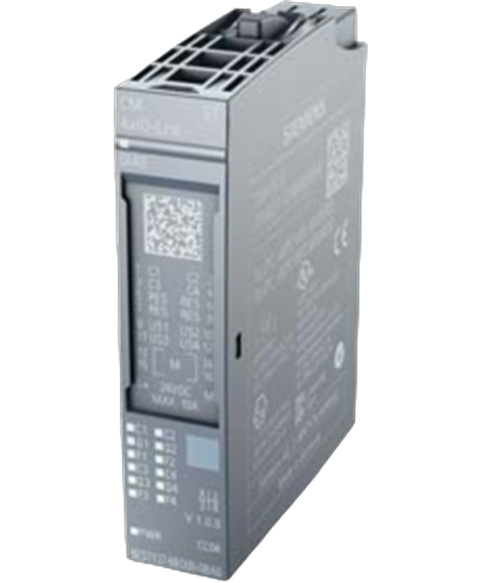

Siemens 6ES7137-6BD00-0BA0
Siemens CM 4×IO-Link Communication Module for ET 200SP (6ES7137-6BD00-0BA0)
This Siemens 6ES7137-6BD00-0BA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26842868851.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | CM 4 x IO-Link ST |
| HW functional status | FS20 |
| Firmware version | V2.2.2 |
| FW update possible | Yes |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color-coded label | CC04 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| STEP 7 TIA Portal configurable/integrated from version | STEP 7 V15 or higher |
| STEP 7 configurable/integrated from version | STEP 7 V5.5 or higher |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | GSDML V2.3 |
| IO-Link | Yes |
| DI | Yes |
| DQ | Yes; max. 100 mA per channel |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| power supply according to NEC Class 2 required | No |
| Current consumption, max. | 45 mA; without load |
| Number of outputs | 4 |
| Rated value | 700 mA; Per channel |
| Short-circuit protection | Yes |
| Output current, max. | 2.1 A |
| Power loss, typ. | 1 W |
| Automatic encoding | Yes |
| Electronic coding element type H | Yes |
| unshielded, max. | 20 m; Also applies for shielded cables |
| Number of ports | 4 |
| of which simultaneously controllable | 4 |
| IO-Link protocol 1.0 | Yes |
| IO-Link protocol 1.1 | Yes |
| Transmission rate | 4.8 kBaud (COM1); 38.4 kBaud (COM2), 230.4 kBaud (COM3) |
| Cycle time, min. | 2 ms; dynamic, depending on user data length |
| Size of process data, input per port | 32 byte; max. |
| Size of process data, input per module | 144 byte; max. |
| Size of process data, output per port | 32 byte; max. |
| Size of process data, output per module | 128 byte; max. |
| Memory size for device parameter | 2 kbyte; for each port |
| Master backup | Yes |
| Configuration without S7-PCT | Yes |
| Cable length unshielded, max. | 20 m |
| TIO IO-Link IN | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| TIO IO-Link OUT | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| TIO IO-Link IN/OUT | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| Port type A | Yes |
| Port type B | Yes; 24 V DC via external terminal |
| via three-wire connection | Yes |
| Diagnostic alarm | Yes; The port diagnosis is available in the IO-Link mode only. |
| Monitoring the supply voltage | Yes |
| Wire-break | Yes |
| Short-circuit | Yes |
| Group error | Yes |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; one green LED for channel status Qn (SIO mode) and port status Cn (IO-Link mode) per channel |
| for channel diagnostics | Yes; red Fn LED |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 25.2 kg |
| — global warming potential, (during production) [CO2 eq] | 6.15 kg |
| — global warming potential, (during operation) [CO2 eq] | 19.4 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.289 kg |
| horizontal installation, min. | -30 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m |
| Width | 13 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 30 g |
