Siemens 6ES7137-6AA01-0BA0

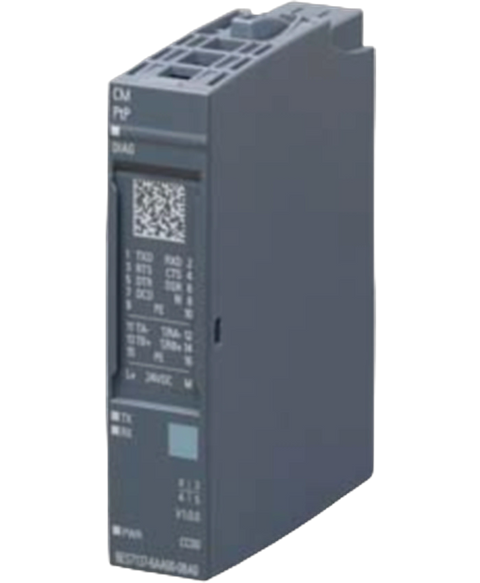

The Siemens 6ES7137-6AA01-0BA0 is a compact communication module designed for reliable data transmission. With a supply voltage of 24 V DC, it operates efficiently to provide smooth connectivity in automation systems.
This Siemens 6ES7137-6AA01-0BA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801426900.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | CM PtP |
| FW update possible | Yes |
| usable BaseUnits | BU type A0 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| STEP 7 TIA Portal configurable/integrated from version | STEP 7 V17 or higher |
| STEP 7 configurable/integrated from version | via GSD as of V5.6 HF4 |
| PROFIBUS from GSD version/GSD revision | GSD as of Revision 5 |
| PROFINET from GSD version/GSD revision | GSDML V2.34 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption (rated value) | 31 mA |
| Current consumption, max. | 35 mA |
| Power loss, typ. | 0.7 W |
| Inputs | 8 byte; performance mode: 32 byte |
| Outputs | 0 byte; performance mode: 32 byte |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | type D |
| RS 485 | Yes |
| RS 422 | Yes |
| RS 232 | Yes |
| Design of the connection | Push-in terminal |
| Transmission rate, max. | 115.2 kbit/s250 kbit/s |
| Cable length, max. | 15 m1 200 m; 200 m to 1200 m, depending on transmission speed |
| RS 232 auxiliary signals | RTS, CTS, DTR, DSR, RI, DCD |
| 4-wire full duplex connection | Yes |
| 4-wire multipoint connection | Yes |
| — Telegram length, max. | 2 kbyte; performance mode: receive data max. 24 byte and send data max. 30 byte |
| — Bits per character | 7 or 8 |
| — Number of stop bits | 1 or 2 bit |
| — Parity | None, even, odd, always 1, always 0, any |
| — Address area | 1 to 247, extended 1 to 65535 |
| — max. number of devices | 32 |
| Buffer memory for telegrams | 4 kbyte |
| Number of telegrams which can be buffered | 255 |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Hardware interrupt | No |
| Wire-break | Yes |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| for module diagnostics | Yes; green/red DIAG LED |
| Receive RxD | Yes; green LED |
| Transmit TxD | Yes; green LED |
| between backplane bus and interface | Yes |
| Isolation tested with | 707 V DC (type test) |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 25.2 kg |
| — global warming potential, (during production) [CO2 eq] | 6.15 kg |
| — global warming potential, (during operation) [CO2 eq] | 19.4 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.289 kg |
| horizontal installation, min. | -30 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m |
| to SIMATIC S7-300 | Yes |
| to SIMATIC S7-400 | Yes |
| to SIMATIC S7-1200 | Yes |
| to SIMATIC S7-1500 | Yes |
| to standard PROFINET controller | Yes |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 30 g |
