Siemens 6ES7137-6AA00-0BA0

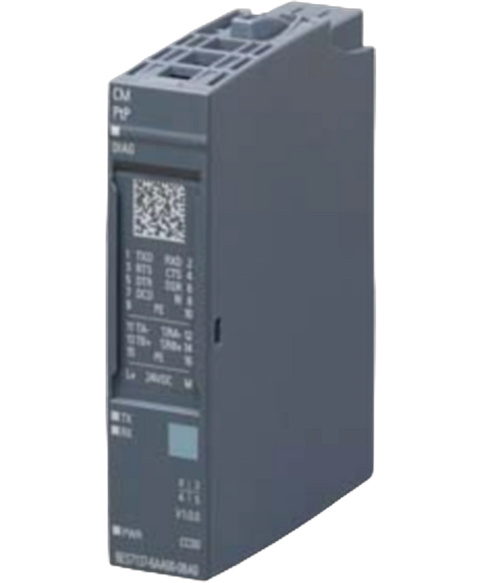

The 6ES7137-6AA00-0BA0 from Siemens is a CM PTP communication module designed primarily for robust data exchange. It operates using the MODBUS RTU communication protocol and offers multiple communication ports including RS422, RS485, and RS232, allowing flexible connections in various configurations.
This Siemens 6ES7137-6AA00-0BA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26838266685.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | CM PtP |
| FW update possible | Yes |
| I&M data | Yes; I&M0 to I&M3 |
| STEP 7 TIA Portal configurable/integrated from version | V12 / V12 |
| STEP 7 configurable/integrated from version | V5.5 SP2 with GSD file |
| PROFIBUS from GSD version/GSD revision | GSD as of Revision 5 |
| PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption (rated value) | 29 mA |
| Power loss, typ. | 0.7 W |
| Inputs | 8 byte |
| RS 485 | Yes |
| RS 422 | Yes |
| RS 232 | Yes |
| Transmission rate, max. | 115.2 kbit/s |
| Cable length, max. | 15 m1 200 m |
| RS 232 auxiliary signals | RTS, CTS, DTR, DSR, RI, DCD |
| 4-wire full duplex connection | Yes |
| 4-wire multipoint connection | Yes |
| — Telegram length, max. | 2 kbyte |
| — Bits per character | 7 or 8 |
| — Number of stop bits | 1 or 2 bit |
| — Parity | None, even, odd, always 1, always 0, any |
| — Address area | 1 to 247, extended 1 to 65535 |
| — max. number of devices | 32 |
| Buffer memory for telegrams | 4 kbyte |
| Number of telegrams which can be buffered | 255 |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Hardware interrupt | No |
| Wire-break | Yes |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| for module diagnostics | Yes; green/red DIAG LED |
| Receive RxD | Yes; green LED |
| Transmit TxD | Yes; green LED |
| between backplane bus and interface | Yes |
| Isolation tested with | 707 V DC (type test) |
| horizontal installation, min. | -30 °C; From FS03 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; From FS03 |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m |
| to SIMATIC S7-300 | Yes |
| to SIMATIC S7-400 | Yes |
| to SIMATIC S7-1200 | Yes |
| to SIMATIC S7-1500 | Yes |
| to standard PROFINET controller | Yes |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 30 g |
