Siemens 6ES71366BA010CA0

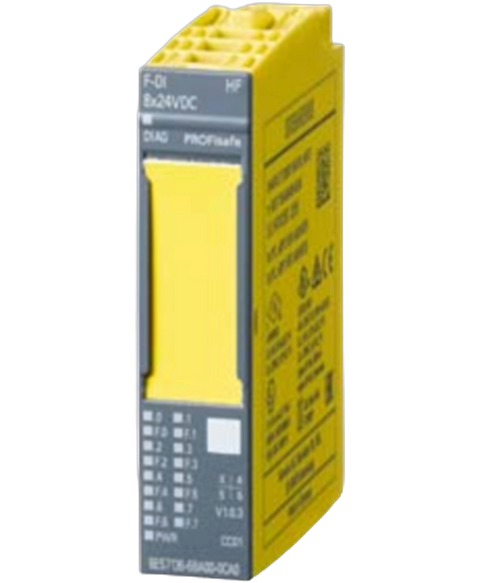

SIMATIC DP, electronic module for ET 200SP, F-DI 8x 24 V DC HF, 15 mm width, up to PLe (ISO 13849-1), SIL3 (IEC 61508)
This Siemens 6ES71366BA010CA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27095897416.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | F-DI 8x24VDC HF |
| Firmware version | V2.0 |
| FW update possible | Yes |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color-coded label | CC01 |
| I&M data | Yes; I&M0 to I&M3 |
| STEP 7 TIA Portal configurable/integrated from version | SIMATIC Safety V17 with HSP 0360 or higher |
| STEP 7 configurable/integrated from version | as 6ES7136-6BA00-0CA0 |
| PROFINET from GSD version/GSD revision | GSDML V2.35 |
| DI | Yes |
| Reparameterization possible in RUN | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| power supply according to NEC Class 2 required | No |
| Current consumption, max. | 40 mA; without load |
| Number of outputs | 8 |
| Short-circuit protection | Yes; Electronic (response threshold 0.7 A to 1.8 A) |
| up to 60 °C, max. | 0.3 A |
| 24 V | Yes; min. L+ (-1.5 V) |
| Output current per channel, max. | 300 mA |
| Output current per module, max. | 800 mA; Total current of all encoders |
| Power loss, typ. | 2 W |
| Inputs | 7 byte; S7-300/400F CPU, 6 byte |
| Outputs | 5 byte; S7-300/400F CPU, 4 byte |
| Automatic encoding | Yes |
| Electronic coding element type F | Yes |
| Number of digital inputs | 8 |
| Digital inputs, parameterizable | Yes |
| Sourcing/sinking input | Yes; P-reading |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| for signal "0" | -30 to +5 V |
| for signal "1" | +15 to +30 V |
| for signal "1", typ. | 3.7 mA |
| — parameterizable | YesNo |
| — at "0" to "1", min. | 0.4 ms |
| — at "0" to "1", max. | 20 ms |
| — at "1" to "0", min. | 0.4 ms |
| — at "1" to "0", max. | 20 ms |
| shielded, max. | 1 000 m |
| unshielded, max. | 500 m |
| Diagnostics function | Yes; See Chapter "Alarms/diagnostic messages" in the manual |
| Diagnostic alarm | Yes |
| Hardware interrupt | No |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | Yes; red LED |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| Suitable for safety functions | Yes |
| environmental product declaration | Yes; type II acc. to ISO 14021 |
| — global warming potential, (total) [CO2 eq] | 52 kg |
| — global warming potential, (during production) [CO2 eq] | 6.8 kg |
| — global warming potential, (during operation) [CO2 eq] | 45.8 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.628 kg |
| Performance level according to ISO 13849-1 | PLe |
| Category according to ISO 13849-1 | Cat. 4 |
| SIL acc. to IEC 61508 | SIL 3 |
| — Low demand mode: PFDavg in accordance with SIL3 | < 2.00E-05 |
| — High demand/continuous mode: PFH in accordance with SIL3 | < 1.00E-09 1/h |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 4 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 29 g |
