Siemens 6ES7136-6RA00-0BF0

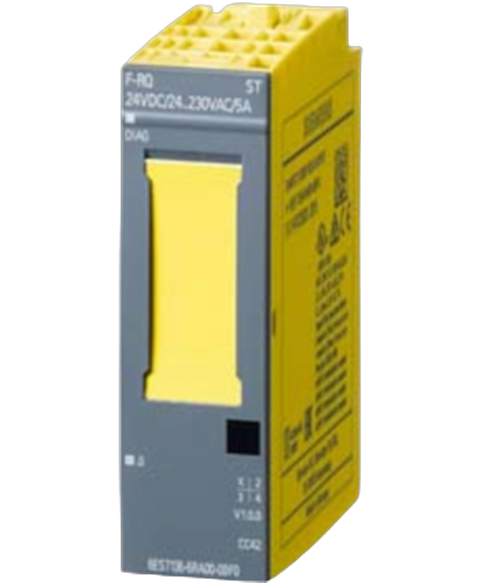

The Siemens 6ES7136-6RA00-0BF0 is a digital output module that includes one digital output and a relay output. With an output configuration of two Normally Open contacts, this module operates at a supply voltage of 24 Volts DC.
This Siemens 6ES7136-6RA00-0BF0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805410325.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | F-RQ 24 ... 48VDC/24 ... 230VAC/5A ST |
| usable BaseUnits | BU type F0 |
| Color code for module-specific color-coded label | CC42 |
| I&M data | Yes; I&M0 to I&M3 |
| STEP 7 TIA Portal configurable/integrated from version | V13 |
| STEP 7 configurable/integrated from version | V5.5 SP4 and higher |
| PROFINET from GSD version/GSD revision | V2.31 |
| Rated value (DC) | 24 V; Coil voltage |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| power supply according to NEC Class 2 required | No |
| Power consumption from the backplane bus | 100 mW |
| Power loss, typ. | 1 W |
| Inputs | 1 byte |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | type C |
| Type of digital output | Relays |
| Number of digital outputs | 1 |
| Limitation of inductive shutdown voltage to | No |
| Controlling a digital input | Yes |
| with resistive load, max. | 5 A2 Hz |
| on lamp load, max. | 25 W |
| with inductive load, max. | 0.1 Hz; See data in manual |
| with inductive load (acc. to IEC 60947-5-1, DC13), max. | 0.1 Hz |
| with inductive load (acc. to IEC 60947-5-1, AC15), max. | 2 Hz |
| — up to 40 °C, max. | 5 A; note derating data in the manual |
| — up to 50 °C, max. | 4 A; note derating data in the manual3 A; note derating data in the manual |
| — up to 60 °C, max. | 3 A; note derating data in the manual |
| Number of relay outputs | 1; 2 NO contacts |
| Rated supply voltage of relay coil L+ (DC) | 24 V |
| Current consumption of relays (coil current of all relays), max. | 70 mA |
| external protection for relay outputs | yes; 6 A, see data in manual |
| Relay approved acc. to UL 508 | Yes; Pilot Duty B300, R300 |
| — with inductive load, max. | see additional description in the manual |
| — with resistive load, max. | see additional description in the manual |
| — Thermal continuous current, max. | 5 A |
| — Switching current, min. | 1 mA |
| — Switching current after exceeding 300 mA, min. | 10 mA |
| — Switching current after exceeding 300 mA, max. | 5 A |
| — Rated switching voltage (DC) | 24 V |
| — Rated switching voltage (AC) | 230 V |
| shielded, max. | 500 m; for load contacts |
| unshielded, max. | 300 m; for load contacts |
| Control cable (input), max. | 10 m |
| Diagnostics function | Yes |
| RUN LED | Yes; green/red DIAG LED |
| Channel status display | Yes; green LED |
| between the channels | Yes; for SELV / PELV only |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| between channels and backplane bus/supply voltage | 250 V AC (reinforced insulation)DC 2 545 V 2 s (routine test), impulse voltage test DC 7 200 V / 5 positive and 5 negative pulses (type test) |
| Isolation tested with | 2 545 V DC/2 s (routine test) |
| Overvoltage category | III (according to IEC/EN 61131-2:2007 and EN 298:2022), II (according to IEC 61131-2:2017 and IEC 61010-2-201) |
| between backplane bus and supply voltage | 707 V DC (type test) |
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| Suitable for safety functions | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 52 kg |
| — global warming potential, (during production) [CO2 eq] | 6.8 kg |
| — global warming potential, (during operation) [CO2 eq] | 45.8 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.628 kg |
| Performance level according to ISO 13849-1 | PLe |
| Category according to ISO 13849-1 | 4 |
| SIL acc. to IEC 61508 | SIL 3 |
| — Low demand mode: PFDavg in accordance with SIL2 | < 1.00E-04, function test 1x per year |
| — Low demand mode: PFDavg in accordance with SIL3 | < 1.00E-05, function test 1x per month |
| — High demand/continuous mode: PFH in accordance with SIL2 | < 1.00E-08 1/h, function test 1x per year |
| — High demand/continuous mode: PFH in accordance with SIL3 | < 6.00E-09 1/h, function test 1x per month |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 50 °C |
| Width | 20 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 56 g |
