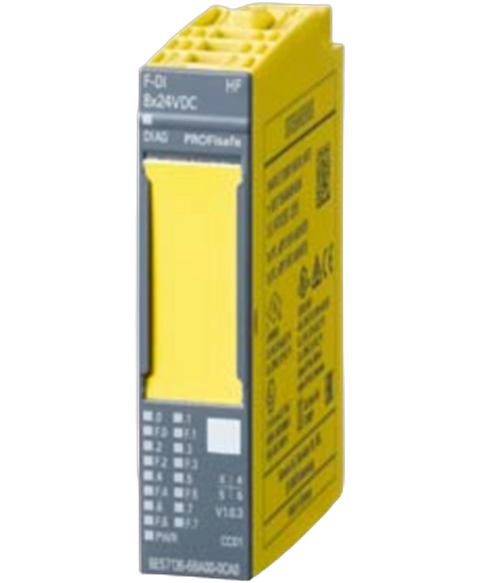

Siemens 6ES7136-6BA00-0CA0
The SIMATIC 6ES7136-6BA00-0CA0 is a versatile I,O module from Siemens. It provides 16 digital inputs and 8 relay outputs, functioning effectively at a 24V DC input voltage.
This Siemens 6ES7136-6BA00-0CA0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801722741.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product type designation | F-DI 8x24VDC HF |
| usable BaseUnits | BU type A0 |
| I&M data | Yes; I&M0 to I&M3 |
| STEP 7 TIA Portal configurable/integrated from version | V12 |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - |
| PROFINET from GSD version/GSD revision | V2.31 |
| DI | Yes |
| Reparameterization possible in RUN | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| power supply according to NEC Class 2 required | No |
| Current consumption (rated value) | 75 mA; without load |
| Current consumption, max. | 21 mA; From the backplane bus |
| Number of outputs | 8 |
| Short-circuit protection | Yes; Electronic (response threshold 0.7 A to 1.8 A)Yes |
| up to 60 °C, max. | 0.3 A |
| 24 V | Yes; min. L+ (-1.5 V) |
| Output current, max. | 800 mA; Total current of all encoders |
| Power consumption from the backplane bus | 70 mW |
| Power loss, typ. | 4 W |
| Inputs | 6 byte |
| Outputs | 4 byte |
| Automatic encoding | Yes |
| Electronic coding element type F | Yes |
| Number of digital inputs | 8 |
| Digital inputs, parameterizable | Yes |
| Sourcing/sinking input | Yes; P-reading |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| for signal "0" | -30 to +5 V |
| for signal "1" | +15 to +30 V |
| for signal "1", typ. | 3.7 mA |
| — parameterizable | YesNo |
| — at "0" to "1", min. | 0.4 ms |
| — at "0" to "1", max. | 20 ms |
| — at "1" to "0", min. | 0.4 ms |
| — at "1" to "0", max. | 20 ms |
| shielded, max. | 1 000 m |
| unshielded, max. | 500 m |
| Diagnostics function | Yes; See Chapter "Alarms/diagnostic messages" in the manual |
| Diagnostic alarm | Yes |
| Hardware interrupt | No |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | Yes; red LED |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
| Suitable for safety functions | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 88.3 kg |
| — global warming potential, (during production) [CO2 eq] | 13.1 kg |
| — global warming potential, (during operation) [CO2 eq] | 76.6 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -1.37 kg |
| Performance level according to ISO 13849-1 | PLe |
| SIL acc. to IEC 61508 | SIL 3 |
| — Low demand mode: PFDavg in accordance with SIL3 | < 2.00E-05 |
| — High demand/continuous mode: PFH in accordance with SIL3 | < 1.00E-09 1/h |
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 4 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 49 g |
