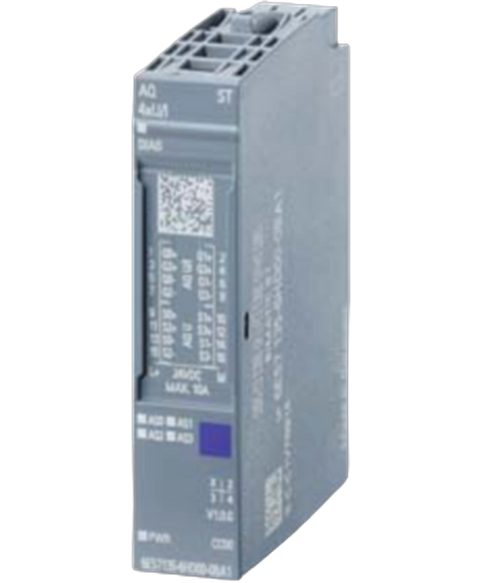

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES7135-6HD00-0BA1
Siemens 6ES7135-6HD00-0BA1 analog output module, 4-channel, ET200SP.
This Siemens 6ES7135-6HD00-0BA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801443537.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$535.33
(inc. GST)
In Stock
| Product type designation | AQ 4xU/I ST |
| HW functional status | from FS21 |
| Firmware version | V1.1.3 |
| FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color-coded label | CC00 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| Output range scalable | No |
| STEP 7 TIA Portal configurable/integrated from version | V11 SP2 / V13 |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - |
| PCS 7 configurable/integrated from version | V8.1 SP1 |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Oversampling | No |
| MSO | No |
| Reparameterization possible in RUN | No |
| Calibration possible in RUN | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 150 mA |
| Power loss, typ. | 1.5 W |
| Address space per module, max. | 8 byte; + 1 byte for QI information |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | Type A |
| Number of analog outputs | 4 |
| Voltage output, short-circuit current, max. | 45 mA |
| Cycle time (all channels), min. | 5 ms |
| Analog output with oversampling | No |
| 0 to 10 V | Yes; 15 bit |
| 1 V to 5 V | Yes; 13 bit |
| -5 V to +5 V | Yes; 15 bit incl. sign |
| -10 V to +10 V | Yes; 16 bit incl. sign |
| 0 to 20 mA | Yes; 15 bit |
| -20 mA to +20 mA | Yes; 16 bit incl. sign |
| 4 mA to 20 mA | Yes; 14 bit |
| for voltage output two-wire connection | Yes |
| for voltage output four-wire connection | Yes |
| for current output two-wire connection | Yes |
| with voltage outputs, min. | 2 kΩ |
| with voltage outputs, capacitive load, max. | 1 µF |
| with current outputs, max. | 500 Ω |
| with current outputs, inductive load, max. | 1 mH |
| Voltages at the outputs | 30 V |
| shielded, max. | 1 000 m; 200 m for voltage output |
| Resolution with overrange (bit including sign), max. | 16 bit |
| for resistive load | 0.1 ms |
| for capacitive load | 1 ms |
| for inductive load | 0.5 ms |
| Linearity error (relative to output range), (+/-) | 0.03 % |
| Temperature error (relative to output range), (+/-) | 0.005 %/K |
| Crosstalk between the outputs, min. | -50 dB |
| Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) | 0.05 % |
| Voltage, relative to output range, (+/-) | 0.5 %0.3 % |
| Current, relative to output range, (+/-) | 0.5 %0.3 % |
| Diagnostics function | Yes |
| Substitute values connectable | Yes |
| Diagnostic alarm | Yes |
| Monitoring the supply voltage | Yes |
| Wire-break | Yes; module-by-module, only for output type "current" |
| Short-circuit | Yes; module-by-module, only for output type "voltage" |
| Group error | Yes |
| Overflow/underflow | Yes; Module-wise |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | No |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 707 V DC (type test) |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 28.6 kg |
| — global warming potential, (during production) [CO2 eq] | 5.33 kg |
| — global warming potential, (during operation) [CO2 eq] | 23.6 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.343 kg |
| horizontal installation, min. | -30 °C; < 0 °C as of FS07 |
| horizontal installation, max. | 60 °C; Observe derating |
| vertical installation, min. | -30 °C; < 0 °C as of FS07 |
| vertical installation, max. | 50 °C; Observe derating |
| Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
| dew point, min. | -60 °C; suitable for dry room applications |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 31 g |
