Siemens 6ES7135-4GB01-0AB0

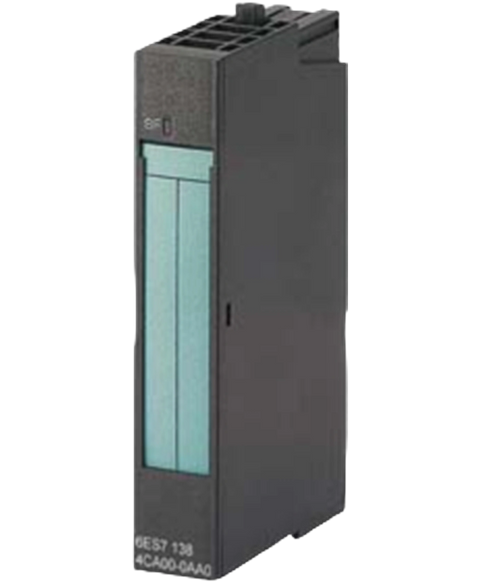

Siemens 6ES71354GB010AB0 ET200S analogue output module, 2AO.
This Siemens 6ES7135-4GB01-0AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26801426024.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Isochronous mode | No |
| Rated value (DC) | 24 V; From power module |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 150 mA |
| from backplane bus 3.3 V DC, max. | 10 mA |
| Power loss, max. | 2 W |
| Address space per module, max. | 4 byte |
| Number of analog outputs | 2 |
| Current output, no-load voltage, max. | 18 V |
| Cycle time (all channels) max. | 1.5 ms |
| -20 mA to +20 mA | Yes |
| 4 mA to 20 mA | Yes |
| for current output two-wire connection | Yes |
| for current output four-wire connection | No |
| with current outputs, max. | 500 Ω |
| with current outputs, inductive load, max. | 1 mH |
| Voltages at the outputs towards MANA | 15 V; max. 15 V continuous; 75 V for max. 1 s (mark to space ratio 1:20) |
| Current, max. | 50 mA; DC |
| shielded, max. | 200 m |
| Resolution with overrange (bit including sign), max. | 14 bit; 4 to 20 mA: 13 bit, ±20 mA: 14 bit |
| for resistive load | 0.1 ms |
| for capacitive load | 0.5 ms |
| for inductive load | 0.5 ms |
| Current, relative to output range, (+/-) | 0.5 %0.3 % |
| Substitute values connectable | Yes; 0 to 65535 (range of values must be within the rated range) |
| Diagnostic information readable | Yes |
| Wire-break | Yes |
| Group error | Yes |
| Group error SF (red) | Yes |
| Remark | 7 byte |
| Diagnostics wire break | Disable / enable |
| Group diagnostics | Disable / enable |
| Response to CPU/master STOP | Output current and de-energized/substitute a value/keep last value |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | Yes |
| Isolation tested with | 500 V DC |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 40 g |
