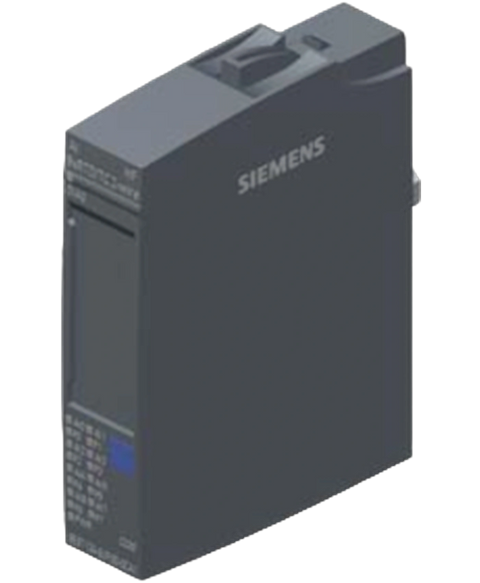

Siemens 6ES71346JF000CA1
SIMATIC ET 200SP, ANALOG INPUT MODULE, AI 8XRTD,TC 2-WIRE HIGH FEATURE FITS TO BU-TYPE A0, A1, COLOR CODE CC00, CHANNEL DIAGNOSIS, 16BIT, +,-0,1%
This Siemens 6ES71346JF000CA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27095884392.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$569.41
(inc. GST)
In Stock
| Product type designation | AI 8xRTD/TC 2-wire HF |
| HW functional status | From FS05 |
| Firmware version | V2.1 |
| FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color-coded label | CC00 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| Measuring range scalable | Yes |
| STEP 7 TIA Portal configurable/integrated from version | V16, V17 / V18 |
| STEP 7 configurable/integrated from version | V5.5 SP3 / V5.5 SP4 |
| PCS 7 configurable/integrated from version | V8.1 SP1 |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | GSDML V2.35 |
| Oversampling | No |
| MSI | No |
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 35 mA |
| Power loss, typ. | 0.75 W |
| Address space per module, max. | 16 byte; + 1 byte for QI information |
| Mechanical coding element | Yes |
| Type of mechanical coding element | Type A |
| 2-wire connection | BU type A0, A1 |
| Number of analog inputs | 8 |
| permissible input voltage for voltage input (destruction limit), max. | 30 V |
| Constant measurement current for resistance-type transmitter, typ. | 2 mA |
| Cycle time (all channels), min. | Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels) |
| Technical unit for temperature measurement adjustable | Yes; °C/°F/K |
| -1 V to +1 V | Yes; 16 bit incl. sign |
| — Input resistance (-1 V to +1 V) | 1 MΩ |
| -250 mV to +250 mV | Yes; 16 bit incl. sign |
| — Input resistance (-250 mV to +250 mV) | 1 MΩ |
| -50 mV to +50 mV | Yes; 16 bit incl. sign |
| — Input resistance (-50 mV to +50 mV) | 1 MΩ |
| -80 mV to +80 mV | Yes; 16 bit incl. sign |
| — Input resistance (-80 mV to +80 mV) | 1 MΩ |
| Type B | Yes; 16 bit incl. sign |
| — Input resistance (Type B) | 1 MΩ |
| Type C | Yes; 16 bit incl. sign |
| — Input resistance (Type C) | 1 MΩ |
| Type E | Yes; 16 bit incl. sign |
| — Input resistance (Type E) | 1 MΩ |
| Type J | Yes; 16 bit incl. sign |
| — Input resistance (type J) | 1 MΩ |
| Type K | Yes; 16 bit incl. sign |
| — Input resistance (Type K) | 1 MΩ |
| Type L | Yes; 16 bit incl. sign |
| — Input resistance (Type L) | 1 MΩ |
| Type N | Yes; 16 bit incl. sign |
| — Input resistance (Type N) | 1 MΩ |
| Type R | Yes; 16 bit incl. sign |
| — Input resistance (Type R) | 1 MΩ |
| Type S | Yes; 16 bit incl. sign |
| — Input resistance (Type S) | 1 MΩ |
| Type T | Yes; 16 bit incl. sign |
| — Input resistance (Type T) | 1 MΩ |
| Type U | Yes; 16 bit incl. sign |
| — Input resistance (Type U) | 1 MΩ |
| Type TXK/TXK(L) to GOST | Yes; 16 bit incl. sign |
| — Input resistance (Type TXK/TXK(L) to GOST) | 1 MΩ |
| Ni 100 | Yes; 16 bit incl. sign |
| — Input resistance (Ni 100) | 1 MΩ |
| Ni 1000 | Yes; 16 bit incl. sign |
| — Input resistance (Ni 1000) | 1 MΩ |
| LG-Ni 1000 | Yes; 16 bit incl. sign |
| — Input resistance (LG-Ni 1000) | 1 MΩ |
| Ni 120 | Yes; 16 bit incl. sign |
| — Input resistance (Ni 120) | 1 MΩ |
| Ni 200 | Yes; 16 bit incl. sign |
| — Input resistance (Ni 200) | 1 MΩ |
| Ni 500 | Yes; 16 bit incl. sign |
| — Input resistance (Ni 500) | 1 MΩ |
| Pt 100 | Yes; 16 bit incl. sign |
| — Input resistance (Pt 100) | 1 MΩ |
| Pt 1000 | Yes; 16 bit incl. sign |
| — Input resistance (Pt 1000) | 1 MΩ |
| Pt 200 | Yes; 16 bit incl. sign |
| — Input resistance (Pt 200) | 1 MΩ |
| Pt 500 | Yes; 16 bit incl. sign |
| — Input resistance (Pt 500) | 1 MΩ |
| 0 to 150 ohms | Yes; 15 bit |
| — Input resistance (0 to 150 ohms) | 1 MΩ |
| 0 to 300 ohms | Yes; 15 bit |
| — Input resistance (0 to 300 ohms) | 1 MΩ |
| 0 to 600 ohms | Yes; 15 bit |
| — Input resistance (0 to 600 ohms) | 1 MΩ |
| 0 to 3000 ohms | Yes; 15 bit |
| — Input resistance (0 to 3000 ohms) | 1 MΩ |
| 0 to 6000 ohms | Yes; 15 bit |
| — Input resistance (0 to 6000 ohms) | 1 MΩ |
| PTC | Yes; 15 bit |
| — Input resistance (PTC) | 1 MΩ |
| — parameterizable | Yes |
| — Reference channel of the module | Yes |
| — internal comparison point | Yes; with BaseUnit type A1 |
| — Reference channel of the group | Yes |
| — Number of reference channel groups | 4; Group 0 to 3 |
| — fixed reference temperature | Yes |
| shielded, max. | 200 m; 50 m with thermocouples |
| Measurement principle | integrating (Sigma-Delta) |
| Resolution with overrange (bit including sign), max. | 16 bit |
| Integration time, parameterizable | Yes |
| — additional processing time for wire-break check | 2 ms; In the ranges resistance thermometers, resistors and thermocouples |
| Interference voltage suppression for interference frequency f1 in Hz | 16.6 / 50 / 60 Hz |
| Conversion time (per channel) | 180 / 60 / 50 / (67.5 / 22.5 / 18.75) ms |
| Number of smoothing levels | 4; None; 4/8/16 times |
| parameterizable | Yes |
| for voltage measurement | Yes |
| for resistance measurement with two-wire connection | Yes |
| for resistance measurement with three-wire connection | No |
| for resistance measurement with four-wire connection | No |
| Linearity error (relative to input range), (+/-) | 0.01 %; ±0.1 % for resistance thermometers and resistance |
| Temperature error (relative to input range), (+/-) | 0.0009 %/K; ±0.005 % / K at thermocouple |
| Crosstalk between the inputs, min. | -50 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.05 % |
| Voltage, relative to input range, (+/-) | 0.1 %0.05 % |
| Resistance, relative to input range, (+/-) | 0.1 %0.05 % |
| Series mode interference (peak value of interference < rated value of input range), min. | 70 dB; With conversion time 67.5 / 22.5 / 18.75 ms: 40 dB |
| Common mode voltage, max. | 10 V |
| Common mode interference, min. | 90 dB |
| Diagnostic alarm | Yes |
| Limit value alarm | Yes; two upper and two lower limit values in each case |
| Monitoring the supply voltage | Yes |
| Wire-break | Yes; channel by channel |
| Group error | Yes |
| Overflow/underflow | Yes; channel by channel |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | Yes; red LED |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| between the inputs (UCM) | 10 V DC |
| Isolation tested with | 707 V DC (type test) |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 9.32 kg |
| — global warming potential, (during production) [CO2 eq] | 4.97 kg |
| — global warming potential, (during operation) [CO2 eq] | 4.79 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.449 kg |
| horizontal installation, min. | -30 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
