Siemens 6ES71344NB510AB0

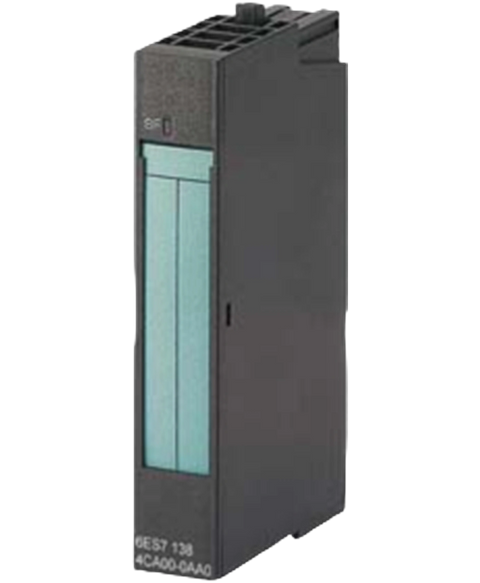

SIMATIC DP, ELECTRONIC MODULE ET 200S: 2AI RTD HIGH FEATURE, 15 MM WIDTH, 15BIT + SIGN ACCURACY +,- 0.1%, FOR 2-,3-,-4- WIRE SENSORS, WITH INTERNAL COMPENSATION OF THE WIRE RESISTOR, WITH LED SF (GROUP FAULT)
This Siemens 6ES71344NB510AB0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL27095876696.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Isochronous mode | No |
| Rated value (DC) | 24 V; From power module |
| Reverse polarity protection | Yes |
| from load voltage L+ (without load), max. | 30 mA |
| from backplane bus 3.3 V DC, max. | 10 mA |
| Power loss, typ. | 0.6 W |
| Address space per module, max. | 4 byte |
| Number of analog inputs | 2 |
| permissible input voltage for voltage input (destruction limit), max. | 9 V |
| Constant measurement current for resistance-type transmitter, typ. | 1.25 mA |
| Cycle time (all channels) max. | Number of active channels per module x basic conversion time |
| Technical unit for temperature measurement adjustable | Yes |
| Cu 10 | Yes |
| — Input resistance (Cu 10) | 10 MΩ |
| Ni 100 | Yes |
| — Input resistance (Ni 100) | 10 MΩ |
| Ni 1000 | Yes |
| — Input resistance (Ni 1000) | 10 MΩ |
| Ni 120 | Yes |
| — Input resistance (Ni 120) | 10 MΩ |
| Ni 200 | Yes |
| — Input resistance (Ni 200) | 10 MΩ |
| Ni 500 | Yes |
| — Input resistance (Ni 500) | 10 MΩ |
| Pt 100 | Yes |
| — Input resistance (Pt 100) | 10 MΩ |
| Pt 1000 | Yes |
| — Input resistance (Pt 1000) | 10 MΩ |
| Pt 200 | Yes |
| — Input resistance (Pt 200) | 10 MΩ |
| Pt 500 | Yes |
| — Input resistance (Pt 500) | 10 MΩ |
| 0 to 150 ohms | Yes |
| — Input resistance (0 to 150 ohms) | 10 MΩ |
| 0 to 300 ohms | Yes |
| — Input resistance (0 to 300 ohms) | 10 MΩ |
| 0 to 600 ohms | Yes |
| — Input resistance (0 to 600 ohms) | 10 MΩ |
| 0 to 3000 ohms | Yes |
| — Input resistance (0 to 3000 ohms) | 10 MΩ |
| — internal temperature compensation | Yes |
| parameterizable | Yes; for Ptxxx, NixxxYes; In four stages by means of digital filtering |
| — for resistance thermometer | Ptxxx, Nixxx |
| shielded, max. | 200 m |
| Measurement principle | integrating (Sigma-Delta) |
| Resolution with overrange (bit including sign), max. | 16 bit; for Pt100, Ni100, Ni120, Pt200, Ni200, Pt500, Ni500, Pt1000, Ni1000, Cu10: 15 bit + sign; for 150, 300, 600, 3 000 ohms: 15 bit; for PTC: 1 bit |
| Integration time (ms) | 16,7 / 20 ms |
| Interference voltage suppression for interference frequency f1 in Hz | 50 / 60 Hz |
| Conversion time (per channel) | Basic conversion time incl. integration time: 50 / 60 ms; additional conversion time for diagnostics of wire break test: 5 / 5 ms; additional conversion time for line compensation with 3-wire connection: 50 / 60 ms |
| Step: None | Yes; 1x cycle time |
| Step: low | Yes; 4x cycle time |
| Step: Medium | Yes; 32x cycle time |
| Step: High | Yes; 64x cycle time |
| for resistance measurement with two-wire connection | Yes |
| for resistance measurement with three-wire connection | Yes; internal compensation of the line resistances |
| for resistance measurement with four-wire connection | Yes |
| Resistance thermometer, relative to input range, (+/-) | Resistance-type transmitter: ±0.1 %; Pt100, Pt200, Pt500, Pt1000 standard: ±1.0 K; Pt100, Pt200, Pt500, Pt1000 climate: ±0.25 K; Ni100, Ni120, Ni200, Ni500, Ni1000 standard and climate: ±0.4 K; Cu10 ±1.5 KResistance-type transmitter: ±0.05 %; Pt100, Pt200, Pt500, Pt1000 standard: ±0.6 K; Pt100, Pt200, Pt500, Pt1000 climate: ±0.13 K; Ni100, Ni120, Ni200, Ni500, Ni1000 standard and climate: ±0.2 K; Cu10 ±1 K |
| Wire-break | Yes |
| Group error | Yes |
| Overflow/underflow | YesDisable / enable |
| Group error SF (red) | Yes |
| Remark | 7 byte |
| Diagnostics wire break | Disable / enable |
| Group diagnostics | Disable / enable |
| between the channels | No |
| between the channels and backplane bus | Yes |
| Between the channels and load voltage L+ | Yes |
| Isolation tested with | 500 V DC |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weight, approx. | 40 g |
