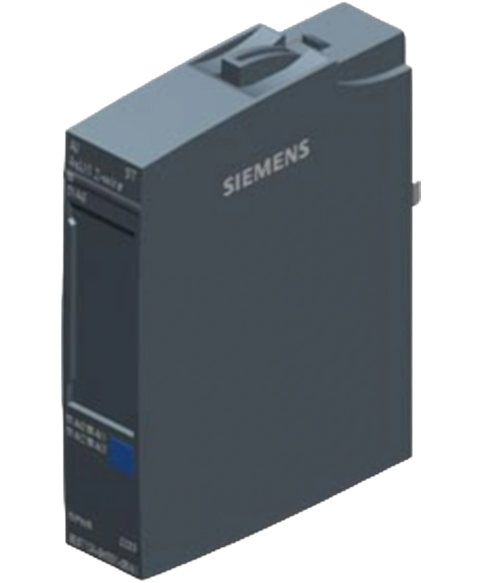

Product image for illustrative purposes only. Actual item may vary.
Siemens 6ES7134-6HD01-0BA1
The Siemens 6ES7134-6HD01-0BA1 is an analog input module from the SIMATIC series, designed for precise measurement applications. This module supports four differential inputs and operates effectively across a variety of temperatures ranging from -30°C to below 0°C, making it suitable for use in cold environments.
This Siemens 6ES7134-6HD01-0BA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805561473.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$413.21
(inc. GST)
In Stock
| Product type designation | AI 4x U/I 2-wire |
| HW functional status | From FS02 |
| FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color-coded label | CC03 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| Measuring range scalable | No |
| STEP 7 TIA Portal configurable/integrated from version | V14 / - |
| STEP 7 configurable/integrated from version | V5.6 and higher |
| PCS 7 configurable/integrated from version | V8.1 SP1 |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Oversampling | No |
| MSI | No |
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 37 mA; without sensor supply |
| 24 V | Yes |
| Short-circuit protection | Yes |
| Output current, max. | 20 mA; max. 50 mA per channel for a duration < 10 s |
| Power loss, typ. | 0.85 W; Without encoder supply voltage |
| Address space per module, max. | 8 byte; + 1 byte for QI information |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | Type A |
| 2-wire connection | BU type A0, A1 |
| Number of analog inputs | 4; Differential inputs |
| permissible input voltage for voltage input (destruction limit), max. | 30 V |
| permissible input current for current input (destruction limit), max. | 50 mA |
| Cycle time (all channels), min. | Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels) |
| 0 to +10 V | Yes; 15 bit |
| — Input resistance (0 to 10 V) | 120 kΩ |
| 1 V to 5 V | Yes; 15 bit |
| — Input resistance (1 V to 5 V) | 120 kΩ |
| -10 V to +10 V | Yes; 16 bit incl. sign |
| — Input resistance (-10 V to +10 V) | 120 kΩ |
| -5 V to +5 V | Yes; 16 bit incl. sign |
| — Input resistance (-5 V to +5 V) | 120 kΩ |
| 0 to 20 mA | Yes; 15 bit |
| — Input resistance (0 to 20 mA) | 100 Ω; + approx. 0.7 V diode forward voltage |
| 4 mA to 20 mA | Yes; 15 bit |
| — Input resistance (4 mA to 20 mA) | 100 Ω; + approx. 0.7 V diode forward voltage |
| shielded, max. | 1 000 m; 200 m for voltage measurement |
| Measurement principle | integrating (Sigma-Delta) |
| Resolution with overrange (bit including sign), max. | 16 bit |
| Integration time, parameterizable | Yes |
| Interference voltage suppression for interference frequency f1 in Hz | 16.6 / 50 / 60 Hz |
| Conversion time (per channel) | 180 / 60 / 50 ms |
| Number of smoothing levels | 4; None; 4/8/16 times |
| parameterizable | Yes |
| for voltage measurement | Yes |
| for current measurement as 2-wire transducer | Yes |
| — Burden of 2-wire transmitter, max. | 650 Ω |
| for current measurement as 4-wire transducer | No |
| Linearity error (relative to input range), (+/-) | 0.01 % |
| Temperature error (relative to input range), (+/-) | 0.005 %/K |
| Crosstalk between the inputs, min. | 50 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.05 % |
| Voltage, relative to input range, (+/-) | 0.5 %0.3 % |
| Current, relative to input range, (+/-) | 0.5 %0.3 % |
| Series mode interference (peak value of interference < rated value of input range), min. | 70 dB |
| Common mode voltage, max. | 10 V |
| Common mode interference, min. | 90 dB |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Limit value alarm | No |
| Monitoring the supply voltage | Yes |
| Wire-break | Yes; at 4 to 20 mA |
| Short-circuit | Yes; with 1 to 5 V or 2-wire mode: Short-circuit of the encoder supply to ground or of an input to the encoder supply |
| Group error | Yes |
| Overflow/underflow | Yes |
| Monitoring of the supply voltage (PWR-LED) | Yes; green LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | No |
| for module diagnostics | Yes; green/red LED |
| between the channels | Yes; channel group-specific between 2-wire current input group and voltage input group |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes; only for voltage inputs |
| between the inputs (UCM) | 10 V DC |
| Isolation tested with | 707 V DC (type test) |
| Suitable for applications according to AMS 2750 | Yes; Declaration of Conformity, see online support entry 109757262 |
| Suitable for applications according to CQI-9 | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 9.32 kg |
| — global warming potential, (during production) [CO2 eq] | 4.97 kg |
| — global warming potential, (during operation) [CO2 eq] | 4.79 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.449 kg |
| horizontal installation, min. | -30 °C; < 0 °C as of FS02 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; < 0 °C as of FS02 |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| dew point, min. | -60 °C; suitable for dry room applications |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 31 g |
