Siemens 6ES7134-6HB00-0DA1
Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 6ES7134-6HB00-0DA1

SKU: PL26842519790
MPN: 6ES7134-6HB00-0DA1

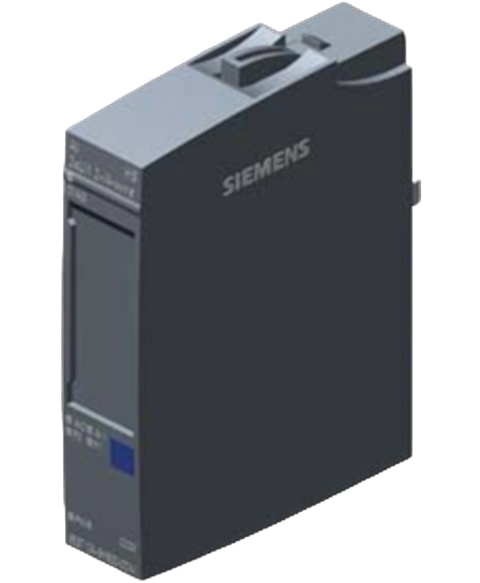

Siemens 6ES7134-6HB00-0DA1 analog input module, 2-channel, ET200SP.

This Siemens 6ES7134-6HB00-0DA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26842519790.

Brand New - 12 Months Warranty
$522.55 (inc. GST)
In Stock
Product type designation AI 2xU/I 2-/4-wire HS
HW functional status from FS21
Firmware version V2.0.3
FW update possible Yes
usable BaseUnits BU type A0, A1
Color code for module-specific color-coded label CC00
I&M data Yes; I&M0 to I&M3
Isochronous mode Yes; 125 µs
Measuring range scalable No
Scalable measured values No
Adjustment of measuring range No
STEP 7 TIA Portal configurable/integrated from version V13 SP1
STEP 7 configurable/integrated from version V5.5 SP3 / -
PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher
PROFINET from GSD version/GSD revision GSDML V2.3
Oversampling Yes; 2 channels per module
MSI No
Reparameterization possible in RUN No
Calibration possible in RUN No
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Current consumption (rated value) 39 mA; without sensor supply
24 V Yes; For current measurement
Short-circuit protection Yes
Output current, max. 20 mA; max. 50 mA per channel for a duration < 10 s
Power loss, typ. 0.95 W; without sensor supply
Address space per module, max. 4 byte; + 1 byte for QI information (32 bytes in the oversampling operating mode)
Automatic encoding Yes
Mechanical coding element Yes
Type of mechanical coding element Type A
2-wire connection BU type A0, A1
4-wire connection BU type A0, A1
Number of analog inputs 2; Differential inputs
For current measurement 2
For voltage measurement 2
permissible input voltage for voltage input (destruction limit), max. 30 V
permissible input current for current input (destruction limit), max. 50 mA
Cycle time (all channels), min. 125 µs
Analog input with oversampling Yes
Values per cycle, max. 16
Resolution, min. 50 µs
0 to +10 V Yes; 15 bit
— Input resistance (0 to 10 V) 75 kΩ
1 V to 5 V Yes; 13 bit
— Input resistance (1 V to 5 V) 75 kΩ
-10 V to +10 V Yes; 16 bit incl. sign
— Input resistance (-10 V to +10 V) 75 kΩ
-5 V to +5 V Yes; 15 bit incl. sign
— Input resistance (-5 V to +5 V) 75 kΩ
0 to 20 mA Yes; 15 bit
— Input resistance (0 to 20 mA) 130 Ω
-20 mA to +20 mA Yes; 16 bit incl. sign
— Input resistance (-20 mA to +20 mA) 130 Ω
4 mA to 20 mA Yes; 14 bit
— Input resistance (4 mA to 20 mA) 130 Ω
shielded, max. 1 000 m; 200 m for voltage measurement
Measurement principle Actual value encryption (successive approximation)
Resolution with overrange (bit including sign), max. 16 bit
Interference voltage suppression for interference frequency f1 in Hz No
Conversion time (per channel) 10 µs
Number of smoothing levels 7; none; 2-/4-/8-/16-/32-/64-fold
parameterizable Yes
for voltage measurement Yes
for current measurement as 2-wire transducer Yes
— Burden of 2-wire transmitter, max. 650 Ω
for current measurement as 4-wire transducer Yes
Linearity error (relative to input range), (+/-) 0.03 %
Temperature error (relative to input range), (+/-) 0.01 %/K
Crosstalk between the inputs, min. -50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.1 %
Voltage, relative to input range, (+/-) 0.3 %0.2 %
Current, relative to input range, (+/-) 0.3 %0.2 %
Common mode voltage, max. 35 V
Common mode interference, min. 90 dB
Filtering and processing time (TCI), min. 80 µs
Bus cycle time (TDP), min. 125 µs; Starting from firmware Version V2.0.1
Diagnostic alarm Yes
Limit value alarm Yes; two upper and two lower limit values in each case
Wire-break Yes; channel-by-channel, at 4 to 20 mA only
Short-circuit Yes; channel-by-channel, at 1 to 5 V or for current measuring ranges short-circuit in encoder supply
Group error Yes
Overflow/underflow Yes; channel by channel
Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Channel status display Yes; green LED
for channel diagnostics Yes; red LED
for module diagnostics Yes; green/red DIAG LED
between the channels Yes
between the channels and backplane bus Yes
between the channels and the power supply of the electronics Yes
Isolation tested with 707 V DC (type test)
environmental product declaration Yes
— global warming potential, (total) [CO2 eq] 9.32 kg
— global warming potential, (during production) [CO2 eq] 4.97 kg
— global warming potential, (during operation) [CO2 eq] 4.79 kg
— global warming potential, (after end of life cycle) [CO2 eq] -0.449 kg
horizontal installation, min. -30 °C; < 0 °C as of FS07
horizontal installation, max. 60 °C
vertical installation, min. -30 °C; < 0 °C as of FS07
vertical installation, max. 50 °C
Installation altitude above sea level, max. 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual
Width 15 mm
Height 73 mm
Depth 58 mm
Weight, approx. 32 g
