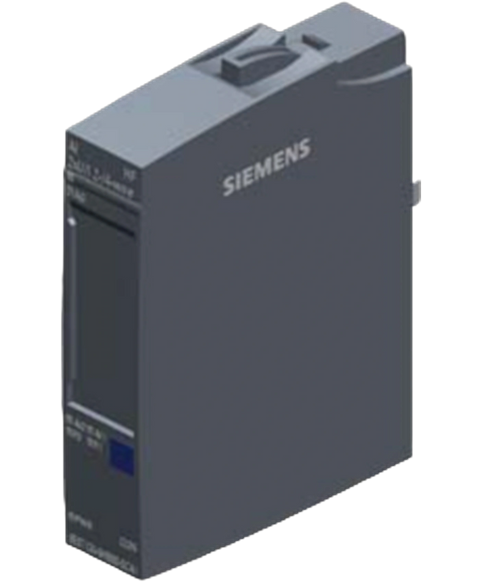

Siemens 6ES7134-6HB00-0CA1
The Siemens 6ES7134-6HB00-0CA1 is an analog input module designed for precision in diverse industrial applications. It supports a supply voltage of 24 Volts DC, with permissible limits ranging from 19.2 to 28.8 Volts DC, ensuring versatility in various setups.
This Siemens 6ES7134-6HB00-0CA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805330335.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$525.39
(inc. GST)
In Stock
| Product type designation | AI 2xU/I 2-/4-wire HF |
| HW functional status | From FS06 |
| FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color-coded label | CC03 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | Yes; 250 µs |
| Measuring range scalable | No |
| STEP 7 TIA Portal configurable/integrated from version | V13 |
| STEP 7 configurable/integrated from version | V5.5 / - |
| PCS 7 configurable/integrated from version | V8.1 SP1 |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Oversampling | No |
| MSI | Yes |
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | Yes |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption (rated value) | 39 mA; without sensor supply |
| 24 V | Yes |
| Short-circuit protection | YesYes; channel by channel |
| Output current, max. | 20 mA; max. 50 mA per channel for a duration < 10 s (two-wire)100 mA; max. 150 mA for a duration of < 10 s (four-wire) |
| Power loss, typ. | 0.95 W; without sensor supply |
| Address space per module, max. | 4 byte; + 4 byte for scaling of measured values, + 1 byte for QI information |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | Type A |
| 2-wire connection | BU type A0, A1 |
| 4-wire connection | BU type A0, A1 |
| Number of analog inputs | 2; Differential inputs |
| For current measurement | 2 |
| For voltage measurement | 2 |
| permissible input voltage for voltage input (destruction limit), max. | 30 V |
| permissible input current for current input (destruction limit), max. | 50 mA |
| Analog input with oversampling | No |
| Standardization of measured values | Yes |
| 0 to +10 V | Yes; 15 bit |
| — Input resistance (0 to 10 V) | 75 kΩ |
| 1 V to 5 V | Yes; 15 bit |
| — Input resistance (1 V to 5 V) | 75 kΩ |
| -10 V to +10 V | Yes; 16 bit incl. sign |
| — Input resistance (-10 V to +10 V) | 75 kΩ |
| -5 V to +5 V | Yes; 16 bit incl. sign |
| — Input resistance (-5 V to +5 V) | 75 kΩ |
| 0 to 20 mA | Yes; 15 bit |
| — Input resistance (0 to 20 mA) | 130 Ω |
| -20 mA to +20 mA | Yes; 16 bit incl. sign |
| — Input resistance (-20 mA to +20 mA) | 130 Ω |
| 4 mA to 20 mA | Yes; 15 bit |
| — Input resistance (4 mA to 20 mA) | 130 Ω |
| shielded, max. | 1 000 m; 200 m for voltage measurement |
| Measurement principle | Sigma Delta |
| Resolution with overrange (bit including sign), max. | 16 bit |
| Integration time, parameterizable | Yes |
| Integration time (ms) | 67.5 / 22.5 / 18.75 / 10 / 5 / 2.5 / 1.25 / 0.625 ms |
| Basic conversion time, including integration time (ms) | 68.03 / 22.83 / 19.03 / 10.28 / 5.23 / 2.68 / 1.43 / 0.730 ms |
| Interference voltage suppression for interference frequency f1 in Hz | 16.6 / 50 / 60 / 300 / 600 / 1 200 / 2 400 / 4 800 |
| Conversion time (per channel) | 68.2 / 23 / 19.2 / 10.45 / 5.40 / 2.85 / 1.6 / 0.9 ms |
| Basic execution time of the module (all channels released) | 1 ms |
| Number of smoothing levels | 6; none; 2-/4-/8-/16-/32-fold |
| parameterizable | Yes |
| for voltage measurement | Yes |
| for current measurement as 2-wire transducer | Yes |
| — Burden of 2-wire transmitter, max. | 650 Ω |
| for current measurement as 4-wire transducer | Yes |
| Linearity error (relative to input range), (+/-) | 0.01 % |
| Temperature error (relative to input range), (+/-) | 0.003 %/K |
| Crosstalk between the inputs, min. | -50 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.01 % |
| Voltage, relative to input range, (+/-) | 0.1 %0.05 %; 0.1 % at SFU 4.8 kHz |
| Current, relative to input range, (+/-) | 0.1 %0.05 %; 0.1 % at SFU 4.8 kHz |
| Common mode voltage, max. | 35 V |
| Common mode interference, min. | 90 dB |
| Filtering and processing time (TCI), min. | 800 µs |
| Bus cycle time (TDP), min. | 1 ms |
| Jitter, max. | 5 µs |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Limit value alarm | Yes; two upper and two lower limit values in each case |
| Monitoring the supply voltage | Yes |
| Wire-break | Yes; Measuring range 4 to 20 mA only |
| Short-circuit | Yes; channel-by-channel, at 1 to 5 V or for short-circuit in encoder supply |
| Group error | Yes |
| Overflow/underflow | Yes |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | Yes; red LED |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | Yes |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 707 V DC (type test) |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 9.32 kg |
| — global warming potential, (during production) [CO2 eq] | 4.97 kg |
| — global warming potential, (during operation) [CO2 eq] | 4.79 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.449 kg |
| horizontal installation, min. | -30 °C; < 0 °C as of FS06 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; < 0 °C as of FS06 |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 32 g |
