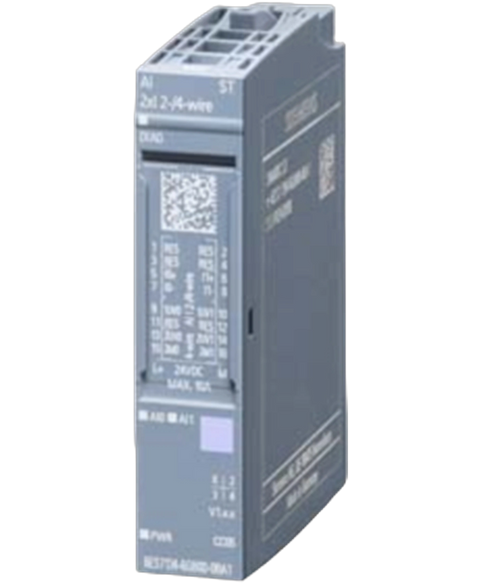

Siemens 6ES7134-6GB00-0BA1
With a focus on signal processing, the Siemens 6ES7134-6GB00-0BA1 serves as an analog input module within the SIMATIC series. This module accommodates two analog inputs and requires a rated voltage of 24 V DC for operation.
This Siemens 6ES7134-6GB00-0BA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Distributed io range and is referenced internally as PartLogic SKU PL26805679401.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$363.51
(inc. GST)
In Stock
| Product type designation | AI 2xI 2-/4-wire ST |
| HW functional status | from FS04 |
| FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color-coded label | CC05 |
| I&M data | Yes; I&M0 to I&M3 |
| Isochronous mode | No |
| Measuring range scalable | No |
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 |
| STEP 7 configurable/integrated from version | V5.5 SP3 |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| PROFINET from GSD version/GSD revision | V2.3 / - |
| Oversampling | No |
| MSI | No |
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption, max. | 45 mA; without sensor supply |
| 24 V | Yes |
| Short-circuit protection | YesYes; Module-wise |
| Output current, max. | 50 mA; Total current for both channels (two-wire)200 mA; Total current for both channels (four-wire) |
| Power loss, typ. | 1.1 W |
| Address space per module, max. | 4 byte; + 1 byte for QI information |
| Automatic encoding | Yes |
| Mechanical coding element | Yes |
| Type of mechanical coding element | Type A |
| 1-wire connection | BU type A0, A1 |
| 2-wire connection | BU type A0, A1 |
| 4-wire connection | BU type A0, A1 |
| Number of analog inputs | 2 |
| For current measurement | 2 |
| permissible input current for current input (destruction limit), max. | 50 mA |
| Cycle time (all channels), min. | 500 µs |
| 0 to 20 mA | Yes; 15 bit |
| — Input resistance (0 to 20 mA) | 130 Ω; 90 ohms with two wires |
| -20 mA to +20 mA | Yes; 16 bit incl. sign |
| — Input resistance (-20 mA to +20 mA) | 130 Ω |
| 4 mA to 20 mA | Yes; 15 bit |
| — Input resistance (4 mA to 20 mA) | 130 Ω; 90 ohms with two wires |
| shielded, max. | 1 000 m |
| Measurement principle | Sigma Delta |
| Resolution with overrange (bit including sign), max. | 16 bit |
| Integration time, parameterizable | Yes |
| Interference voltage suppression for interference frequency f1 in Hz | 16.6 / 50 / 60 Hz / off |
| Conversion time (per channel) | 50 ms @ 60 Hz, 60 ms @ 50 Hz, 180 ms @ 16.6 Hz, 500 µs without filter |
| Number of smoothing levels | 4 |
| parameterizable | Yes |
| Step: None | Yes; 1x conversion time |
| Step: low | Yes; 4x conversion time |
| Step: Medium | Yes; 8x conversion time |
| Step: High | Yes; 16x conversion time |
| for current measurement as 2-wire transducer | Yes |
| — Burden of 2-wire transmitter, max. | 650 Ω |
| for current measurement as 4-wire transducer | Yes |
| Linearity error (relative to input range), (+/-) | 0.01 % |
| Temperature error (relative to input range), (+/-) | 0.005 %/K |
| Crosstalk between the inputs, min. | -50 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.05 % |
| Current, relative to input range, (+/-) | 0.5 %0.3 % |
| Series mode interference (peak value of interference < rated value of input range), min. | 70 dB |
| Common mode voltage, max. | 10 V |
| Common mode interference, min. | 90 dB |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Limit value alarm | No |
| Monitoring the supply voltage | Yes |
| Wire-break | Yes; at 4 to 20 mA |
| Short-circuit | Yes; Short-circuit of the encoder supply |
| Group error | Yes |
| Overflow/underflow | Yes |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | No |
| for module diagnostics | Yes; green/red DIAG LED |
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | Yes |
| between the inputs (UCM) | 10 Vpp |
| Isolation tested with | 707 V DC (type test) |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 9.32 kg |
| — global warming potential, (during production) [CO2 eq] | 4.97 kg |
| — global warming potential, (during operation) [CO2 eq] | 4.79 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -0.449 kg |
| horizontal installation, min. | -30 °C; < 0 °C as of FS04 |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | -30 °C; < 0 °C as of FS04 |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| dew point, min. | -60 °C; suitable for dry room applications |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 32 g |
